X3D XML Schema x3d-4.0.xsd


schema location ..\x3d-4.0.xsd
attributeFormDefault unqualified
elementFormDefault qualified

Elements  Groups  Complex types  Simple types  Attr. groups
AcousticProperties  AppearanceChildContentModel  X3DAppearanceChildNode  accessTypeChoices  DEF_USE
Analyser  AppearanceChildContentModelNoProtoInstance  X3DAppearanceNode  alphaModeChoices  globalAttributes
Anchor  AudioGraphContentModel  X3DArrayField  appliedParametersChoices
Appearance  ChildContentModel  X3DBackgroundNode  bboxSizeType
Arc2D  ChildContentModelCore  X3DBindableNode  biquadTypeFilterChoices
ArcClose2D  ChildContentModelDIS  X3DBoundedObject  channelCountModeChoices
AudioClip  ChildContentModelFull  X3DChaserNode  channelInterpretationChoices
AudioDestination  ChildContentModelGeoSpatial  X3DChildNode  closureTypeChoices
Background  ChildContentModelHumanoidAnimation  X3DColorNode  componentNameChoices
BallJoint  ChildContentModelImmersive  X3DComposableVolumeRenderStyleNode  containerFieldChoicesAudioClip
Billboard  ChildContentModelInteractive  X3DComposedGeometryNode  containerFieldChoicesAudioGraph
BiquadFilter  ChildContentModelInterchange  X3DCoordinateNode  containerFieldChoicesColor
BlendedVolumeStyle  ChildContentModelNurbs  X3DDamperNode  containerFieldChoicesDISEntityTypeMapping
BooleanFilter  ChildContentModelProtoInstance  X3DDragSensorNode  containerFieldChoicesGroupLODShapeTransformSwitch
BooleanSequencer  ChildContentModelSceneGraphStructure  X3DEnvironmentalSensorNode  containerFieldChoicesHAnimJoint
BooleanToggle  ColorCoordinateContentModel  X3DEnvironmentTextureNode  containerFieldChoicesHAnimMotion
BooleanTrigger  ColorCoordinateNormalTexCoordContentModel  X3DField  containerFieldChoicesHAnimSegment
BoundaryEnhancementVolumeStyle  ColorNormalTexCoordContentModel  X3DFogObject  containerFieldChoicesHAnimSite
BoundedPhysicsModel  ComposedGeometryContentModel  X3DFollowerNode  containerFieldChoicesMetadata
Box  GeometryContentModel  X3DFontStyleNode  containerFieldChoicesPackagedShader
BufferAudioSource  GeometryContentModel2D  X3DGeometricPropertyNode  containerFieldChoicesShaderPart
CADAssembly  GeometryContentModel2DImmersive  X3DGeometryNode  containerFieldChoicesSoundSource
CADFace  GeometryContentModelCAD  X3DGroupingNode  containerFieldChoicesTextureCoordinate
CADLayer  GeometryContentModelGeoSpatial  X3DInfoNode  containerFieldChoicesX3DCoordinateNode
CADPart  GeometryContentModelImmersive  X3DInterpolatorNode  containerFieldChoicesX3DNormalNode
CartoonVolumeStyle  GeometryContentModelInteractive  X3DKeyDeviceSensorNode  containerFieldChoicesX3DTexture2DNode
ChannelMerger  GeometryContentModelInterchange  X3DLayerNode  containerFieldChoicesX3DTexture3DNode
ChannelSelector  GeometryContentModelNurbs  X3DLayoutNode  containerFieldChoicesX3DUrlObject
ChannelSplitter  GroupingNodeChildContentModel  X3DLightNode  containerFieldChoicesX3dUrlObjectTexture
Circle2D  LayoutGroupContentModel  X3DMaterialNode  distanceModelChoices
ClipPlane  LoadSensorChildContentModel  X3DMetadataObject  fieldTypeChoices
CollidableOffset  PickSensorGroupingNodeContentModel  X3DNBodyCollidableNode  fogTypeChoices
CollidableShape  RigidBodyCollectionContentModel  X3DNBodyCollisionSpaceNode  fontFamilyValues
Collision  RigidBodyContentModel  X3DNetworkSensorNode  fontStyleChoices
CollisionCollection  RigidJointNodeContentModel  X3DNode  forceOutputValues
CollisionSensor  SceneGraphFragmentContentModel  X3DNodeMixedContent  generatedCubeMapTextureUpdateChoices
CollisionSpace  SceneGraphFragmentWithPrototypeDeclarationsContentModel  X3DNormalNode  geoMetadataSummaryKeyValues
Color  ShapeChildContentModel  X3DNurbsControlCurveNode  geoSystemEarthEllipsoidValues
ColorChaser  SoundChildContentModel  X3DNurbsSurfaceGeometryNode  geoSystemSpatialReferenceFrameValues
ColorDamper  TextChildContentModel  X3DOneSidedMaterialNode  geoSystemType
ColorInterpolator  Texture2DContentModel  X3DParametricGeometryNode  hanimFeaturePointNameValues
ColorRGBA  Texture3DContentModel  X3DParticleEmitterNode  hanimHumanoidInfoKeyValues
component  TextureBackgroundChildContentModel  X3DParticlePhysicsModelNode  hanimJointNameValues
ComposedCubeMapTexture  TextureContentModel  X3DPickableObject  hanimSegmentNameValues
ComposedShader  VolumeRenderStyleContentModel  X3DPickSensorNode  hanimVersionChoices
ComposedTexture3D  X3DPointingDeviceSensorNode  hatchStyleValues
ComposedVolumeStyle  X3DProductStructureChildNode  initializeOnlyAccessTypes
Cone  X3DProgrammableShaderObject  inputOnlyAccessTypes
ConeEmitter  X3DPrototypeInstance  inputOutputAccessTypes
connect  X3DRigidJointNode  intersectionTypeValues
Contact  X3DScriptNode  justifyChoices
Contour2D  X3DSensorNode  layoutAlignChoices
ContourPolyline2D  X3DSequencerNode  layoutScaleModeChoices
Convolver  X3DShaderNode  layoutUnitsChoices
Coordinate  X3DShapeNode  lineTypeValues
CoordinateChaser  X3DSingleTextureCoordinateNode  loaType
CoordinateDamper  X3DSingleTextureNode  metaDirectionChoices
CoordinateDouble  X3DSingleTextureTransformNode  metaNameValues
CoordinateInterpolator  X3DSoundChannelNode  MFBool
CoordinateInterpolator2D  X3DSoundDestinationNode  MFColor
Cylinder  X3DSoundNode  MFColorRGBA
CylinderSensor  X3DSoundProcessingNode  MFDouble
Delay  X3DSoundSourceNode  MFFloat
DirectionalLight  X3DStatement  MFImage
DISEntityManager  X3DTexture2DNode  MFInt32
DISEntityTypeMapping  X3DTexture3DNode  MFMatrix3d
Disk2D  X3DTextureCoordinateNode  MFMatrix3f
DoubleAxisHingeJoint  X3DTextureNode  MFMatrix4d
DynamicsCompressor  X3DTextureProjectorNode  MFMatrix4f
EaseInEaseOut  X3DTextureTransformNode  MFNode
EdgeEnhancementVolumeStyle  X3DTimeDependentNode  MFRotation
ElevationGrid  X3DTouchSensorNode  MFString
EspduTransform  X3DTriggerNode  MFTime
ExplosionEmitter  X3DUrlObject  MFVec2d
EXPORT  X3DVertexAttributeNode  MFVec2f
ExternProtoDeclare  X3DViewpointNode  MFVec3d
Extrusion  X3DViewportNode  MFVec3f
field  X3DVolumeDataNode  MFVec4d
fieldValue  X3DVolumeRenderStyleNode  MFVec4f
FillProperties  multiTextureFunctionValues
FloatVertexAttribute  multiTextureModeValues
Fog  multiTextureSourceValues
FogCoordinate  navigationTransitionTypeValues
FontStyle  navigationTypeValues
ForcePhysicsModel  networkModeChoices
Gain  outputOnlyAccessTypes
GeneratedCubeMapTexture  particleSystemGeometryTypeValues
GeoCoordinate  periodicWaveTypeChoices
GeoElevationGrid  phaseFunctionValues
GeoLocation  pickableObjectTypeValues
GeoLOD  pickSensorMatchCriterionChoices
GeoMetadata  pickSensorSortOrderValues
GeoOrigin  profileNameChoices
GeoPositionInterpolator  projectionVolumeStyleTypeChoices
GeoProximitySensor  SFBool
GeoTouchSensor  SFColor
GeoTransform  SFColorRGBA
GeoViewpoint  SFDouble
Group  SFFloat
HAnimDisplacer  SFImage
HAnimHumanoid  SFInt32
HAnimJoint  SFMatrix3d
HAnimMotion  SFMatrix3f
HAnimSegment  SFMatrix4d
HAnimSite  SFMatrix4f
head  SFNode
ImageCubeMapTexture  SFRotation
ImageTexture  SFString
ImageTexture3D  SFTime
IMPORT  SFVec2d
IndexedFaceSet  SFVec2f
IndexedLineSet  SFVec3d
IndexedQuadSet  SFVec3f
IndexedTriangleFanSet  SFVec4d
IndexedTriangleSet  SFVec4f
IndexedTriangleStripSet  shaderLanguageValues
Inline  shaderPartTypeValues
IntegerSequencer  textureBoundaryModeChoices
IntegerTrigger  textureCompressionModeChoices
IS  textureCoordinateGeneratorModeChoices
IsoSurfaceVolumeData  textureMagnificationModeChoices
KeySensor  textureMinificationModeChoices
Layer  unitCategoryChoices
LayerSet  unitIntervalType
Layout  volumeRenderingWeightFunctionChoices
LayoutGroup  waveShaperOversampleChoices
LayoutLayer  x3dVersionChoices
LinePickSensor
LineProperties
LineSet
ListenerPointSource
LoadSensor
LocalFog
LOD
Material
Matrix3VertexAttribute
Matrix4VertexAttribute
meta
MetadataBoolean
MetadataDouble
MetadataFloat
MetadataInteger
MetadataSet
MetadataString
MicrophoneSource
MotorJoint
MovieTexture
MultiTexture
MultiTextureCoordinate
MultiTextureTransform
NavigationInfo
Normal
NormalInterpolator
NurbsCurve
NurbsCurve2D
NurbsOrientationInterpolator
NurbsPatchSurface
NurbsPositionInterpolator
NurbsSet
NurbsSurfaceInterpolator
NurbsSweptSurface
NurbsSwungSurface
NurbsTextureCoordinate
NurbsTrimmedSurface
OpacityMapVolumeStyle
OrientationChaser
OrientationDamper
OrientationInterpolator
OrthoViewpoint
OscillatorSource
PackagedShader
ParticleSystem
PeriodicWave
PhysicalMaterial
PickableGroup
PixelTexture
PixelTexture3D
PlaneSensor
PointEmitter
PointLight
PointPickSensor
PointProperties
PointSet
Polyline2D
PolylineEmitter
Polypoint2D
PositionChaser
PositionChaser2D
PositionDamper
PositionDamper2D
PositionInterpolator
PositionInterpolator2D
PrimitivePickSensor
ProgramShader
ProjectionVolumeStyle
ProtoBody
ProtoDeclare
ProtoInstance
ProtoInterface
ProximitySensor
QuadSet
ReceiverPdu
Rectangle2D
RigidBody
RigidBodyCollection
ROUTE
ScalarChaser
ScalarDamper
ScalarInterpolator
Scene
ScreenFontStyle
ScreenGroup
Script
SegmentedVolumeData
ShadedVolumeStyle
ShaderPart
ShaderProgram
Shape
SignalPdu
SilhouetteEnhancementVolumeStyle
SingleAxisHingeJoint
SliderJoint
Sound
SpatialSound
Sphere
SphereSensor
SplinePositionInterpolator
SplinePositionInterpolator2D
SplineScalarInterpolator
SpotLight
SquadOrientationInterpolator
StaticGroup
StreamAudioDestination
StreamAudioSource
StringSensor
SurfaceEmitter
Switch
TexCoordChaser2D
TexCoordDamper2D
Text
TextureBackground
TextureCoordinate
TextureCoordinate3D
TextureCoordinate4D
TextureCoordinateGenerator
TextureProjector
TextureProjectorParallel
TextureProperties
TextureTransform
TextureTransform3D
TextureTransformMatrix3D
TimeSensor
TimeTrigger
ToneMappedVolumeStyle
TouchSensor
Transform
TransformSensor
TransmitterPdu
TriangleFanSet
TriangleSet
TriangleSet2D
TriangleStripSet
TwoSidedMaterial
unit
UniversalJoint
UnlitMaterial
Viewpoint
ViewpointGroup
Viewport
VisibilitySensor
VolumeData
VolumeEmitter
VolumePickSensor
WaveShaper
WindPhysicsModel
WorldInfo
X3D


schema location ..\x3d-4.0-Web3dExtensionsPublic.xsd
attributeFormDefault unqualified
elementFormDefault qualified

Elements  Simple types
XvlShell  XvlShell.shellTypes


schema location ..\x3d-4.0-Web3dExtensionsPrivate.xsd
attributeFormDefault unqualified
elementFormDefault qualified



schema location ..\..\..\..\ProgramData\Altova\Common2023\Schemas\xmldsig\files\xmldsig-core-schema.xsd
attributeFormDefault
elementFormDefault qualified
targetNamespace http://www.w3.org/2000/09/xmldsig#

Elements  Complex types  Simple types
CanonicalizationMethod  CanonicalizationMethodType  CryptoBinary
DigestMethod  DigestMethodType  DigestValueType
DigestValue  DSAKeyValueType  HMACOutputLengthType
DSAKeyValue  KeyInfoType
KeyInfo  KeyValueType
KeyName  ManifestType
KeyValue  ObjectType
Manifest  PGPDataType
MgmtData  ReferenceType
Object  RetrievalMethodType
PGPData  RSAKeyValueType
Reference  SignatureMethodType
RetrievalMethod  SignaturePropertiesType
RSAKeyValue  SignaturePropertyType
Signature  SignatureType
SignatureMethod  SignatureValueType
SignatureProperties  SignedInfoType
SignatureProperty  SPKIDataType
SignatureValue  TransformsType
SignedInfo  TransformType
SPKIData  X509DataType
Transform  X509IssuerSerialType
Transforms
X509Data


element AcousticProperties

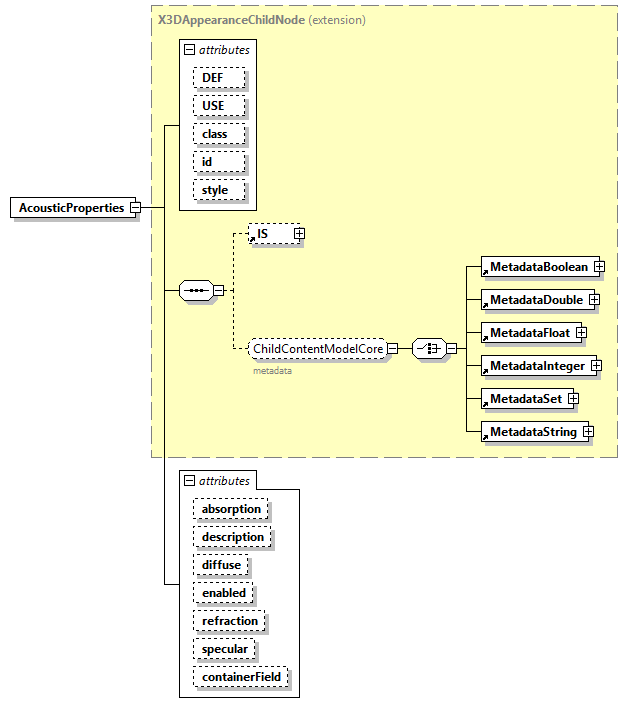

diagram x3d-4.0_diagrams/x3d-4.0_p1.png
type extension of X3DAppearanceChildNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group AppearanceChildContentModelNoProtoInstance
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

absorption  derived by: SFFloat    0
description  SFString
diffuse  derived by: SFFloat    0
enabled  SFBool    true
refraction  derived by: SFFloat    0
specular  derived by: SFFloat    0
containerField  xs:NMTOKEN    acousticProperties
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>
source <xs:element name="AcousticProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/shape.html#AcousticProperties"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DAppearanceChildNode">

<xs:attribute name="absorption" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="description" type="SFString"/>

<xs:attribute name="diffuse" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="enabled" type="SFBool" default="true"/>

<xs:attribute name="refraction" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="specular" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="acousticProperties"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute AcousticProperties/@absorption
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="absorption" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AcousticProperties/@description
type SFString
source <xs:attribute name="description" type="SFString"/>

attribute AcousticProperties/@diffuse
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="diffuse" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AcousticProperties/@enabled
type SFBool
properties
default true
source <xs:attribute name="enabled" type="SFBool" default="true"/>

attribute AcousticProperties/@refraction
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="refraction" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AcousticProperties/@specular
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="specular" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AcousticProperties/@containerField
type xs:NMTOKEN
properties
default acousticProperties
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="acousticProperties"/>

element Analyser
diagram x3d-4.0_diagrams/x3d-4.0_p2.png
type extension of X3DSoundProcessingNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Analyser AudioClip AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource MovieTexture OscillatorSource Sound SpatialSound StreamAudioDestination StreamAudioSource WaveShaper ProtoInstance
used by
groups AudioGraphContentModel ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
channelCountMode  channelCountModeChoices    MAX
channelInterpretation  channelInterpretationChoices    SPEAKERS
enabled  SFBool    true
gain  SFFloat    1
tailTime  derived by: SFTime    0
fftSize  derived by: SFInt32    2048
frequencyBinCount  derived by: SFInt32    1024
minDecibels  SFFloat    -100
maxDecibels  SFFloat    -30
smoothingTimeConstant  derived by: SFFloat    0.8
containerField  containerFieldChoicesAudioGraph    children
annotation
appinfo
<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="Analyser">

<xs:annotation>

<xs:appinfo>

<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/sound.html#Analyser"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DSoundProcessingNode">

<xs:attribute name="fftSize" default="2048">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="frequencyBinCount" default="1024">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="minDecibels" type="SFFloat" default="-100"/>

<xs:attribute name="maxDecibels" type="SFFloat" default="-30"/>

<xs:attribute name="smoothingTimeConstant" default="0.8">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Analyser/@fftSize
type restriction of SFInt32
properties
default 2048
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="fftSize" default="2048">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Analyser/@frequencyBinCount
type restriction of SFInt32
properties
default 1024
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="frequencyBinCount" default="1024">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Analyser/@minDecibels
type SFFloat
properties
default -100
source <xs:attribute name="minDecibels" type="SFFloat" default="-100"/>

attribute Analyser/@maxDecibels
type SFFloat
properties
default -30
source <xs:attribute name="maxDecibels" type="SFFloat" default="-30"/>

attribute Analyser/@smoothingTimeConstant
type restriction of SFFloat
properties
default 0.8
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="smoothingTimeConstant" default="0.8">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Analyser/@containerField
type containerFieldChoicesAudioGraph
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
provide inputs to parent (X3DSoundChannelNode, X3DSoundDestinationNode, X3DSoundProcessingNode) as part of audio graph, otherwise standalone as childe in scene graph
enumeration outputs
appinfo
parent node is ChannelSplitter, which is providing single-channel signal input to this node
enumeration source
appinfo
parent node is Sound node: legacy X3D3 SFNode source is allowed content model (AudioClip or MovieTexture only), prefer X3D4 MFNode children.
source <xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>

element Anchor
diagram x3d-4.0_diagrams/x3d-4.0_p3.png
type extension of X3DGroupingNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D ClipPlane EaseInEaseOut LinePickSensor PickableGroup PointPickSensor PrimitivePickSensor VolumePickSensor SplinePositionInterpolator SplinePositionInterpolator2D SplineScalarInterpolator SquadOrientationInterpolator StaticGroup TextureProjector TextureProjectorParallel CADAssembly CADLayer CADPart OrthoViewpoint ViewpointGroup ColorChaser ColorDamper CoordinateChaser CoordinateDamper OrientationChaser OrientationDamper PositionChaser PositionChaser2D PositionDamper PositionDamper2D ScalarChaser ScalarDamper TexCoordChaser2D TexCoordDamper2D TextureBackground CollidableShape CollisionSensor RigidBodyCollection ParticleSystem TransformSensor IsoSurfaceVolumeData SegmentedVolumeData VolumeData Analyser AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource OscillatorSource SpatialSound StreamAudioDestination StreamAudioSource WaveShaper EspduTransform ReceiverPdu SignalPdu TransmitterPdu DISEntityManager GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoViewpoint GeoTransform HAnimHumanoid HAnimJoint HAnimSegment HAnimSite HAnimMotion NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by
element TransformSensor
groups ChildContentModelInteractive LoadSensorChildContentModel PickSensorGroupingNodeContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
bboxDisplay  SFBool    false
visible  SFBool    true
description  SFString
load  SFBool    true
autoRefresh  derived by: SFTime    0
autoRefreshTimeLimit  derived by: SFTime    3600
parameter  MFString
url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
containerField  containerFieldChoicesX3DUrlObject    children
annotation
appinfo
<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="Anchor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/networking.html#Anchor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGroupingNode">

<xs:attribute name="description" type="SFString"/>

<xs:attribute name="load" type="SFBool" default="true"/>

<xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="parameter" type="MFString"/>

<xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="containerFieldChoicesX3DUrlObject" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Anchor/@description
type SFString
source <xs:attribute name="description" type="SFString"/>

attribute Anchor/@load
type SFBool
properties
default true
source <xs:attribute name="load" type="SFBool" default="true"/>

attribute Anchor/@autoRefresh
type restriction of SFTime
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Anchor/@autoRefreshTimeLimit
type restriction of SFTime
properties
default 3600
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Anchor/@parameter
type MFString
source <xs:attribute name="parameter" type="MFString"/>

attribute Anchor/@url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Anchor/@containerField
type containerFieldChoicesX3DUrlObject
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
parent node has abstract type X3DGroupingNode
enumeration children
appinfo
parent node is LoadSensor (formerly watchList in X3D3)
source <xs:attribute name="containerField" type="containerFieldChoicesX3DUrlObject" default="children"/>

element Appearance
diagram x3d-4.0_diagrams/x3d-4.0_p4.png
type extension of X3DAppearanceNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString AcousticProperties FillProperties LineProperties PointProperties Material PhysicalMaterial UnlitMaterial TwoSidedMaterial ComposedShader PackagedShader ProgramShader ComposedCubeMapTexture ComposedTexture3D ImageTexture ImageTexture3D MovieTexture MultiTexture PixelTexture PixelTexture3D GeneratedCubeMapTexture ImageCubeMapTexture MultiTextureTransform TextureTransform TextureTransform3D TextureTransformMatrix3D ProtoInstance
used by
groups SceneGraphFragmentContentModel ShapeChildContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

alphaCutoff  unitIntervalType    0.5
alphaMode  alphaModeChoices    AUTO
containerField  xs:NMTOKEN    appearance
annotation
appinfo
<xs:element name="acousticProperties" type="SFNode" fixed="inputOutputField" default="AcousticProperties">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="fillProperties" type="SFNode" fixed="inputOutputField" default="FillProperties">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="lineProperties" type="SFNode" fixed="inputOutputField" default="LineProperties">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="pointProperties" type="SFNode" fixed="inputOutputField" default="PointProperties">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="material" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/>
<xs:element name="shaders" type="MFNode" fixed="inputOutputField" default="X3DShaderNode">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="texture" type="SFNode" fixed="inputOutputField" default="X3DTextureNode"/>
<xs:element name="textureTransform" type="SFNode" fixed="inputOutputField" default="X3DTextureTransformNode">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Appearance">

<xs:annotation>

<xs:appinfo>

<xs:element name="acousticProperties" type="SFNode" fixed="inputOutputField" default="AcousticProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="fillProperties" type="SFNode" fixed="inputOutputField" default="FillProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="lineProperties" type="SFNode" fixed="inputOutputField" default="LineProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="pointProperties" type="SFNode" fixed="inputOutputField" default="PointProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="material" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/>

<xs:element name="shaders" type="MFNode" fixed="inputOutputField" default="X3DShaderNode">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="texture" type="SFNode" fixed="inputOutputField" default="X3DTextureNode"/>

<xs:element name="textureTransform" type="SFNode" fixed="inputOutputField" default="X3DTextureTransformNode">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/shape.html#Appearance"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DAppearanceNode">

<xs:attribute name="alphaCutoff" type="unitIntervalType" default="0.5"/>

<xs:attribute name="alphaMode" type="alphaModeChoices" default="AUTO"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="appearance"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Appearance/@alphaCutoff
type unitIntervalType
properties
default 0.5
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="alphaCutoff" type="unitIntervalType" default="0.5"/>

attribute Appearance/@alphaMode
type alphaModeChoices
properties
default AUTO
facets
Kind Value Annotation
enumeration AUTO
appinfo
Material transparency is applied to texture transparency
enumeration OPAQUE
appinfo
Ignore alpha channel texture transparency, opaque
enumeration MASK
appinfo
Alpha-testing mode for transparent when alpha value less than 0.5 and opaque when greater than or equal to 0.5
enumeration BLEND
appinfo
Blend combines partial transparency of textures and materials
source <xs:attribute name="alphaMode" type="alphaModeChoices" default="AUTO"/>

attribute Appearance/@containerField
type xs:NMTOKEN
properties
default appearance
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="appearance"/>

element Arc2D
diagram x3d-4.0_diagrams/x3d-4.0_p5.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group GeometryContentModel2D
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

radius  derived by: SFFloat    1
startAngle  derived by: SFFloat    0
appinfo
range +/- 2pi
endAngle  derived by: SFFloat    1.570796
appinfo
range +/- 2pi
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry2D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="Arc2D">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry2D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/geometry2D.html#Arc2D"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:attribute name="radius" default="1">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="startAngle" default="0">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="endAngle" default="1.570796">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Arc2D/@radius
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="radius" default="1">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Arc2D/@startAngle
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minExclusive -6.2832
maxExclusive 6.2832
annotation
appinfo
range +/- 2pi
source <xs:attribute name="startAngle" default="0">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Arc2D/@endAngle
type restriction of SFFloat
properties
default 1.570796
facets
Kind Value Annotation
minExclusive -6.2832
maxExclusive 6.2832
annotation
appinfo
range +/- 2pi
source <xs:attribute name="endAngle" default="1.570796">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Arc2D/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

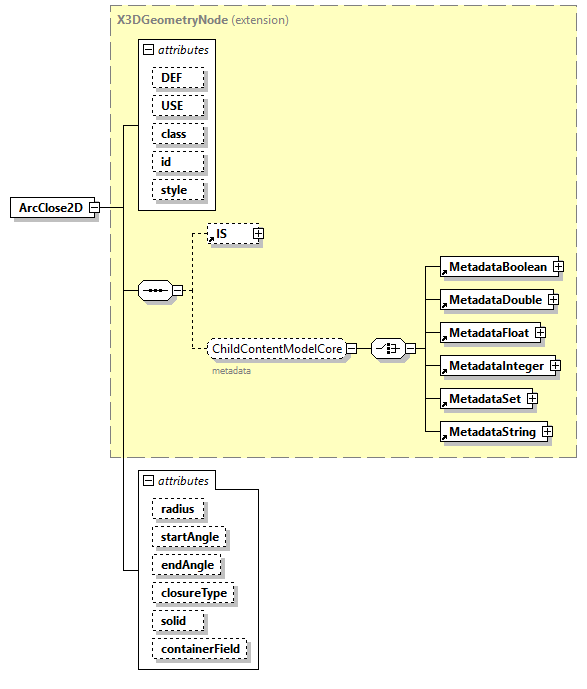

element ArcClose2D
diagram x3d-4.0_diagrams/x3d-4.0_p6.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group GeometryContentModel2D
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

radius  derived by: SFFloat    1
startAngle  derived by: SFFloat    0
appinfo
range +/- 2pi
endAngle  derived by: SFFloat    1.570796
appinfo
range +/- 2pi
closureType  closureTypeChoices    PIE
solid  SFBool    false
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry2D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="ArcClose2D">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry2D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/geometry2D.html#ArcClose2D"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:attribute name="radius" default="1">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="startAngle" default="0">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="endAngle" default="1.570796">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="closureType" type="closureTypeChoices" default="PIE"/>

<xs:attribute name="solid" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ArcClose2D/@radius
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="radius" default="1">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ArcClose2D/@startAngle
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minExclusive -6.2832
maxExclusive 6.2832
annotation
appinfo
range +/- 2pi
source <xs:attribute name="startAngle" default="0">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ArcClose2D/@endAngle
type restriction of SFFloat
properties
default 1.570796
facets
Kind Value Annotation
minExclusive -6.2832
maxExclusive 6.2832
annotation
appinfo
range +/- 2pi
source <xs:attribute name="endAngle" default="1.570796">

<xs:annotation>

<xs:appinfo>range +/- 2pi</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ArcClose2D/@closureType
type closureTypeChoices
properties
default PIE
facets
Kind Value Annotation
enumeration PIE
appinfo
Connects arc endpoints to center, forming a pie wedge
enumeration CHORD
appinfo
Connects arc endpoints directly to each other, as in chord on a circle
source <xs:attribute name="closureType" type="closureTypeChoices" default="PIE"/>

attribute ArcClose2D/@solid
type SFBool
properties
default false
source <xs:attribute name="solid" type="SFBool" default="false"/>

attribute ArcClose2D/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

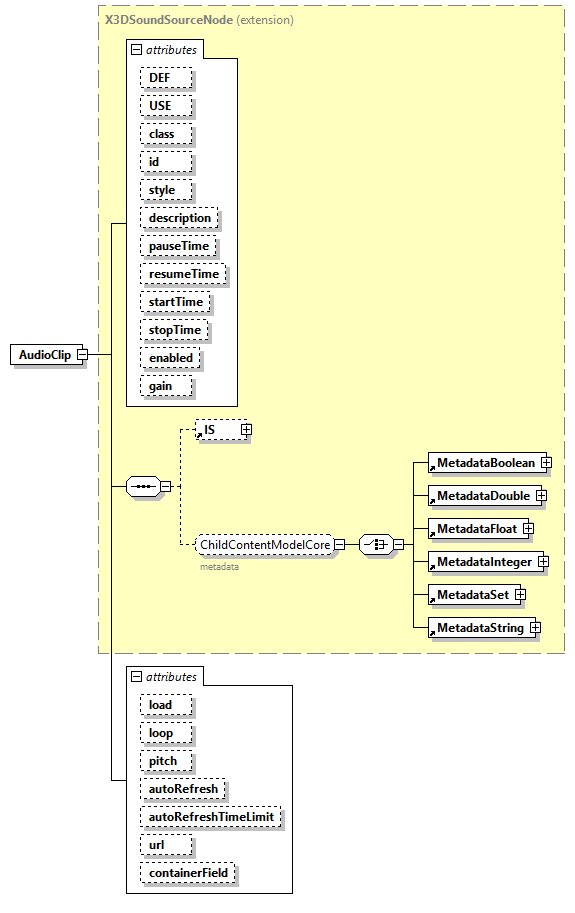

element AudioClip
diagram x3d-4.0_diagrams/x3d-4.0_p7.png
type extension of X3DSoundSourceNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
groups AudioGraphContentModel ChildContentModelImmersive LoadSensorChildContentModel SoundChildContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
enabled  SFBool    true
gain  SFFloat    1
load  SFBool    true
loop  SFBool    false
pitch  derived by: SFFloat    1.0
autoRefresh  derived by: SFTime    0
autoRefreshTimeLimit  derived by: SFTime    3600
url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
containerField  containerFieldChoicesAudioClip    source
annotation
appinfo
<!-- X3D version 4: duration_changed moved from abstract type X3DSoundSourceNode to AudioClip, MovieTexture -->
<xs:attribute name="duration_changed" fixed="outputOnlyField">
<!-- type="SFTimeNonNegative" -->
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="-1"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="AudioClip">

<xs:annotation>

<xs:appinfo>

<!-- X3D version 4: duration_changed moved from abstract type X3DSoundSourceNode to AudioClip, MovieTexture -->

<xs:attribute name="duration_changed" fixed="outputOnlyField">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="-1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/sound.html#AudioClip"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DSoundSourceNode">

<xs:attribute name="load" type="SFBool" default="true"/>

<xs:attribute name="loop" type="SFBool" default="false"/>

<xs:attribute name="pitch" default="1.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="containerFieldChoicesAudioClip" default="source"/>

</xs:extension>

<!-- X3D version 4: loop moved from abstract type X3DTimeDependentNode to TimeSensor, AudioClip, MovieTexture -->

<!-- X3D version 4: pitch moved from abstract type X3DTimeDependentNode to AudioClip, MovieTexture -->

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute AudioClip/@load
type SFBool
properties
default true
source <xs:attribute name="load" type="SFBool" default="true"/>

attribute AudioClip/@loop
type SFBool
properties
default false
source <xs:attribute name="loop" type="SFBool" default="false"/>

attribute AudioClip/@pitch
type restriction of SFFloat
properties
default 1.0
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="pitch" default="1.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AudioClip/@autoRefresh
type restriction of SFTime
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AudioClip/@autoRefreshTimeLimit
type restriction of SFTime
properties
default 3600
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AudioClip/@url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute AudioClip/@containerField
type containerFieldChoicesAudioClip
properties
default source
facets
Kind Value Annotation
enumeration children
appinfo
parent node is X3DSoundChannelNode, X3DSoundDestinationNode, or X3DSoundProcessingNode
enumeration source
appinfo
parent node is Sound node (legacy X3D3 SFNode source is allowed content model, prefer X3D4 MFNode children)
enumeration watchList
appinfo
parent node is LoadSensor node (X3D3 only, validation allowed in X3D4 for backwards compatibility)
source <xs:attribute name="containerField" type="containerFieldChoicesAudioClip" default="source"/>

element AudioDestination
diagram x3d-4.0_diagrams/x3d-4.0_p8.png
type extension of X3DSoundDestinationNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Analyser AudioClip AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource MovieTexture OscillatorSource Sound SpatialSound StreamAudioDestination StreamAudioSource WaveShaper ProtoInstance
used by
groups AudioGraphContentModel ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
enabled  SFBool    true
channelCountMode  channelCountModeChoices    MAX
channelInterpretation  channelInterpretationChoices    SPEAKERS
gain  SFFloat    1
mediaDeviceID  SFString
maxChannelCount  derived by: SFInt32    2
containerField  containerFieldChoicesAudioGraph    children
annotation
appinfo
<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="AudioDestination">

<xs:annotation>

<xs:appinfo>

<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/sound.html#AudioDestination"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DSoundDestinationNode">

<xs:attribute name="maxChannelCount" default="2">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute AudioDestination/@maxChannelCount
type restriction of SFInt32
properties
default 2
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="maxChannelCount" default="2">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute AudioDestination/@containerField
type containerFieldChoicesAudioGraph
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
provide inputs to parent (X3DSoundChannelNode, X3DSoundDestinationNode, X3DSoundProcessingNode) as part of audio graph, otherwise standalone as childe in scene graph
enumeration outputs
appinfo
parent node is ChannelSplitter, which is providing single-channel signal input to this node
enumeration source
appinfo
parent node is Sound node: legacy X3D3 SFNode source is allowed content model (AudioClip or MovieTexture only), prefer X3D4 MFNode children.
source <xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>

element Background

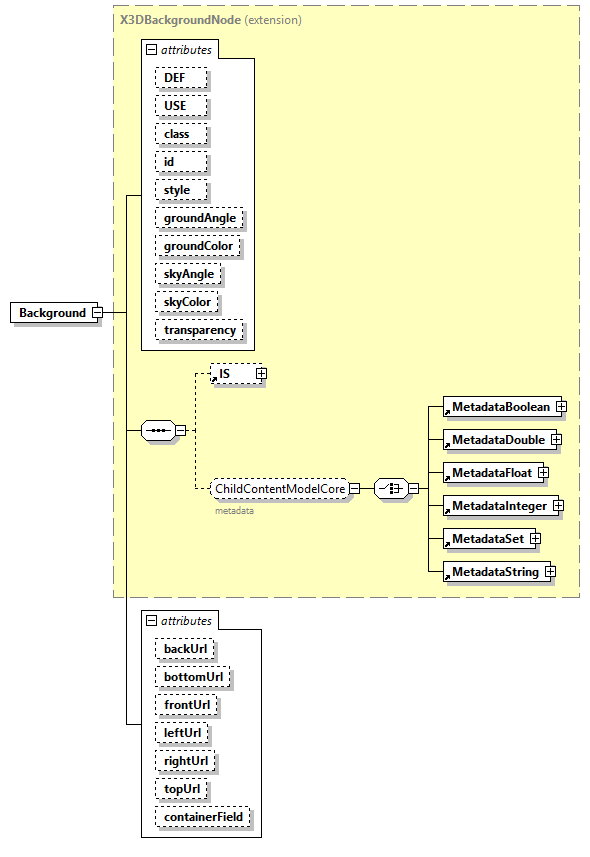

diagram x3d-4.0_diagrams/x3d-4.0_p9.png
type extension of X3DBackgroundNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

groundAngle  MFFloat
appinfo
<xs:minInclusive value="0"/>
<xs:maxInclusive value="1.5708"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
groundColor  MFColor
skyAngle  MFFloat
appinfo
<xs:minInclusive value="0"/>
<xs:maxInclusive value="3.1416"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
skyColor  MFColor    0 0 0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                            Only one skyColor is required at level 1.

transparency  unitIntervalType    0
backUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
bottomUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
frontUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
leftUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
rightUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
topUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Background">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/environmentalEffects.html#Background"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DBackgroundNode">

<xs:attribute name="backUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="bottomUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="frontUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="leftUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="rightUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="topUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Background/@backUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="backUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Background/@bottomUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="bottomUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Background/@frontUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="frontUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Background/@leftUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="leftUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Background/@rightUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="rightUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Background/@topUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="topUrl" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Background/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

element BallJoint

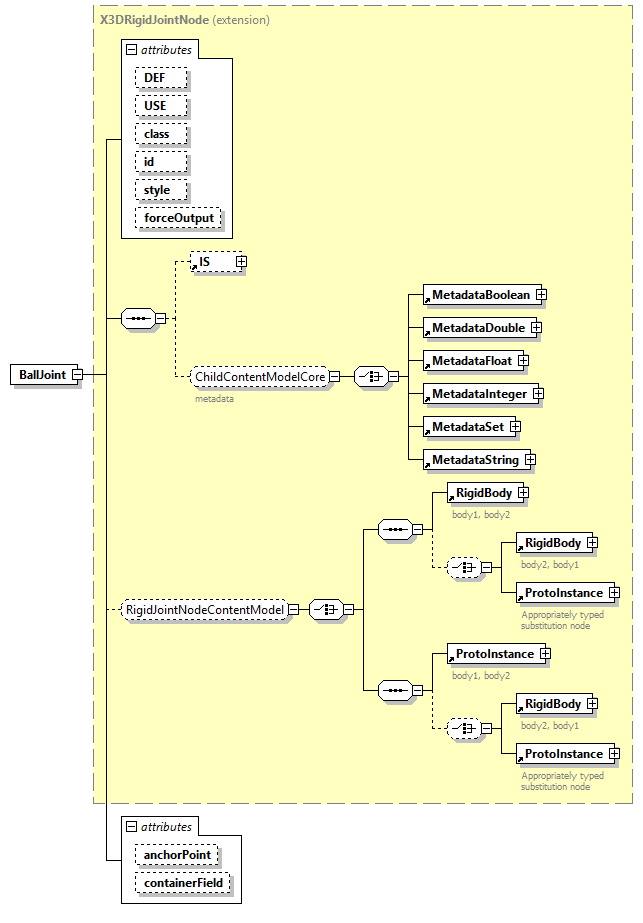

diagram x3d-4.0_diagrams/x3d-4.0_p10.png
type extension of X3DRigidJointNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString RigidBody ProtoInstance
used by
groups RigidBodyCollectionContentModel SceneGraphFragmentContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

forceOutput  MFString    "NONE"
anchorPoint  SFVec3f    0 0 0
containerField  xs:NMTOKEN    joints
annotation
appinfo
<xs:attribute name="body1AnchorPoint" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="body2AnchorPoint" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                BallJoint represents an unconstrained joint between two bodies that pivot about a common anchor point.

source <xs:element name="BallJoint">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="body1AnchorPoint" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="body2AnchorPoint" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                BallJoint represents an unconstrained joint between two bodies that pivot about a common anchor point.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/rigidBodyPhysics.html#BallJoint"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DRigidJointNode">

<xs:attribute name="anchorPoint" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="joints"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute BallJoint/@anchorPoint
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="anchorPoint" type="SFVec3f" default="0 0 0"/>

attribute BallJoint/@containerField
type xs:NMTOKEN
properties
default joints
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="joints"/>

element Billboard
diagram x3d-4.0_diagrams/x3d-4.0_p11.png
type extension of X3DGroupingNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D ClipPlane EaseInEaseOut LinePickSensor PickableGroup PointPickSensor PrimitivePickSensor VolumePickSensor SplinePositionInterpolator SplinePositionInterpolator2D SplineScalarInterpolator SquadOrientationInterpolator StaticGroup TextureProjector TextureProjectorParallel CADAssembly CADLayer CADPart OrthoViewpoint ViewpointGroup ColorChaser ColorDamper CoordinateChaser CoordinateDamper OrientationChaser OrientationDamper PositionChaser PositionChaser2D PositionDamper PositionDamper2D ScalarChaser ScalarDamper TexCoordChaser2D TexCoordDamper2D TextureBackground CollidableShape CollisionSensor RigidBodyCollection ParticleSystem TransformSensor IsoSurfaceVolumeData SegmentedVolumeData VolumeData Analyser AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource OscillatorSource SpatialSound StreamAudioDestination StreamAudioSource WaveShaper EspduTransform ReceiverPdu SignalPdu TransmitterPdu DISEntityManager GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoViewpoint GeoTransform HAnimHumanoid HAnimJoint HAnimSegment HAnimSite HAnimMotion NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by
element TransformSensor
groups ChildContentModelImmersive PickSensorGroupingNodeContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
bboxDisplay  SFBool    false
visible  SFBool    true
axisOfRotation  SFVec3f    0 1 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="Billboard">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/navigation.html#Billboard"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGroupingNode">

<xs:attribute name="axisOfRotation" type="SFVec3f" default="0 1 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Billboard/@axisOfRotation
type SFVec3f
properties
default 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="axisOfRotation" type="SFVec3f" default="0 1 0"/>

attribute Billboard/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

element BiquadFilter
diagram x3d-4.0_diagrams/x3d-4.0_p12.png
type extension of X3DSoundProcessingNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Analyser AudioClip AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource MovieTexture OscillatorSource Sound SpatialSound StreamAudioDestination StreamAudioSource WaveShaper ProtoInstance
used by
groups AudioGraphContentModel ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
channelCountMode  channelCountModeChoices    MAX
channelInterpretation  channelInterpretationChoices    SPEAKERS
enabled  SFBool    true
gain  SFFloat    1
tailTime  derived by: SFTime    0
detune  derived by: SFFloat    0
frequency  derived by: SFFloat    350
qualityFactor  derived by: SFFloat    1
appinfo
Named qualityFactor vice Q since design pattern for X3D attribute names is lower camel case
type  biquadTypeFilterChoices    LOWPASS
containerField  containerFieldChoicesAudioGraph    children
annotation
appinfo
<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="BiquadFilter">

<xs:annotation>

<xs:appinfo>

<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/sound.html#BiquadFilter"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DSoundProcessingNode">

<xs:attribute name="detune" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="frequency" default="350">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="qualityFactor" default="1">

<xs:annotation>

<xs:appinfo>Named qualityFactor vice Q since design pattern for X3D attribute names is lower camel case</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="type" type="biquadTypeFilterChoices" default="LOWPASS"/>

<xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute BiquadFilter/@detune
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="detune" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute BiquadFilter/@frequency
type restriction of SFFloat
properties
default 350
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="frequency" default="350">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute BiquadFilter/@qualityFactor
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minInclusive 0
annotation
appinfo
Named qualityFactor vice Q since design pattern for X3D attribute names is lower camel case
source <xs:attribute name="qualityFactor" default="1">

<xs:annotation>

<xs:appinfo>Named qualityFactor vice Q since design pattern for X3D attribute names is lower camel case</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute BiquadFilter/@type
type biquadTypeFilterChoices
properties
default LOWPASS
facets
Kind Value Annotation
enumeration LOWPASS
appinfo
<xs:attribute name="alias" type="xs:string" default="lowpass"/>
                        X3D version of "lowpass" in Web Audio API.

enumeration HIGHPASS
appinfo
<xs:attribute name="alias" type="xs:string" default="highpass"/>
                        X3D version of "highpass" in Web Audio API.

enumeration BANDPASS
appinfo
<xs:attribute name="alias" type="xs:string" default="bandpass"/>
                        X3D version of "bandpass" in Web Audio API.

enumeration LOWSHELF
appinfo
<xs:attribute name="alias" type="xs:string" default="lowshelf"/>
                        X3D version of "lowshelf" in Web Audio API.

enumeration HIGHSHELF
appinfo
<xs:attribute name="alias" type="xs:string" default="highshelf"/>
                        X3D version of "highshelf" in Web Audio API.

enumeration PEAKING
appinfo
<xs:attribute name="alias" type="xs:string" default="peaking"/>
                        X3D version of "peaking" in Web Audio API.

enumeration NOTCH
appinfo
<xs:attribute name="alias" type="xs:string" default="notch"/>
                        X3D version of "notch" in Web Audio API.

enumeration ALLPASS
appinfo
<xs:attribute name="alias" type="xs:string" default="allpass"/>
                        X3D version of "allpass" in Web Audio API.

source <xs:attribute name="type" type="biquadTypeFilterChoices" default="LOWPASS"/>

attribute BiquadFilter/@containerField
type containerFieldChoicesAudioGraph
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
provide inputs to parent (X3DSoundChannelNode, X3DSoundDestinationNode, X3DSoundProcessingNode) as part of audio graph, otherwise standalone as childe in scene graph
enumeration outputs
appinfo
parent node is ChannelSplitter, which is providing single-channel signal input to this node
enumeration source
appinfo
parent node is Sound node: legacy X3D3 SFNode source is allowed content model (AudioClip or MovieTexture only), prefer X3D4 MFNode children.
source <xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>

element BlendedVolumeStyle

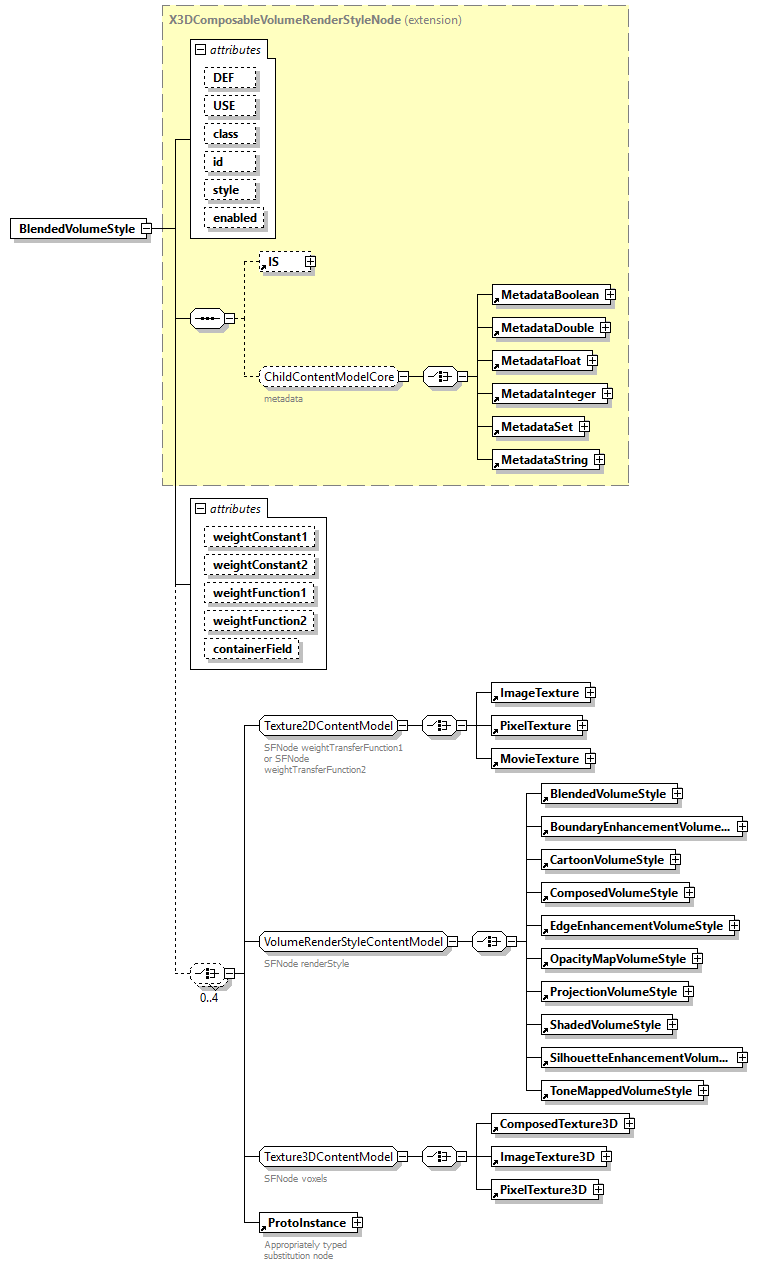

diagram x3d-4.0_diagrams/x3d-4.0_p13.png
type extension of X3DComposableVolumeRenderStyleNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture PixelTexture MovieTexture BlendedVolumeStyle BoundaryEnhancementVolumeStyle CartoonVolumeStyle ComposedVolumeStyle EdgeEnhancementVolumeStyle OpacityMapVolumeStyle ProjectionVolumeStyle ShadedVolumeStyle SilhouetteEnhancementVolumeStyle ToneMappedVolumeStyle ComposedTexture3D ImageTexture3D PixelTexture3D ProtoInstance
used by
group VolumeRenderStyleContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

enabled  SFBool    true
weightConstant1  derived by: SFFloat    0.5
weightConstant2  derived by: SFFloat    0.5
weightFunction1  volumeRenderingWeightFunctionChoices    CONSTANT
weightFunction2  volumeRenderingWeightFunctionChoices    CONSTANT
containerField  xs:NMTOKEN    renderStyle
annotation
appinfo
<xs:element name="renderStyle" type="SFNode" fixed="inputOutputField" default="X3DComposableVolumeRenderStyleNode"/>
<xs:element name="voxels" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>
<xs:element name="weightTransferFunction1" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode"/>
<xs:element name="weightTransferFunction2" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="BlendedVolumeStyle">

<xs:annotation>

<xs:appinfo>

<xs:element name="renderStyle" type="SFNode" fixed="inputOutputField" default="X3DComposableVolumeRenderStyleNode"/>

<xs:element name="voxels" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>

<xs:element name="weightTransferFunction1" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode"/>

<xs:element name="weightTransferFunction2" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-DIS/Part01/components/volume.html#BlendedVolumeStyle"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DComposableVolumeRenderStyleNode">

<xs:choice minOccurs="0" maxOccurs="4">

<xs:group ref="Texture2DContentModel">

<xs:annotation>

<xs:documentation>SFNode weightTransferFunction1 or SFNode weightTransferFunction2</xs:documentation>

</xs:annotation>

</xs:group>

<xs:group ref="VolumeRenderStyleContentModel">

<xs:annotation>

<xs:documentation>SFNode renderStyle</xs:documentation>

</xs:annotation>

</xs:group>

<xs:group ref="Texture3DContentModel">

<xs:annotation>

<xs:documentation>SFNode voxels</xs:documentation>

</xs:annotation>

</xs:group>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="weightConstant1" default="0.5">

<xs:simpleType>

<xs:restriction base="SFFloat">
