element PixelTexture

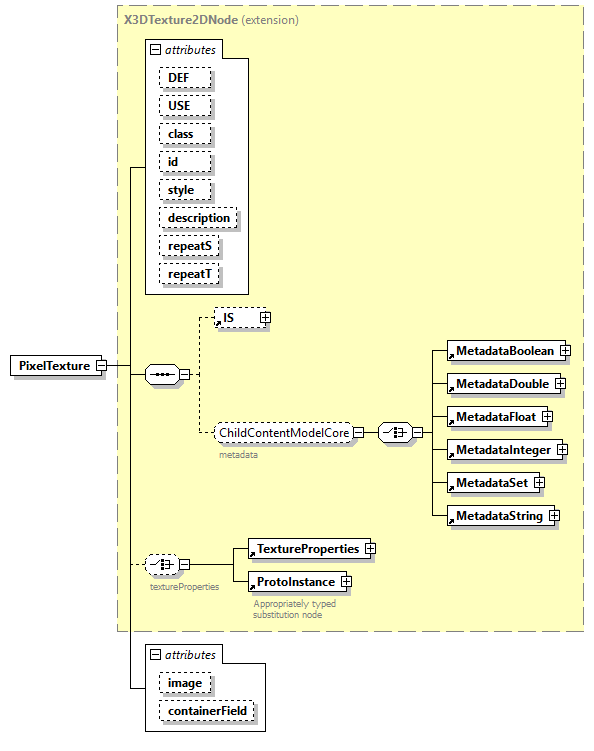

diagram x3d-4.0_diagrams/x3d-4.0_p176.png
type extension of X3DTexture2DNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString TextureProperties ProtoInstance
used by
elements ComposedCubeMapTexture ComposedTexture3D Material MultiTexture PhysicalMaterial UnlitMaterial
complexType X3DTextureProjectorNode
groups AppearanceChildContentModelNoProtoInstance Texture2DContentModel TextureBackgroundChildContentModel TextureContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
repeatS  SFBool    true
repeatT  SFBool    true
image  SFImage    0 0 0
containerField  containerFieldChoicesX3DTexture2DNode    texture
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="PixelTexture">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#PixelTexture"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTexture2DNode">

<xs:attribute name="image" type="SFImage" default="0 0 0"/>

<xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute PixelTexture/@image
type SFImage
properties
default 0 0 0
facets
Kind Value Annotation
minLength 5
whiteSpace collapse
source <xs:attribute name="image" type="SFImage" default="0 0 0"/>

attribute PixelTexture/@containerField
type containerFieldChoicesX3DTexture2DNode
properties
default texture
facets
Kind Value Annotation
enumeration texture
appinfo
default, parent node is Appearance
enumeration source
appinfo
parent node is Sound node: legacy X3D3 SFNode source is allowed content model (AudioClip or MovieTexture only), prefer X3D4 MFNode children.
enumeration backTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration bottomTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration frontTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration leftTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration rightTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration topTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration children
appinfo
parent node is LoadSensor (formerly watchList in X3D3)
enumeration baseTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
enumeration emissiveTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial
enumeration metallicRoughnessTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
enumeration normalTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial
enumeration occlusionTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
source <xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>
