element UnlitMaterial

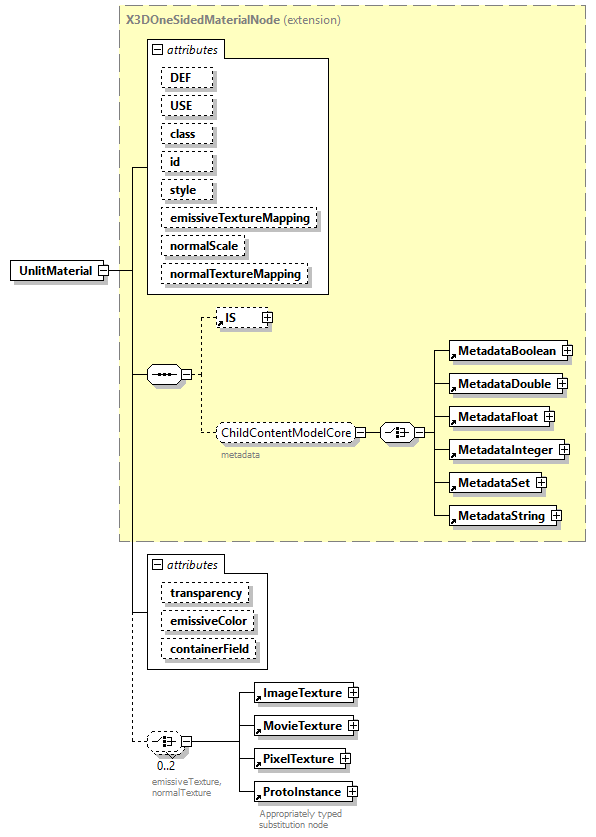

diagram x3d-4.0_diagrams/x3d-4.0_p266.png
type extension of X3DOneSidedMaterialNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture MovieTexture PixelTexture ProtoInstance
used by
group AppearanceChildContentModelNoProtoInstance
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

emissiveTextureMapping  xs:NMTOKEN
normalScale  derived by: SFFloat    1
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
normalTextureMapping  xs:NMTOKEN
transparency  unitIntervalType    0
emissiveColor  SFColor    1 1 1
appinfo

                                A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.

containerField  xs:NMTOKEN    material
annotation
appinfo
<xs:element name="emissiveTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>
<xs:element name="normalTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="UnlitMaterial">

<xs:annotation>

<xs:appinfo>

<xs:element name="emissiveTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>

<xs:element name="normalTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#UnlitMaterial"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DOneSidedMaterialNode">

<xs:choice minOccurs="0" maxOccurs="2">

<xs:annotation>

<xs:documentation>emissiveTexture, normalTexture</xs:documentation>

</xs:annotation>

<!-- TODO strictly one of each field, any order -->

<xs:element ref="ImageTexture"/>

<xs:element ref="MovieTexture"/>

<xs:element ref="PixelTexture"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="transparency" type="unitIntervalType" default="0"/>

<xs:attribute name="emissiveColor" type="SFColor" default="1 1 1">

<xs:annotation>

<xs:appinfo>
                                A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute UnlitMaterial/@transparency
type unitIntervalType
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="transparency" type="unitIntervalType" default="0"/>

attribute UnlitMaterial/@emissiveColor
type SFColor
properties
default 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
annotation
appinfo

                                A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.

source <xs:attribute name="emissiveColor" type="SFColor" default="1 1 1">

<xs:annotation>

<xs:appinfo>
                                A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute UnlitMaterial/@containerField
type xs:NMTOKEN
properties
default material
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>
