element ImageTexture

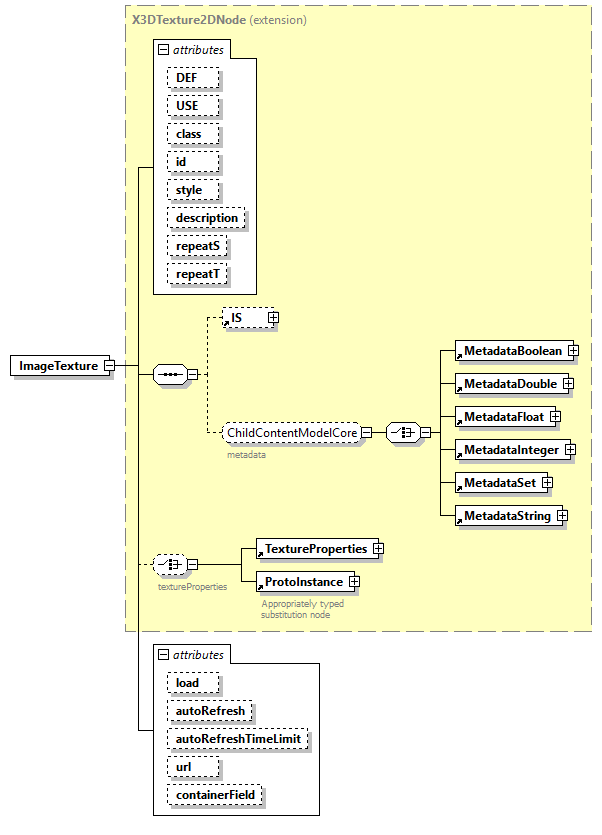

diagram x3d-4.0_diagrams/x3d-4.0_p109.png
type extension of X3DTexture2DNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString TextureProperties ProtoInstance
used by
elements ComposedCubeMapTexture ComposedTexture3D EnvironmentLight Material MultiTexture PhysicalMaterial UnlitMaterial
complexType X3DTextureProjectorNode
groups AppearanceChildContentModelNoProtoInstance LoadSensorChildContentModel Texture2DContentModel TextureBackgroundChildContentModel TextureContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.

description  SFString
repeatS  SFBool    true
repeatT  SFBool    true
load  SFBool    true
autoRefresh  derived by: SFTime    0
autoRefreshTimeLimit  derived by: SFTime    3600
url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
containerField  containerFieldChoicesX3dUrlObjectTexture    texture
annotation
appinfo
<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="ImageTexture">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-WD3/Part01/components/texturing.html#ImageTexture"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTexture2DNode">

<xs:attribute name="load" type="SFBool" default="true"/>

<xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="containerFieldChoicesX3dUrlObjectTexture" default="texture"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ImageTexture/@load
type SFBool
properties
default true
source <xs:attribute name="load" type="SFBool" default="true"/>

attribute ImageTexture/@autoRefresh
type restriction of SFTime
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ImageTexture/@autoRefreshTimeLimit
type restriction of SFTime
properties
default 3600
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ImageTexture/@url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute ImageTexture/@containerField
type containerFieldChoicesX3dUrlObjectTexture
properties
default texture
facets
Kind Value Annotation
enumeration texture
appinfo
default, parent node is Appearance
enumeration children
appinfo
parent node is LoadSensor (invalid for PixelTexture) (formerly watchList in X3D3)
enumeration source
appinfo
parent node is Sound (only valid for MovieTexture)
enumeration backTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration bottomTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration frontTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration leftTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration rightTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration topTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
source <xs:attribute name="containerField" type="containerFieldChoicesX3dUrlObjectTexture" default="texture"/>
