element Material

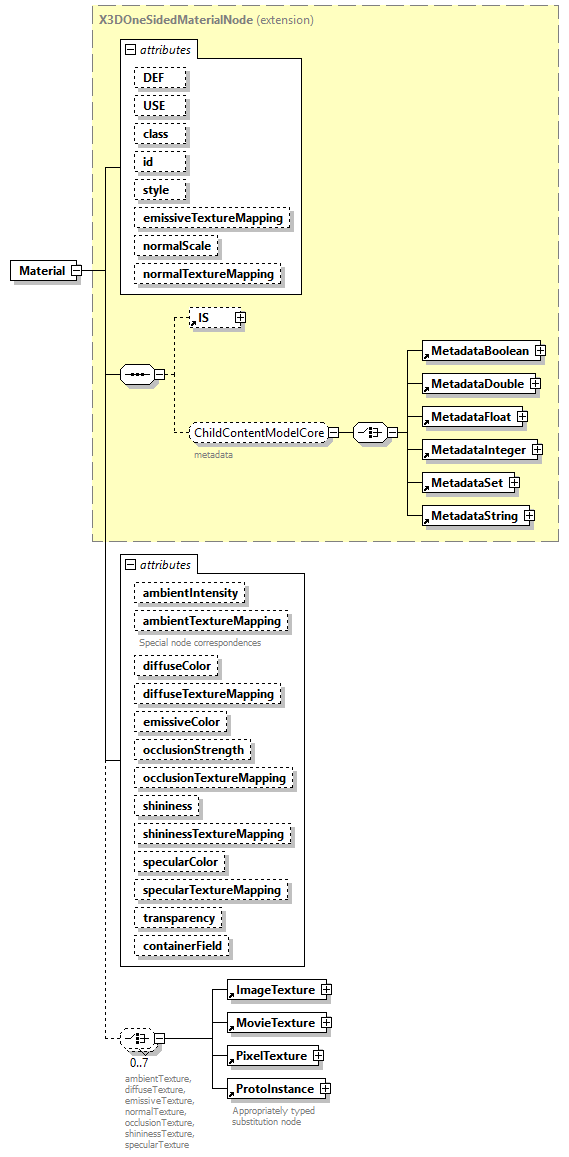

diagram
type	extension of X3DOneSidedMaterialNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture MovieTexture PixelTexture ProtoInstance
used by	element  ShadedVolumeStyle group  AppearanceChildContentModelNoProtoInstance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 emissiveTextureMapping   xs:NMTOKEN            normalScale   derived by: SFFloat      1      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> normalTextureMapping   xs:NMTOKEN            ambientIntensity   unitIntervalType      0.2      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> ambientTextureMapping   xs:NMTOKEN            documentation Special node correspondences diffuseColor   SFColor      0.8 0.8 0.8      diffuseTextureMapping   xs:NMTOKEN            emissiveColor   SFColor      0 0 0      appinfo                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.                             occlusionStrength   unitIntervalType      1      occlusionTextureMapping   xs:NMTOKEN            shininess   unitIntervalType      0.2      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> shininessTextureMapping   xs:NMTOKEN            specularColor   SFColor      0 0 0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> specularTextureMapping   xs:NMTOKEN            transparency   unitIntervalType      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                                 One-bit transparency; transparency values &gt;= 0.5 are transparent.                             containerField   xs:NMTOKEN      material
annotation	appinfo <xs:element name="ambientTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="diffuseTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="emissiveTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="normalTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="occlusionTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="shininessTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="specularTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="Material">   <xs:annotation>     <xs:appinfo>       <xs:element name="ambientTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="diffuseTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="emissiveTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="normalTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="occlusionTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="shininessTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="specularTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#Material"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DOneSidedMaterialNode">         <xs:choice minOccurs="0" maxOccurs="7">           <xs:annotation>             <xs:documentation>ambientTexture, diffuseTexture, emissiveTexture, normalTexture, occlusionTexture, shininessTexture, specularTexture</xs:documentation>           </xs:annotation>           <!-- TODO strictly one of each field, any order -->           <xs:element ref="ImageTexture"/>           <xs:element ref="MovieTexture"/>           <xs:element ref="PixelTexture"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="ambientIntensity" type="unitIntervalType" default="0.2">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="ambientTextureMapping" type="xs:NMTOKEN">           <xs:annotation>             <xs:documentation>Special node correspondences</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="diffuseColor" type="SFColor" default="0.8 0.8 0.8"/>         <xs:attribute name="diffuseTextureMapping" type="xs:NMTOKEN"/>         <xs:attribute name="emissiveColor" type="SFColor" default="0 0 0">           <xs:annotation>             <xs:appinfo>                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.                             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="occlusionStrength" type="unitIntervalType" default="1"/>         <xs:attribute name="occlusionTextureMapping" type="xs:NMTOKEN"/>         <xs:attribute name="shininess" type="unitIntervalType" default="0.2">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="shininessTextureMapping" type="xs:NMTOKEN"/>         <xs:attribute name="specularColor" type="SFColor" default="0 0 0">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="specularTextureMapping" type="xs:NMTOKEN"/>         <xs:attribute name="transparency" type="unitIntervalType" default="0">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                                 One-bit transparency; transparency values &gt;= 0.5 are transparent.                             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Material/@ambientIntensity

type	unitIntervalType
properties	default  0.2
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="ambientIntensity" type="unitIntervalType" default="0.2">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Material/@ambientTextureMapping

type	xs:NMTOKEN
annotation	documentation Special node correspondences
source	<xs:attribute name="ambientTextureMapping" type="xs:NMTOKEN">   <xs:annotation>     <xs:documentation>Special node correspondences</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Material/@diffuseColor

type	SFColor
properties	default  0.8 0.8 0.8
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="diffuseColor" type="SFColor" default="0.8 0.8 0.8"/>

attribute Material/@diffuseTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="diffuseTextureMapping" type="xs:NMTOKEN"/>

attribute Material/@emissiveColor

type	SFColor
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.
source	<xs:attribute name="emissiveColor" type="SFColor" default="0 0 0">   <xs:annotation>     <xs:appinfo>                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.                             </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Material/@occlusionStrength

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="occlusionStrength" type="unitIntervalType" default="1"/>

attribute Material/@occlusionTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="occlusionTextureMapping" type="xs:NMTOKEN"/>

attribute Material/@shininess

type	unitIntervalType
properties	default  0.2
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="shininess" type="unitIntervalType" default="0.2">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Material/@shininessTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="shininessTextureMapping" type="xs:NMTOKEN"/>

attribute Material/@specularColor

type	SFColor
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="specularColor" type="SFColor" default="0 0 0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Material/@specularTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="specularTextureMapping" type="xs:NMTOKEN"/>

attribute Material/@transparency

type	unitIntervalType
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                                 One-bit transparency; transparency values &gt;= 0.5 are transparent.
source	<xs:attribute name="transparency" type="unitIntervalType" default="0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                                 One-bit transparency; transparency values &gt;= 0.5 are transparent.                             </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Material/@containerField

type	xs:NMTOKEN
properties	default  material
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>
