element MovieTexture

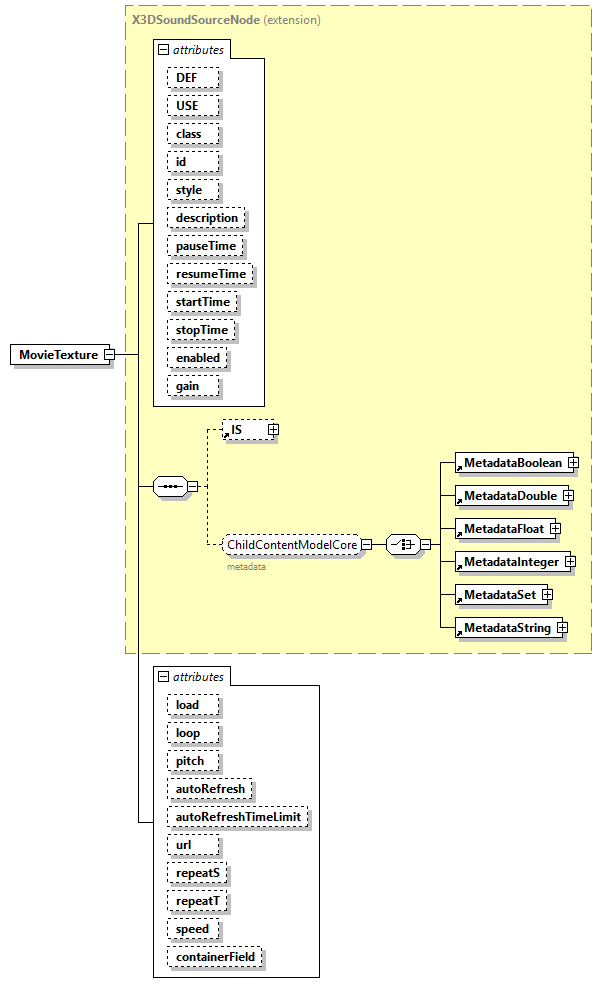

diagram x3d-4.0_diagrams/x3d-4.0_p147.png
type extension of X3DSoundSourceNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements ComposedCubeMapTexture ComposedTexture3D Material MultiTexture PhysicalMaterial UnlitMaterial
complexType X3DTextureProjectorNode
groups AppearanceChildContentModelNoProtoInstance AudioGraphContentModel LoadSensorChildContentModel SoundChildContentModel Texture2DContentModel TextureBackgroundChildContentModel TextureContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
enabled  SFBool    true
gain  SFFloat    1
load  SFBool    true
loop  SFBool    false
pitch  derived by: SFFloat    1.0
autoRefresh  derived by: SFTime    0
autoRefreshTimeLimit  derived by: SFTime    3600
url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
repeatS  SFBool    true
repeatT  SFBool    true
speed  SFFloat    1.0
containerField  containerFieldChoicesX3dUrlObjectTexture    texture
annotation
appinfo
<!-- X3D version 4: duration_changed moved from abstract type X3DSoundSourceNode to AudioClip, MovieTexture -->
<xs:attribute name="duration_changed" fixed="outputOnlyField">
<!-- type="SFTimeNonNegative" -->
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="-1"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:element name="textureProperties" type="SFNode" default="TextureProperties" fixed="initializeOnlyField"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DTexture2DNode"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="MovieTexture">

<xs:annotation>

<xs:appinfo>

<!-- X3D version 4: duration_changed moved from abstract type X3DSoundSourceNode to AudioClip, MovieTexture -->

<xs:attribute name="duration_changed" fixed="outputOnlyField">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="-1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:element name="textureProperties" type="SFNode" default="TextureProperties" fixed="initializeOnlyField"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DTexture2DNode"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#MovieTexture"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DSoundSourceNode">

<xs:attribute name="load" type="SFBool" default="true"/>

<xs:attribute name="loop" type="SFBool" default="false"/>

<xs:attribute name="pitch" default="1.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="repeatS" type="SFBool" default="true"/>

<xs:attribute name="repeatT" type="SFBool" default="true"/>

<xs:attribute name="speed" type="SFFloat" default="1.0"/>

<xs:attribute name="containerField" type="containerFieldChoicesX3dUrlObjectTexture" default="texture"/>

</xs:extension>

<!-- X3D version 4: loop moved from abstract type X3DTimeDependentNode to TimeSensor, AudioClip, MovieTexture -->

<!-- X3D version 4: pitch moved from abstract type X3DTimeDependentNode to AudioClip, MovieTexture -->

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute MovieTexture/@load
type SFBool
properties
default true
source <xs:attribute name="load" type="SFBool" default="true"/>

attribute MovieTexture/@loop
type SFBool
properties
default false
source <xs:attribute name="loop" type="SFBool" default="false"/>

attribute MovieTexture/@pitch
type restriction of SFFloat
properties
default 1.0
facets
Kind Value Annotation
minExclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="pitch" default="1.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute MovieTexture/@autoRefresh
type restriction of SFTime
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefresh" default="0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute MovieTexture/@autoRefreshTimeLimit
type restriction of SFTime
properties
default 3600
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="autoRefreshTimeLimit" default="3600">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute MovieTexture/@url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="url" type="MFString">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute MovieTexture/@repeatS
type SFBool
properties
default true
source <xs:attribute name="repeatS" type="SFBool" default="true"/>

attribute MovieTexture/@repeatT
type SFBool
properties
default true
source <xs:attribute name="repeatT" type="SFBool" default="true"/>

attribute MovieTexture/@speed
type SFFloat
properties
default 1.0
facets
Kind Value Annotation
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="speed" type="SFFloat" default="1.0"/>

attribute MovieTexture/@containerField
type containerFieldChoicesX3dUrlObjectTexture
properties
default texture
facets
Kind Value Annotation
enumeration texture
appinfo
default, parent node is Appearance
enumeration children
appinfo
parent node is LoadSensor (invalid for PixelTexture) (formerly watchList in X3D3)
enumeration source
appinfo
parent node is Sound (only valid for MovieTexture)
enumeration backTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration bottomTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration frontTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration leftTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration rightTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration topTexture
appinfo
parent node is TextureBackground or ComposedCubeMapTexture
enumeration baseTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
enumeration emissiveTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial
enumeration metallicRoughnessTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
enumeration normalTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial
enumeration occlusionTexture
appinfo
X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
source <xs:attribute name="containerField" type="containerFieldChoicesX3dUrlObjectTexture" default="texture"/>
