group LoadSensorChildContentModel

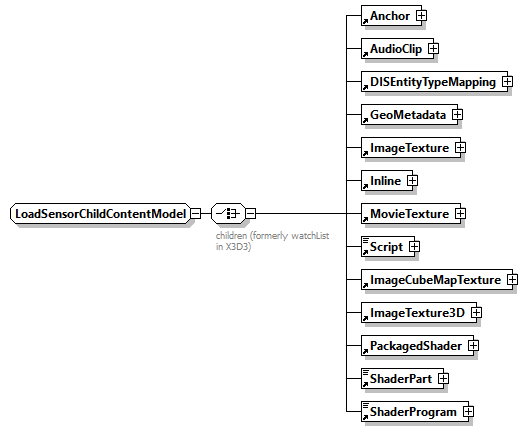

diagram x3d-4.0_diagrams/x3d-4.0_p308.png
children Anchor AudioClip DISEntityTypeMapping GeoMetadata ImageTexture Inline MovieTexture Script ImageCubeMapTexture ImageTexture3D PackagedShader ShaderPart ShaderProgram
used by
element LoadSensor
annotation
appinfo
Child-node content model utilized by LoadSensor node, which determines if the retrievable content for the child X3DUrlObject nodes has been loaded from the network.  When less that Full profile, the precise palette of legal nodes that are available depends on profile and components.
source <xs:group name="LoadSensorChildContentModel">

<xs:annotation>

<xs:appinfo>Child-node content model utilized by LoadSensor node, which determines if the retrievable content for the child X3DUrlObject nodes has been loaded from the network.  When less that Full profile, the precise palette of legal nodes that are available depends on profile and components.</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/concepts.html#f-Objecthierarchy"/>

</xs:annotation>

<xs:choice>

<xs:annotation>

<xs:documentation>children (formerly watchList in X3D3)</xs:documentation>

</xs:annotation>

<xs:element ref="Anchor"/>

<xs:element ref="AudioClip"/>

<xs:element ref="DISEntityTypeMapping"/>

<xs:element ref="GeoMetadata"/>

<xs:element ref="ImageTexture"/>

<xs:element ref="Inline"/>

<xs:element ref="MovieTexture"/>

<xs:element ref="Script"/>

<xs:element ref="ImageCubeMapTexture"/>

<xs:element ref="ImageTexture3D"/>

<xs:element ref="PackagedShader"/>

<xs:element ref="ShaderPart"/>

<xs:element ref="ShaderProgram"/>

</xs:choice>
</xs:group>
