element DISEntityTypeMapping

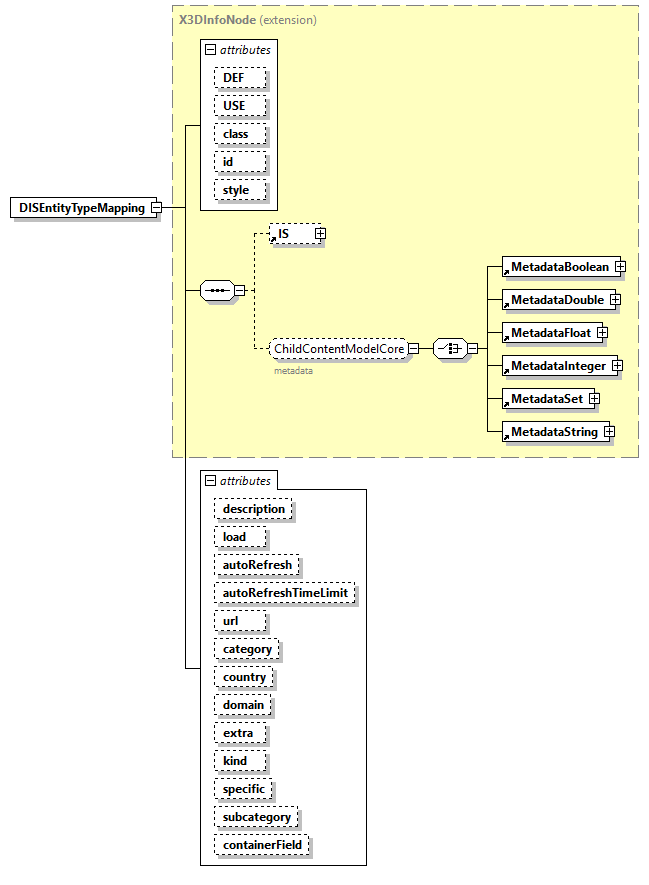

diagram
type	extension of X3DInfoNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  DISEntityManager group  LoadSensorChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            appinfo added in X3D version 4 load   SFBool      true      autoRefresh   derived by: SFTime      0      autoRefreshTimeLimit   derived by: SFTime      3600      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> category   derived by: SFInt32      0      country   derived by: SFInt32      0      domain   derived by: SFInt32      0      extra   derived by: SFInt32      0      kind   derived by: SFInt32      0      specific   derived by: SFInt32      0      subcategory   derived by: SFInt32      0      containerField   containerFieldChoicesDISEntityTypeMapping      children
annotation	appinfo <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="DIS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="DISEntityTypeMapping">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="DIS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/dis.html#DISEntityTypeMapping"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DInfoNode">         <xs:attribute name="description" type="SFString">           <xs:annotation>             <xs:appinfo>added in X3D version 4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="load" type="SFBool" default="true"/>         <xs:attribute name="autoRefresh" default="0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="autoRefreshTimeLimit" default="3600">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="url" type="MFString">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="category" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="255"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="country" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="65535"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="domain" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="255"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="extra" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="255"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="kind" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="255"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="specific" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="255"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="subcategory" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="255"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="containerFieldChoicesDISEntityTypeMapping" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute DISEntityTypeMapping/@description

type	SFString
annotation	appinfo added in X3D version 4
source	<xs:attribute name="description" type="SFString">   <xs:annotation>     <xs:appinfo>added in X3D version 4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DISEntityTypeMapping/@load

type	SFBool
properties	default  true
source	<xs:attribute name="load" type="SFBool" default="true"/>

attribute DISEntityTypeMapping/@autoRefresh

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefresh" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@autoRefreshTimeLimit

type	restriction of SFTime
properties	default  3600
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefreshTimeLimit" default="3600">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DISEntityTypeMapping/@category

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
source	<xs:attribute name="category" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@country

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
source	<xs:attribute name="country" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="65535"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@domain

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
source	<xs:attribute name="domain" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@extra

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
source	<xs:attribute name="extra" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@kind

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
source	<xs:attribute name="kind" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@specific

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
source	<xs:attribute name="specific" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@subcategory

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
source	<xs:attribute name="subcategory" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute DISEntityTypeMapping/@containerField

type	containerFieldChoicesDISEntityTypeMapping
properties	default  children
facets	Kind  Value  Annotation enumeration  children appinfo parent node is DISEntityManager (formerly mapping in X3D3) or LoadSensor (formerly watchList in X3D3) enumeration  mapping appinfo parent node is DISEntityManager node (X3D3, validation allowed in X3D4 for backwards compatibility) enumeration  watchList appinfo parent node is LoadSensor node (X3D3 only, validation allowed in X3D4 for backwards compatibility)
source	<xs:attribute name="containerField" type="containerFieldChoicesDISEntityTypeMapping" default="children"/>
