complexType X3DScriptNode

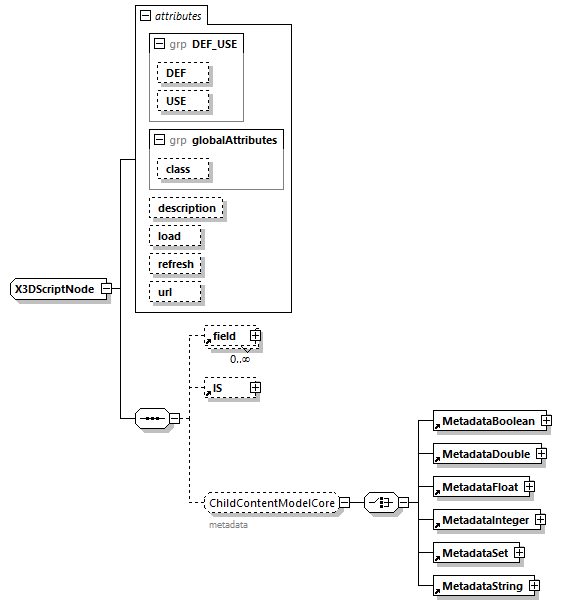

diagram
properties	mixed  true abstract  true
children	field IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  Script
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            load   SFBool      true      autoRefresh   derived by: SFTime      0      autoRefreshTimeLimit   derived by: SFTime      3600      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
annotation	appinfo <xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/> <xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DChildNode"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Scripting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Base type for scripting nodes (but not shader nodes).
source	<xs:complexType name="X3DScriptNode" abstract="true" mixed="true">   <xs:annotation>     <xs:appinfo>       <xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/>       <xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DChildNode"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Scripting"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Base type for scripting nodes (but not shader nodes).             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/scripting.html#X3DScriptNode"/>   </xs:annotation>   <xs:sequence>     <xs:element ref="field" minOccurs="0" maxOccurs="unbounded"/>     <xs:element ref="IS" minOccurs="0"/>     <xs:group ref="ChildContentModelCore" minOccurs="0">       <xs:annotation>         <xs:documentation>metadata</xs:documentation>       </xs:annotation>     </xs:group>   </xs:sequence>   <xs:attributeGroup ref="DEF_USE"/>   <xs:attributeGroup ref="globalAttributes"/>   <xs:attribute name="description" type="SFString"/>   <xs:attribute name="load" type="SFBool" default="true"/>   <xs:attribute name="autoRefresh" default="0">     <!-- type="SFTimeNonNegative" -->     <xs:simpleType>       <xs:restriction base="SFTime">         <xs:minInclusive value="0"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="autoRefreshTimeLimit" default="3600">     <!-- type="SFTimeNonNegative" -->     <xs:simpleType>       <xs:restriction base="SFTime">         <xs:minInclusive value="0"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="url" type="MFString">     <xs:annotation>       <xs:appinfo>         <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>         <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>       </xs:appinfo>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute X3DScriptNode/@description

type	SFString
source	<xs:attribute name="description" type="SFString"/>

attribute X3DScriptNode/@load

type	SFBool
properties	default  true
source	<xs:attribute name="load" type="SFBool" default="true"/>

attribute X3DScriptNode/@autoRefresh

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefresh" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DScriptNode/@autoRefreshTimeLimit

type	restriction of SFTime
properties	default  3600
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefreshTimeLimit" default="3600">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DScriptNode/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>
