element ListenerPointSource

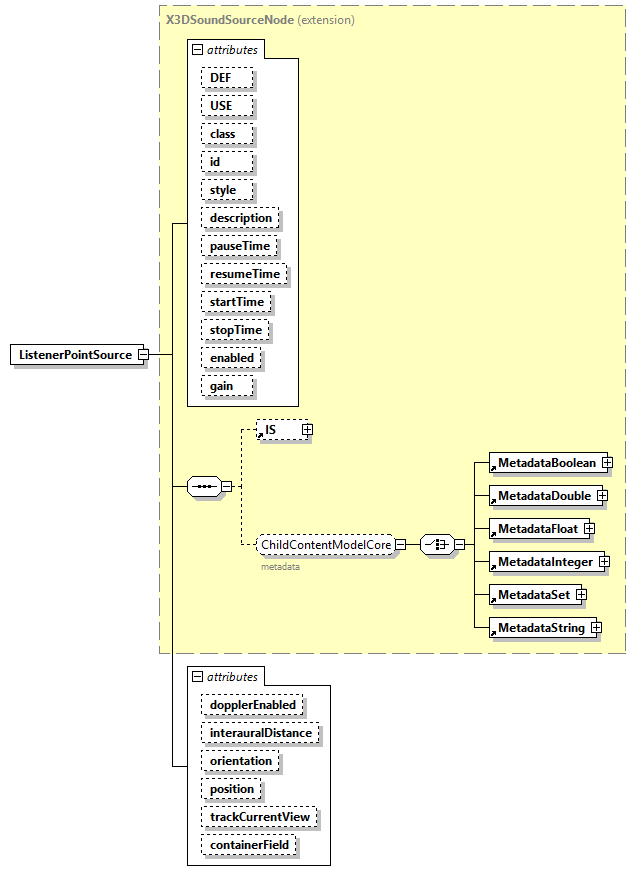

diagram x3d-4.0_diagrams/x3d-4.0_p132.png
type extension of X3DSoundSourceNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
groups AudioGraphContentModel ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
enabled  SFBool    true
gain  SFFloat    1
enableDoppler  SFBool    false
interauralDistance  derived by: SFFloat    0
orientation  SFRotation    0 0 1 0
position  SFVec3f    0 0 0
trackCurrentView  SFBool    false
containerField  containerFieldChoicesSoundSource    children
annotation
appinfo
<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="ListenerPointSource">

<xs:annotation>

<xs:appinfo>

<xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/sound.html#ListenerPointSource"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DSoundSourceNode">

<xs:attribute name="enableDoppler" type="SFBool" default="false"/>

<xs:attribute name="interauralDistance" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>

<xs:attribute name="position" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="trackCurrentView" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="containerFieldChoicesSoundSource" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ListenerPointSource/@enableDoppler
type SFBool
properties
default false
source <xs:attribute name="enableDoppler" type="SFBool" default="false"/>

attribute ListenerPointSource/@interauralDistance
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="interauralDistance" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ListenerPointSource/@orientation
type SFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>

attribute ListenerPointSource/@position
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="position" type="SFVec3f" default="0 0 0"/>

attribute ListenerPointSource/@trackCurrentView
type SFBool
properties
default false
source <xs:attribute name="trackCurrentView" type="SFBool" default="false"/>

attribute ListenerPointSource/@containerField
type containerFieldChoicesSoundSource
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
parent node is X3DSoundChannelNode, X3DSoundDestinationNode, or X3DSoundProcessingNode
enumeration source
appinfo
parent node is Sound node (legacy X3D3 SFNode source is allowed content model, prefer X3D4 MFNode children)
source <xs:attribute name="containerField" type="containerFieldChoicesSoundSource" default="children"/>
