element RigidBodyCollection

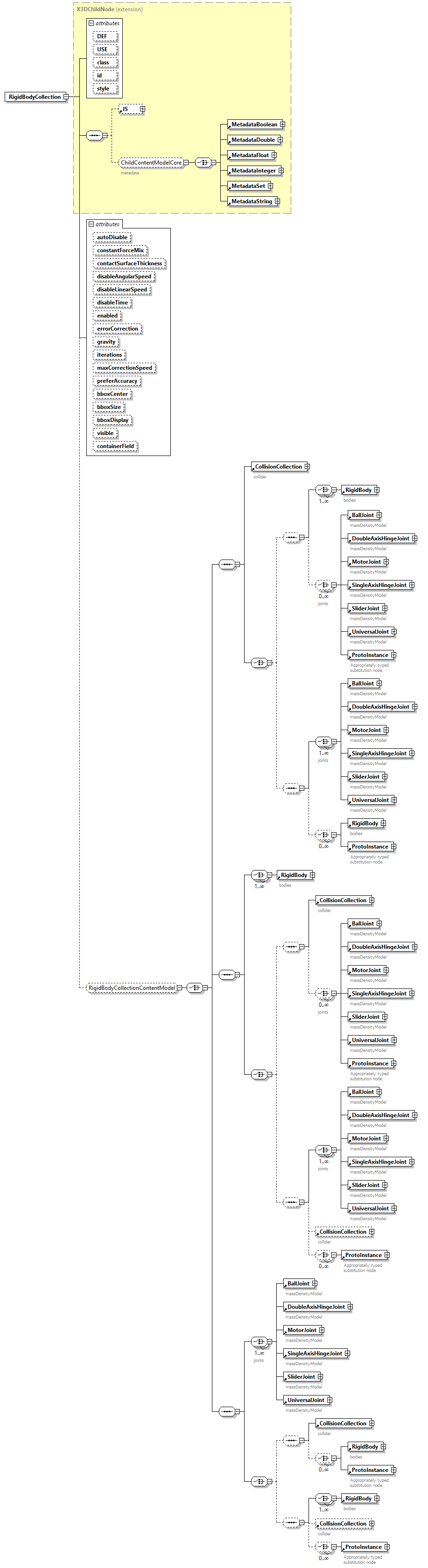

diagram
type	extension of X3DChildNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString CollisionCollection RigidBody BallJoint DoubleAxisHingeJoint MotorJoint SingleAxisHingeJoint SliderJoint UniversalJoint ProtoInstance
used by	group  ChildContentModelFull
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 autoDisable   SFBool      false      constantForceMix   SFFloat      0.0001      contactSurfaceThickness   SFFloat      0      disableAngularSpeed   SFFloat      0      disableLinearSpeed   SFFloat      0      disableTime   derived by: SFTime      0      enabled   SFBool      true      errorCorrection   SFFloat      0.8      gravity   SFVec3f      0 -9.8 0      iterations   SFInt32      10      maxCorrectionSpeed   SFFloat      -1      preferAccuracy   SFBool      false      bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      bboxDisplay   SFBool      false      visible   SFBool      true      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/> <xs:element name="set_contacts" type="MFNode" fixed="inputOnlyField" default="Contact"/> <xs:element name="bodies" type="MFNode" fixed="inputOutputField" default="RigidBody"/> <xs:element name="joints" type="MFNode" fixed="inputOutputField" default="X3DRigidJointNode"/> <xs:element name="collider" type="SFNode" fixed="initializeOnlyField" default="CollisionCollection"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                 RigidBodyCollection represents a system of bodies that interact within a single physics model.
source	<xs:element name="RigidBodyCollection">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>       <xs:element name="set_contacts" type="MFNode" fixed="inputOnlyField" default="Contact"/>       <xs:element name="bodies" type="MFNode" fixed="inputOutputField" default="RigidBody"/>       <xs:element name="joints" type="MFNode" fixed="inputOutputField" default="X3DRigidJointNode"/>       <xs:element name="collider" type="SFNode" fixed="initializeOnlyField" default="CollisionCollection"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                 RigidBodyCollection represents a system of bodies that interact within a single physics model.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rigidBodyPhysics.html#RigidBodyCollection"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DChildNode">         <xs:group ref="RigidBodyCollectionContentModel" minOccurs="0"/>         <xs:attribute name="autoDisable" type="SFBool" default="false"/>         <xs:attribute name="constantForceMix" type="SFFloat" default="0.0001"/>         <xs:attribute name="contactSurfaceThickness" type="SFFloat" default="0"/>         <xs:attribute name="disableAngularSpeed" type="SFFloat" default="0"/>         <xs:attribute name="disableLinearSpeed" type="SFFloat" default="0"/>         <xs:attribute name="disableTime" default="0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="enabled" type="SFBool" default="true"/>         <xs:attribute name="errorCorrection" type="SFFloat" default="0.8"/>         <xs:attribute name="gravity" type="SFVec3f" default="0 -9.8 0"/>         <xs:attribute name="iterations" type="SFInt32" default="10"/>         <xs:attribute name="maxCorrectionSpeed" type="SFFloat" default="-1"/>         <xs:attribute name="preferAccuracy" type="SFBool" default="false"/>         <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>         <xs:attribute name="bboxDisplay" type="SFBool" default="false"/>         <xs:attribute name="visible" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute RigidBodyCollection/@autoDisable

type	SFBool
properties	default  false
source	<xs:attribute name="autoDisable" type="SFBool" default="false"/>

attribute RigidBodyCollection/@constantForceMix

type	SFFloat
properties	default  0.0001
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="constantForceMix" type="SFFloat" default="0.0001"/>

attribute RigidBodyCollection/@contactSurfaceThickness

type	SFFloat
properties	default  0
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="contactSurfaceThickness" type="SFFloat" default="0"/>

attribute RigidBodyCollection/@disableAngularSpeed

type	SFFloat
properties	default  0
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="disableAngularSpeed" type="SFFloat" default="0"/>

attribute RigidBodyCollection/@disableLinearSpeed

type	SFFloat
properties	default  0
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="disableLinearSpeed" type="SFFloat" default="0"/>

attribute RigidBodyCollection/@disableTime

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="disableTime" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute RigidBodyCollection/@enabled

type	SFBool
properties	default  true
source	<xs:attribute name="enabled" type="SFBool" default="true"/>

attribute RigidBodyCollection/@errorCorrection

type	SFFloat
properties	default  0.8
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="errorCorrection" type="SFFloat" default="0.8"/>

attribute RigidBodyCollection/@gravity

type	SFVec3f
properties	default  0 -9.8 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="gravity" type="SFVec3f" default="0 -9.8 0"/>

attribute RigidBodyCollection/@iterations

type	SFInt32
properties	default  10
source	<xs:attribute name="iterations" type="SFInt32" default="10"/>

attribute RigidBodyCollection/@maxCorrectionSpeed

type	SFFloat
properties	default  -1
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="maxCorrectionSpeed" type="SFFloat" default="-1"/>

attribute RigidBodyCollection/@preferAccuracy

type	SFBool
properties	default  false
source	<xs:attribute name="preferAccuracy" type="SFBool" default="false"/>

attribute RigidBodyCollection/@bboxCenter

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute RigidBodyCollection/@bboxSize

type	bboxSizeType
properties	default  -1 -1 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source	<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute RigidBodyCollection/@bboxDisplay

type	SFBool
properties	default  false
source	<xs:attribute name="bboxDisplay" type="SFBool" default="false"/>

attribute RigidBodyCollection/@visible

type	SFBool
properties	default  true
source	<xs:attribute name="visible" type="SFBool" default="true"/>

attribute RigidBodyCollection/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
