element CollisionCollection

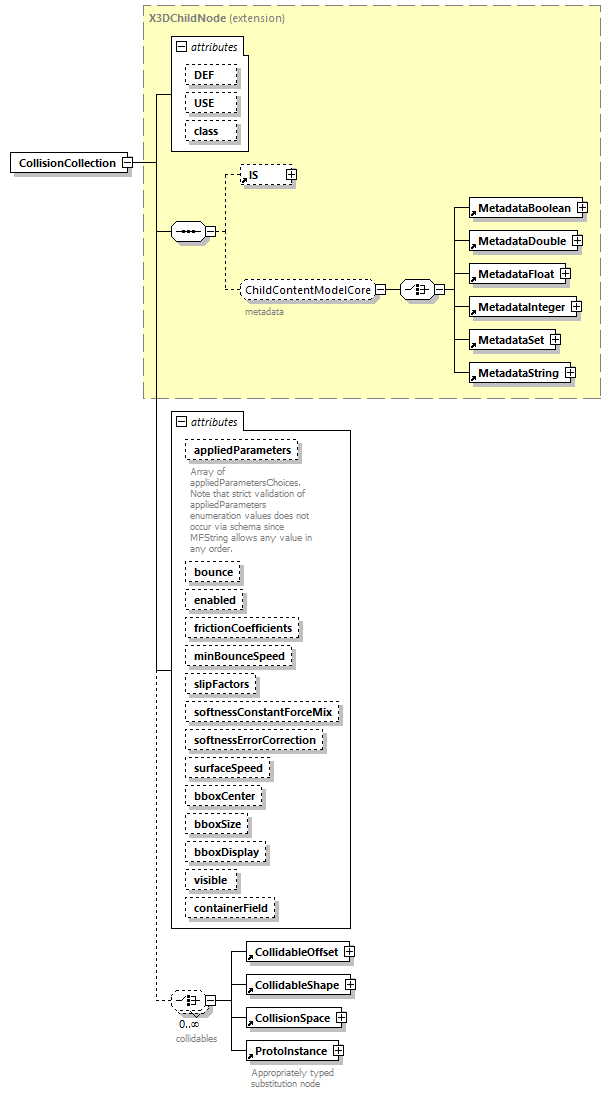

diagram x3d-4.0_diagrams/x3d-4.0_p35.png
type extension of X3DChildNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString CollidableOffset CollidableShape CollisionSpace ProtoInstance
used by
element CollisionSensor
groups RigidBodyCollectionContentModel SceneGraphFragmentContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

appliedParameters  MFString    "BOUNCE"
documentation
Array of appliedParametersChoices. Note that strict validation of appliedParameters enumeration values does not occur via schema since MFString allows any value in any order.
bounce  derived by: SFFloat    0
description  SFString
appinfo
added in X3D version 4
enabled  SFBool    true
frictionCoefficients  SFVec2f    0 0
appinfo
<xs:minInclusive value="0"/>
minBounceSpeed  derived by: SFFloat    0.1
slipFactors  SFVec2f    0 0
softnessConstantForceMix  derived by: SFFloat    0.0001
softnessErrorCorrection  derived by: SFFloat    0.8
surfaceSpeed  SFVec2f    0 0
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
bboxDisplay  SFBool    false
visible  SFBool    true
containerField  xs:NMTOKEN    collider
annotation
appinfo
<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>
<xs:attribute name="appliedParameters" type="appliedParametersChoices"/>
<xs:element name="collidables" type="MFNode" fixed="inputOutputField" default="X3DNBodyCollisionSpaceNode|X3DNBodyCollidableNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                CollisionCollection holds a collection of objects that can be managed as a single entity for resolution of inter-object collisions.

source <xs:element name="CollisionCollection">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>

<xs:attribute name="appliedParameters" type="appliedParametersChoices"/>

<xs:element name="collidables" type="MFNode" fixed="inputOutputField" default="X3DNBodyCollisionSpaceNode|X3DNBodyCollidableNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                CollisionCollection holds a collection of objects that can be managed as a single entity for resolution of inter-object collisions.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rigidBodyPhysics.html#CollisionCollection"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>collidables</xs:documentation>

</xs:annotation>

<xs:element ref="CollidableOffset"/>

<xs:element ref="CollidableShape"/>

<xs:element ref="CollisionSpace"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="appliedParameters" type="MFString" default='"BOUNCE"'>

<xs:annotation>

<xs:documentation>Array of appliedParametersChoices. Note that strict validation of appliedParameters enumeration values does not occur via schema since MFString allows any value in any order.</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="bounce" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="description" type="SFString">

<xs:annotation>

<xs:appinfo>added in X3D version 4</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="enabled" type="SFBool" default="true"/>

<xs:attribute name="frictionCoefficients" type="SFVec2f" default="0 0">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="minBounceSpeed" default="0.1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="slipFactors" type="SFVec2f" default="0 0"/>

<xs:attribute name="softnessConstantForceMix" default="0.0001">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="softnessErrorCorrection" default="0.8">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="surfaceSpeed" type="SFVec2f" default="0 0"/>

<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

<xs:attribute name="bboxDisplay" type="SFBool" default="false"/>

<xs:attribute name="visible" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="collider"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute CollisionCollection/@appliedParameters
type MFString
properties
default "BOUNCE"
annotation
documentation
Array of appliedParametersChoices. Note that strict validation of appliedParameters enumeration values does not occur via schema since MFString allows any value in any order.
source <xs:attribute name="appliedParameters" type="MFString" default='"BOUNCE"'>

<xs:annotation>

<xs:documentation>Array of appliedParametersChoices. Note that strict validation of appliedParameters enumeration values does not occur via schema since MFString allows any value in any order.</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute CollisionCollection/@bounce
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="bounce" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CollisionCollection/@description
type SFString
annotation
appinfo
added in X3D version 4
source <xs:attribute name="description" type="SFString">

<xs:annotation>

<xs:appinfo>added in X3D version 4</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute CollisionCollection/@enabled
type SFBool
properties
default true
source <xs:attribute name="enabled" type="SFBool" default="true"/>

attribute CollisionCollection/@frictionCoefficients
type SFVec2f
properties
default 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation
appinfo
<xs:minInclusive value="0"/>
source <xs:attribute name="frictionCoefficients" type="SFVec2f" default="0 0">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute CollisionCollection/@minBounceSpeed
type restriction of SFFloat
properties
default 0.1
facets
Kind Value Annotation
minInclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="minBounceSpeed" default="0.1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CollisionCollection/@slipFactors
type SFVec2f
properties
default 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="slipFactors" type="SFVec2f" default="0 0"/>

attribute CollisionCollection/@softnessConstantForceMix
type restriction of SFFloat
properties
default 0.0001
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="softnessConstantForceMix" default="0.0001">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CollisionCollection/@softnessErrorCorrection
type restriction of SFFloat
properties
default 0.8
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="softnessErrorCorrection" default="0.8">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CollisionCollection/@surfaceSpeed
type SFVec2f
properties
default 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="surfaceSpeed" type="SFVec2f" default="0 0"/>

attribute CollisionCollection/@bboxCenter
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute CollisionCollection/@bboxSize
type bboxSizeType
properties
default -1 -1 -1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute CollisionCollection/@bboxDisplay
type SFBool
properties
default false
source <xs:attribute name="bboxDisplay" type="SFBool" default="false"/>

attribute CollisionCollection/@visible
type SFBool
properties
default true
source <xs:attribute name="visible" type="SFBool" default="true"/>

attribute CollisionCollection/@containerField
type xs:NMTOKEN
properties
default collider
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="collider"/>
