complexType X3DChildNode

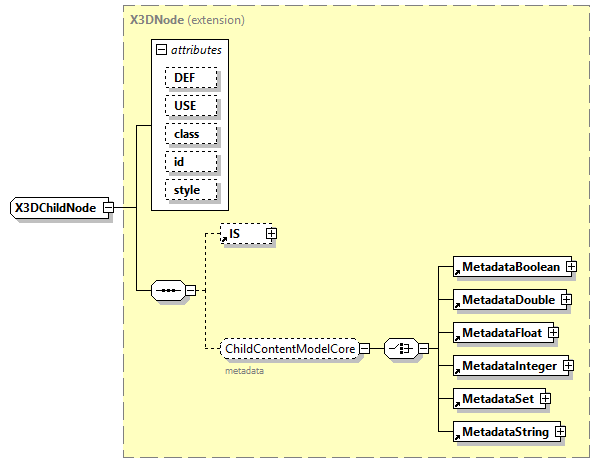

diagram x3d-4.0_diagrams/x3d-4.0_p331.png
type extension of X3DNode
properties
base X3DNode
abstract true
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements BooleanFilter BooleanToggle ClipPlane CollisionCollection DISEntityManager EaseInEaseOut GeoLOD HAnimHumanoid HAnimJoint HAnimMotion Inline LocalFog NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSet NurbsSurfaceInterpolator RigidBodyCollection StaticGroup ViewpointGroup
complexTypes X3DBindableNode X3DFollowerNode X3DGroupingNode X3DInfoNode X3DInterpolatorNode X3DLayoutNode X3DLightNode X3DNBodyCollidableNode X3DProductStructureChildNode X3DSensorNode X3DSequencerNode X3DShapeNode X3DSoundNode X3DTimeDependentNode X3DTriggerNode X3DVolumeDataNode
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                A node that implements X3DChildNode is one of the legal children for a X3DGroupingNode parent.

source <xs:complexType name="X3DChildNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                A node that implements X3DChildNode is one of the legal children for a X3DGroupingNode parent.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/core.html#X3DChildNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DNode"/>

</xs:complexContent>
</xs:complexType>
