element LocalFog

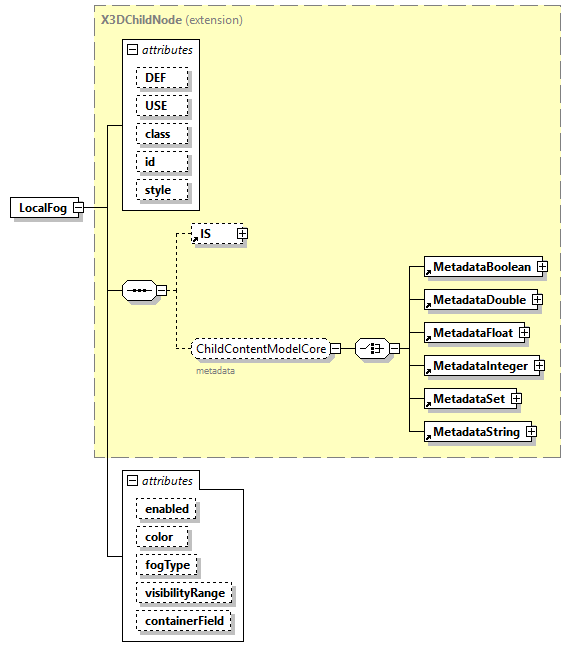

diagram x3d-4.0_diagrams/x3d-4.0_p133.png
type extension of X3DChildNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

enabled  SFBool    true
color  SFColor    1 1 1
fogType  fogTypeChoices    LINEAR
visibilityRange  derived by: SFFloat    0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="additionalInterface" type="xs:string" default="X3DFogObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:element name="LocalFog">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DFogObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/environmentalEffects.html#LocalFog"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:attribute name="enabled" type="SFBool" default="true"/>

<xs:attribute name="color" type="SFColor" default="1 1 1"/>

<xs:attribute name="fogType" type="fogTypeChoices" default="LINEAR"/>

<xs:attribute name="visibilityRange" default="0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute LocalFog/@enabled
type SFBool
properties
default true
source <xs:attribute name="enabled" type="SFBool" default="true"/>

attribute LocalFog/@color
type SFColor
properties
default 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="color" type="SFColor" default="1 1 1"/>

attribute LocalFog/@fogType
type fogTypeChoices
properties
default LINEAR
facets
Kind Value Annotation
enumeration LINEAR
appinfo
linear blending as a function of distance
enumeration EXPONENTIAL
appinfo
exponential blending as a function of distance
source <xs:attribute name="fogType" type="fogTypeChoices" default="LINEAR"/>

attribute LocalFog/@visibilityRange
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="visibilityRange" default="0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute LocalFog/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
