complexType X3DNode

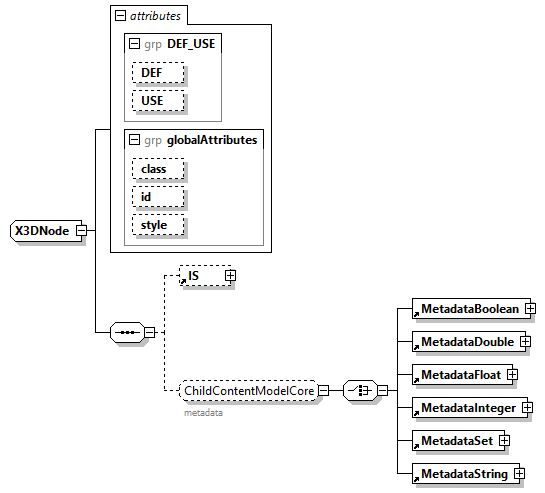

diagram x3d-4.0_diagrams/x3d-4.0_p358.png
properties
abstract true
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements Contact Contour2D GeoOrigin LayerSet LayoutGroup MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataString NurbsTextureCoordinate RigidBody TextureProperties
complexTypes X3DAppearanceChildNode X3DAppearanceNode X3DChildNode X3DGeometricPropertyNode X3DGeometryNode X3DLayerNode X3DNBodyCollisionSpaceNode X3DNurbsControlCurveNode X3DParticleEmitterNode X3DParticlePhysicsModelNode X3DRigidJointNode X3DVolumeRenderStyleNode
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

annotation
appinfo
<xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS">
<xs:annotation>
<xs:appinfo>
                            IS/connect statements define prototype connections between ProtoInterface fields and node fields within a ProtoBody.
                        </xs:appinfo>
<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/concepts.html#PrototypeSemantics"/>
</xs:annotation>
</xs:element>
<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject">
<xs:annotation>
<xs:appinfo>
                            Information about this node can be contained in a MetadataBoolean, MetadataDouble, MetadataFloat, MetadataInteger, MetadataString or MetadataSet node.
                        </xs:appinfo>
<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/core.html#Metadata"/>
</xs:annotation>
</xs:element>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                All instantiable nodes implement X3DNode, which corresponds to SFNode in the X3D specification.

source <xs:complexType name="X3DNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS">

<xs:annotation>

<xs:appinfo>
                            IS/connect statements define prototype connections between ProtoInterface fields and node fields within a ProtoBody.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/concepts.html#PrototypeSemantics"/>

</xs:annotation>

</xs:element>

<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject">

<xs:annotation>

<xs:appinfo>
                            Information about this node can be contained in a MetadataBoolean, MetadataDouble, MetadataFloat, MetadataInteger, MetadataString or MetadataSet node.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/core.html#Metadata"/>

</xs:annotation>

</xs:element>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                All instantiable nodes implement X3DNode, which corresponds to SFNode in the X3D specification.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/core.html#X3DNode"/>

</xs:annotation>

<xs:sequence>

<xs:element ref="IS" minOccurs="0"/>

<xs:group ref="ChildContentModelCore" minOccurs="0">

<xs:annotation>

<xs:documentation>metadata</xs:documentation>

</xs:annotation>

</xs:group>

</xs:sequence>

<xs:attributeGroup ref="DEF_USE"/>

<xs:attributeGroup ref="globalAttributes"/>

<!-- complexContent extension not used since X3DNode is a top-level node type -->
</xs:complexType>
