complexType X3DParticleEmitterNode

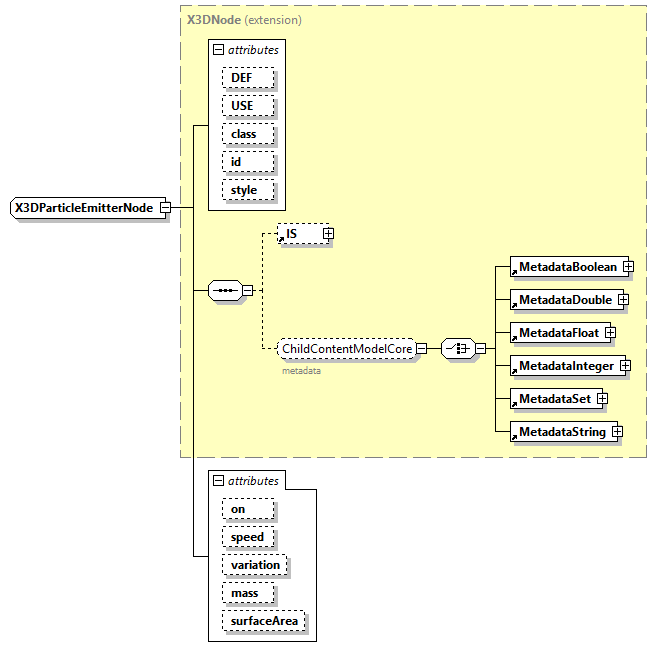

diagram
type	extension of X3DNode
properties	base  X3DNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  ConeEmitter ExplosionEmitter PointEmitter PolylineEmitter SurfaceEmitter VolumeEmitter
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 on   SFBool      true      speed   derived by: SFFloat      0      variation   derived by: SFFloat      0.25      mass   derived by: SFFloat      0      surfaceArea   derived by: SFFloat      0
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="ParticleSystems"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 The X3DParticleEmitterNode abstract type represents any node that is an emitter of particles.
source	<xs:complexType name="X3DParticleEmitterNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="ParticleSystems"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 The X3DParticleEmitterNode abstract type represents any node that is an emitter of particles.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/particleSystems.html#X3DParticleEmitterNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DNode">       <xs:attribute name="on" type="SFBool" default="true"/>       <xs:attribute name="speed" default="0">         <!-- type="SFFloatNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="variation" default="0.25">         <!-- type="SFFloatNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="mass" default="0">         <!-- type="SFFloatNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="surfaceArea" default="0">         <!-- type="SFFloatNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DParticleEmitterNode/@on

type	SFBool
properties	default  true
source	<xs:attribute name="on" type="SFBool" default="true"/>

attribute X3DParticleEmitterNode/@speed

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="speed" default="0">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DParticleEmitterNode/@variation

type	restriction of SFFloat
properties	default  0.25
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="variation" default="0.25">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DParticleEmitterNode/@mass

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="mass" default="0">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DParticleEmitterNode/@surfaceArea

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="surfaceArea" default="0">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>
