complexType X3DLayerNode

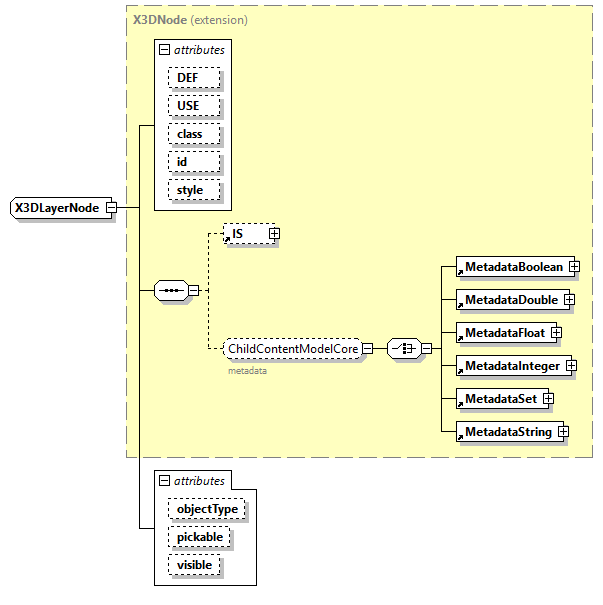

diagram x3d-4.0_diagrams/x3d-4.0_p350.png
type extension of X3DNode
properties
base X3DNode
abstract true
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements Layer LayoutLayer
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

objectType  MFString    "ALL"
pickable  SFBool    true
visible  SFBool    true
annotation
appinfo
<xs:attribute name="additionalInterface" type="xs:string" default="X3DPickableObject"/>
<!-- optional values, can be extended -->
<xs:attribute name="objectType" type="pickableObjectTypeValues"/>
<xs:element name="viewport" type="SFNode" fixed="inputOutputField" default="X3DViewportNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Layering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                The X3DLayerNode abstract node type is the base node type for layer nodes.

source <xs:complexType name="X3DLayerNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DPickableObject"/>

<!-- optional values, can be extended -->

<xs:attribute name="objectType" type="pickableObjectTypeValues"/>

<xs:element name="viewport" type="SFNode" fixed="inputOutputField" default="X3DViewportNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Layering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                The X3DLayerNode abstract node type is the base node type for layer nodes.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/layering.html#X3DLayerNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DNode">

<xs:attribute name="objectType" type="MFString" default='"ALL"'/>

<xs:attribute name="pickable" type="SFBool" default="true"/>

<xs:attribute name="visible" type="SFBool" default="true"/>

</xs:extension>

<!-- Viewport node handled as part of nodes implementing this interface, since including it here leads to a nondeterministic content model. -->

</xs:complexContent>
</xs:complexType>

attribute X3DLayerNode/@objectType
type MFString
properties
default "ALL"
source <xs:attribute name="objectType" type="MFString" default='"ALL"'/>

attribute X3DLayerNode/@pickable
type SFBool
properties
default true
source <xs:attribute name="pickable" type="SFBool" default="true"/>

attribute X3DLayerNode/@visible
type SFBool
properties
default true
source <xs:attribute name="visible" type="SFBool" default="true"/>
