element SliderJoint

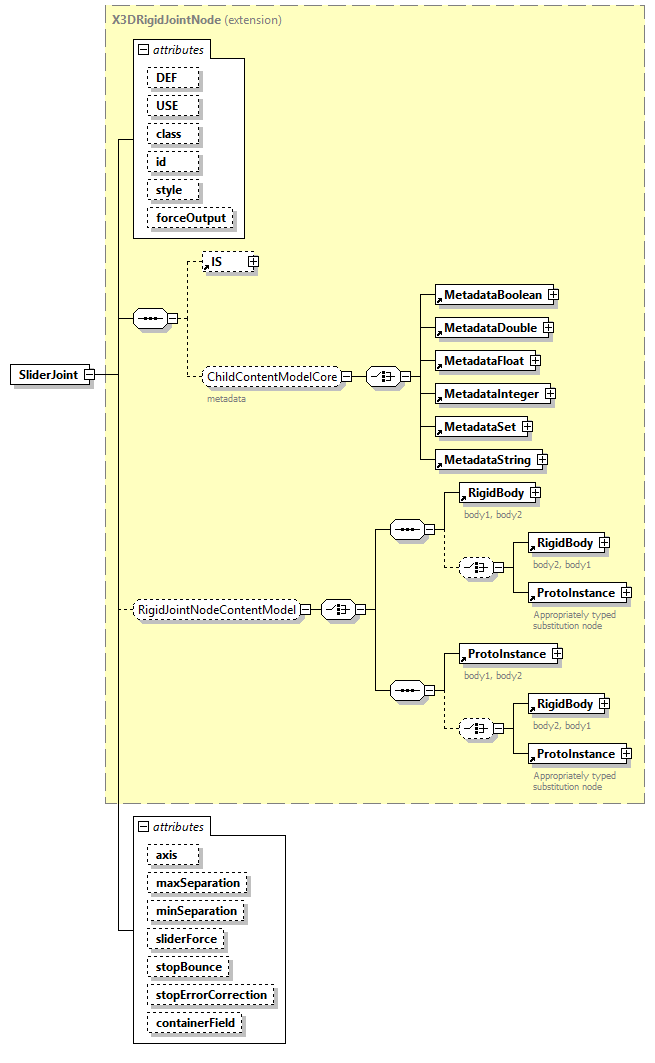

diagram x3d-4.0_diagrams/x3d-4.0_p223.png
type extension of X3DRigidJointNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString RigidBody ProtoInstance
used by
groups RigidBodyCollectionContentModel SceneGraphFragmentContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

forceOutput  MFString    "NONE"
axis  SFVec3f    0 1 0
maxSeparation  SFFloat    1
minSeparation  SFFloat    0
sliderForce  SFFloat    0
stopBounce  SFFloat    0
stopErrorCorrection  SFFloat    1
containerField  xs:NMTOKEN    joints
annotation
appinfo
<xs:attribute name="separation" fixed="outputOnlyField" type="SFFloat"/>
<xs:attribute name="separationRate" fixed="outputOnlyField" type="SFFloat"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                SliderJoint constrains all movement between body1 and body2 along a single axis.
                Contains two RigidBody nodes (containerField values body1, body2).

source <xs:element name="SliderJoint">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="separation" fixed="outputOnlyField" type="SFFloat"/>

<xs:attribute name="separationRate" fixed="outputOnlyField" type="SFFloat"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                SliderJoint constrains all movement between body1 and body2 along a single axis.
                Contains two RigidBody nodes (containerField values body1, body2).

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/rigidBodyPhysics.html#SliderJoint"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DRigidJointNode">

<xs:attribute name="axis" type="SFVec3f" default="0 1 0"/>

<xs:attribute name="maxSeparation" type="SFFloat" default="1"/>

<xs:attribute name="minSeparation" type="SFFloat" default="0"/>

<xs:attribute name="sliderForce" type="SFFloat" default="0"/>

<xs:attribute name="stopBounce" type="SFFloat" default="0"/>

<xs:attribute name="stopErrorCorrection" type="SFFloat" default="1"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="joints"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute SliderJoint/@axis
type SFVec3f
properties
default 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="axis" type="SFVec3f" default="0 1 0"/>

attribute SliderJoint/@maxSeparation
type SFFloat
properties
default 1
source <xs:attribute name="maxSeparation" type="SFFloat" default="1"/>

attribute SliderJoint/@minSeparation
type SFFloat
properties
default 0
source <xs:attribute name="minSeparation" type="SFFloat" default="0"/>

attribute SliderJoint/@sliderForce
type SFFloat
properties
default 0
source <xs:attribute name="sliderForce" type="SFFloat" default="0"/>

attribute SliderJoint/@stopBounce
type SFFloat
properties
default 0
source <xs:attribute name="stopBounce" type="SFFloat" default="0"/>

attribute SliderJoint/@stopErrorCorrection
type SFFloat
properties
default 1
source <xs:attribute name="stopErrorCorrection" type="SFFloat" default="1"/>

attribute SliderJoint/@containerField
type xs:NMTOKEN
properties
default joints
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="joints"/>
