element unit

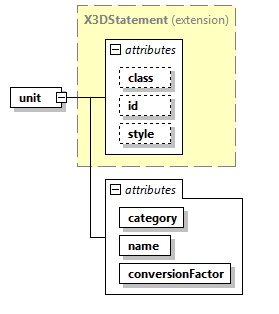

diagram x3d-4.0_diagrams/x3d-4.0_p242.png
type extension of SceneGraphStructureStatement
properties
content complex
used by
element head
attributes
Name  Type  Use  Default  Fixed  Annotation
category  unitCategoryChoices  required
name  xs:NMTOKEN  required
conversionFactor  derived by: SFDouble  required
appinfo

Warning: conversionFactor is required and must be specified in source document.
annotation
appinfo
<!-- provide default value for API; explicit definition still required in XML documents to avoid assumption errors -->
<xs:attribute name="conversionFactor" type="SFDouble" default="1.0"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Functional summary: unit statement defines data-conversion factors for typed values defined in a scene.
source <xs:element name="unit">

<xs:annotation>

<xs:appinfo>

<!-- provide default value for API; explicit definition still required in XML documents to avoid assumption errors -->

<xs:attribute name="conversionFactor" type="SFDouble" default="1.0"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Functional summary: unit statement defines data-conversion factors for typed values defined in a scene.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/core.html#UNITStatement"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="SceneGraphStructureStatement">

<xs:attribute name="category" type="unitCategoryChoices" use="required"/>

<xs:attribute name="name" type="xs:NMTOKEN" use="required">

<xs:annotation>

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>

</xs:attribute>

<xs:attribute name="conversionFactor" use="required">

<xs:annotation>

<xs:appinfo>
Warning: conversionFactor is required and must be specified in source document.
</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFDouble">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute unit/@category
type unitCategoryChoices
properties
use required
facets
Kind Value Annotation
enumeration angle
appinfo
angle default is radians
enumeration force
appinfo
force default is newtons
enumeration length
appinfo
length default is meters
enumeration mass
appinfo
mass default is kilograms
source <xs:attribute name="category" type="unitCategoryChoices" use="required"/>

attribute unit/@name
type xs:NMTOKEN
properties
use required
source <xs:attribute name="name" type="xs:NMTOKEN" use="required">

<xs:annotation>

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>
</xs:attribute>

attribute unit/@conversionFactor
type restriction of SFDouble
properties
use required
facets
Kind Value Annotation
minExclusive 0
annotation
appinfo

Warning: conversionFactor is required and must be specified in source document.
source <xs:attribute name="conversionFactor" use="required">

<xs:annotation>

<xs:appinfo>
Warning: conversionFactor is required and must be specified in source document.
</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFDouble">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>
