element GeoTransform

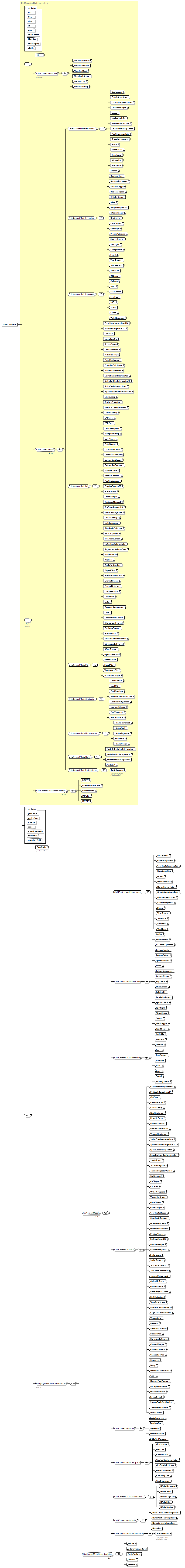

diagram x3d-4.0_diagrams/x3d-4.0_p98.png
type extension of X3DGroupingNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D ClipPlane EaseInEaseOut EnvironmentLight LinePickSensor PickableGroup PointPickSensor PrimitivePickSensor VolumePickSensor SplinePositionInterpolator SplinePositionInterpolator2D SplineScalarInterpolator SquadOrientationInterpolator StaticGroup TextureProjector TextureProjectorParallel CADAssembly CADLayer CADPart OrthoViewpoint ViewpointGroup ColorChaser ColorDamper CoordinateChaser CoordinateDamper OrientationChaser OrientationDamper PositionChaser PositionChaser2D PositionDamper PositionDamper2D ScalarChaser ScalarDamper TexCoordChaser2D TexCoordDamper2D TextureBackground CollidableShape CollisionSensor RigidBodyCollection ParticleSystem TransformSensor IsoSurfaceVolumeData SegmentedVolumeData VolumeData Analyser AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource OscillatorSource SpatialSound StreamAudioDestination StreamAudioSource WaveShaper EspduTransform ReceiverPdu SignalPdu TransmitterPdu DISEntityManager GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoViewpoint GeoTransform HAnimHumanoid HAnimJoint HAnimSegment HAnimSite HAnimMotion NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT GeoOrigin
used by
elements GeoMetadata TransformSensor
groups ChildContentModelGeoSpatial PickSensorGroupingNodeContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
bboxDisplay  SFBool    false
visible  SFBool    true
geoCenter  SFVec3d    0 0 0
geoSystem  geoSystemType    "GD" "WE"
rotation  SFRotation    0 0 1 0
scale  SFVec3f    1 1 1
appinfo
<xs:minExclusive value="0"/>
scaleOrientation  SFRotation    0 0 1 0
translation  SFVec3f    0 0 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="GeoTransform">

<xs:annotation>

<xs:appinfo>

<xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-CD1/Part01/components/geospatial.html#GeoTransform"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGroupingNode">

<xs:sequence minOccurs="0">

<xs:element ref="GeoOrigin">

<xs:annotation>

<!-- allow GeoOrigin at beginning, middle or end -->

<xs:documentation>geoOrigin SFNode</xs:documentation>

</xs:annotation>

</xs:element>

<xs:group ref="GroupingNodeChildContentModel">

<xs:annotation>

<xs:documentation>children</xs:documentation>

</xs:annotation>

</xs:group>

</xs:sequence>

<xs:attribute name="geoCenter" type="SFVec3d" default="0 0 0"/>

<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

<xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

<xs:attribute name="scale" type="SFVec3f" default="1 1 1">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="scaleOrientation" type="SFRotation" default="0 0 1 0"/>

<xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute GeoTransform/@geoCenter
type SFVec3d
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="geoCenter" type="SFVec3d" default="0 0 0"/>

attribute GeoTransform/@geoSystem
type geoSystemType
properties
default "GD" "WE"
source <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoTransform/@rotation
type SFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

attribute GeoTransform/@scale
type SFVec3f
properties
default 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation
appinfo
<xs:minExclusive value="0"/>
source <xs:attribute name="scale" type="SFVec3f" default="1 1 1">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute GeoTransform/@scaleOrientation
type SFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="scaleOrientation" type="SFRotation" default="0 0 1 0"/>

attribute GeoTransform/@translation
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

attribute GeoTransform/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
