element CADPart

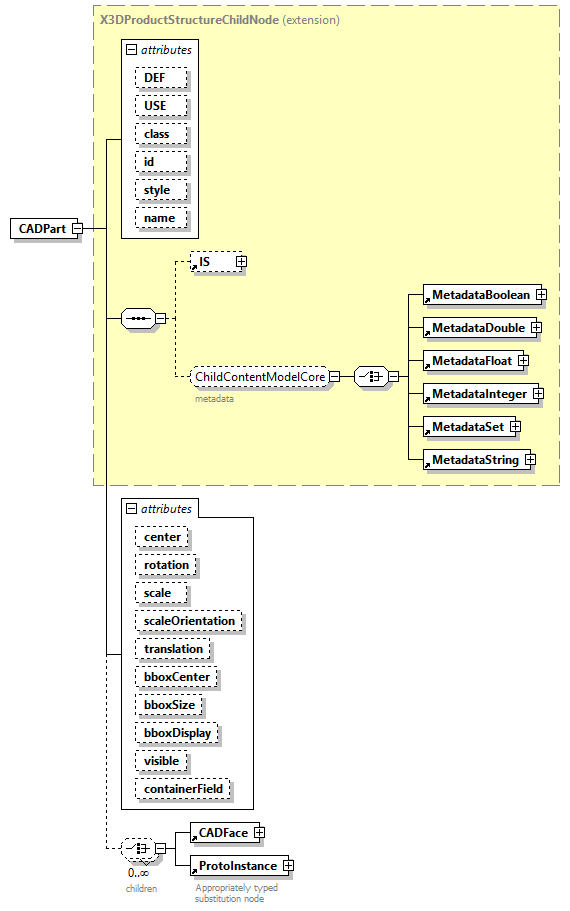

diagram
type	extension of X3DProductStructureChildNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString CADFace ProtoInstance
used by	element  TransformSensor groups  ChildContentModelFull PickSensorGroupingNodeContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 name   SFString            appinfo name attribute is ordinarily required, unless this is a USE node center   SFVec3f      0 0 0      rotation   SFRotation      0 0 1 0      scale   SFVec3f      1 1 1      scaleOrientation   SFRotation      0 0 1 0      translation   SFVec3f      0 0 0      bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      bboxDisplay   SFBool      false      visible   SFBool      true      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="addChildren" type="MFNode" fixed="inputOnlyField" default="CADFace"> <xs:annotation> <xs:documentation>CADPart implements X3DGroupingNode but can only contain CADFace or ProtoInstance nodes</xs:documentation> </xs:annotation> </xs:element> <xs:element name="removeChildren" type="MFNode" fixed="inputOnlyField" default="CADFace"/> <xs:element name="children" type="MFNode" fixed="inputOutputField" default="CADFace"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DGroupingNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="CADGeometry"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="CADPart">   <xs:annotation>     <xs:appinfo>       <xs:element name="addChildren" type="MFNode" fixed="inputOnlyField" default="CADFace">         <xs:annotation>           <xs:documentation>CADPart implements X3DGroupingNode but can only contain CADFace or ProtoInstance nodes</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="removeChildren" type="MFNode" fixed="inputOnlyField" default="CADFace"/>       <xs:element name="children" type="MFNode" fixed="inputOutputField" default="CADFace"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DGroupingNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="CADGeometry"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/CADGeometry.html#CADPart"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DProductStructureChildNode">         <xs:choice minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>children</xs:documentation>           </xs:annotation>           <xs:element ref="CADFace"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="center" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>         <xs:attribute name="scale" type="SFVec3f" default="1 1 1"/>         <xs:attribute name="scaleOrientation" type="SFRotation" default="0 0 1 0"/>         <xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>         <xs:attribute name="bboxDisplay" type="SFBool" default="false"/>         <xs:attribute name="visible" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- additional contained element (node) content -->       <!-- additional contained attribute (simple-type) content, matching X3DGroupingNode -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute CADPart/@center

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

attribute CADPart/@rotation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

attribute CADPart/@scale

type	SFVec3f
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="scale" type="SFVec3f" default="1 1 1"/>

attribute CADPart/@scaleOrientation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="scaleOrientation" type="SFRotation" default="0 0 1 0"/>

attribute CADPart/@translation

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

attribute CADPart/@bboxCenter

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute CADPart/@bboxSize

type	bboxSizeType
properties	default  -1 -1 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source	<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute CADPart/@bboxDisplay

type	SFBool
properties	default  false
source	<xs:attribute name="bboxDisplay" type="SFBool" default="false"/>

attribute CADPart/@visible

type	SFBool
properties	default  true
source	<xs:attribute name="visible" type="SFBool" default="true"/>

attribute CADPart/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
