element SpatialSound

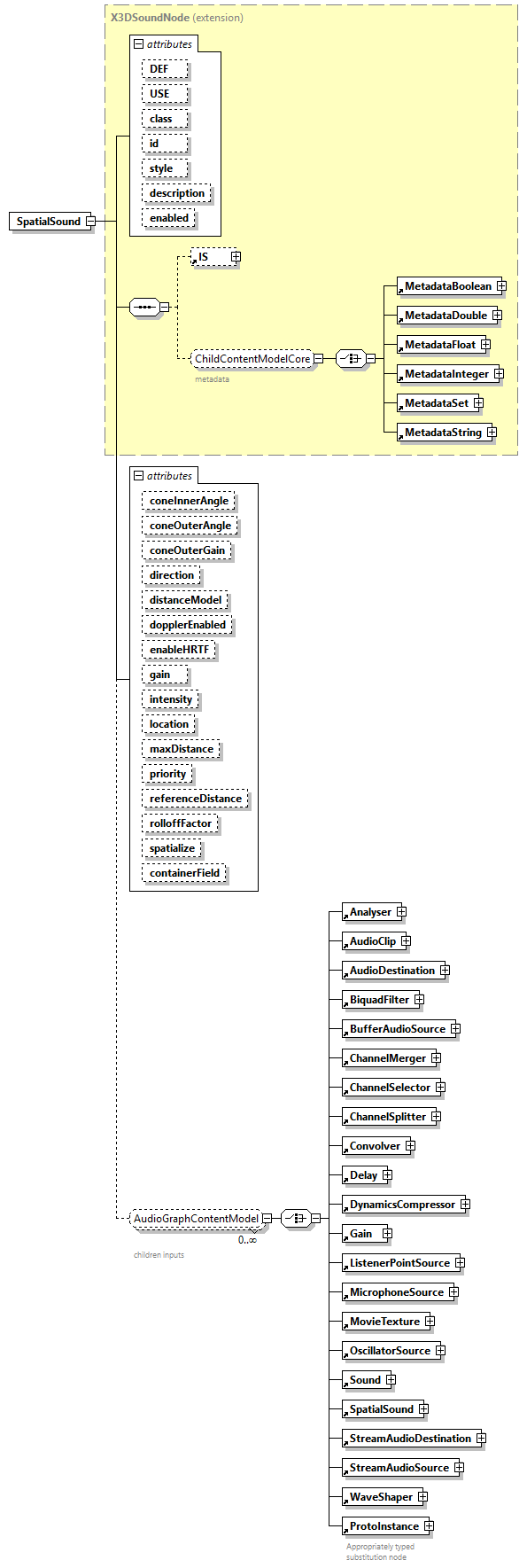

diagram
type	extension of X3DSoundNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Analyser AudioClip AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource MovieTexture OscillatorSource Sound SpatialSound StreamAudioDestination StreamAudioSource WaveShaper ProtoInstance
used by	groups  AudioGraphContentModel ChildContentModelFull
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            enabled   SFBool      true      coneInnerAngle   derived by: SFFloat      6.2832      appinfo range [0..2pi] coneOuterAngle   derived by: SFFloat      6.2832      appinfo range [0..2pi] coneOuterGain   SFFloat      0      direction   SFVec3f      0 0 1      distanceModel   distanceModelChoices      INVERSE      dopplerEnabled   SFBool      false      enableHRTF   SFBool      false      gain   SFFloat      1      intensity   unitIntervalType      1      location   SFVec3f      0 0 0      maxDistance   derived by: SFFloat      10000      priority   unitIntervalType      0      referenceDistance   derived by: SFFloat      1      rolloffFactor   derived by: SFFloat      1      spatialize   SFBool      true      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="SpatialSound">   <xs:annotation>     <xs:appinfo>       <xs:element name="children" type="MFNode" fixed="inputOutputField" default="Analyser|AudioClip|AudioDestination|BiquadFilter|BufferAudioSource|ChannelMerger|ChannelSelector|ChannelSplitter|Convolver|Delay|DynamicsCompressor|Gain|ListenerPointSource|MicrophoneSource|MovieTexture|OscillatorSource|Sound|SpatialSound|StreamAudioDestination|StreamAudioSource|WaveShaper"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/sound.html#Sound"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DSoundNode">         <xs:group ref="AudioGraphContentModel" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>children inputs</xs:documentation>           </xs:annotation>         </xs:group>         <xs:attribute name="coneInnerAngle" default="6.2832">           <xs:annotation>             <xs:appinfo>range [0..2pi]</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="6.2832"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="coneOuterAngle" default="6.2832">           <xs:annotation>             <xs:appinfo>range [0..2pi]</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="6.2832"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="coneOuterGain" type="SFFloat" default="0"/>         <xs:attribute name="direction" type="SFVec3f" default="0 0 1"/>         <xs:attribute name="distanceModel" type="distanceModelChoices" default="INVERSE"/>         <xs:attribute name="dopplerEnabled" type="SFBool" default="false"/>         <xs:attribute name="enableHRTF" type="SFBool" default="false"/>         <xs:attribute name="gain" type="SFFloat" default="1"/>         <xs:attribute name="intensity" type="unitIntervalType" default="1"/>         <xs:attribute name="location" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="maxDistance" default="10000">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="priority" type="unitIntervalType" default="0"/>         <xs:attribute name="referenceDistance" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="rolloffFactor" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="spatialize" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!--<xs:group ref="SoundChildContentModel" minOccurs="0"/>-->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute SpatialSound/@coneInnerAngle

type	restriction of SFFloat
properties	default  6.2832
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  6.2832 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo range [0..2pi]
source	<xs:attribute name="coneInnerAngle" default="6.2832">   <xs:annotation>     <xs:appinfo>range [0..2pi]</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="6.2832"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpatialSound/@coneOuterAngle

type	restriction of SFFloat
properties	default  6.2832
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  6.2832 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo range [0..2pi]
source	<xs:attribute name="coneOuterAngle" default="6.2832">   <xs:annotation>     <xs:appinfo>range [0..2pi]</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="6.2832"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpatialSound/@coneOuterGain

type	SFFloat
properties	default  0
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="coneOuterGain" type="SFFloat" default="0"/>

attribute SpatialSound/@direction

type	SFVec3f
properties	default  0 0 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="direction" type="SFVec3f" default="0 0 1"/>

attribute SpatialSound/@distanceModel

type	distanceModelChoices
properties	default  INVERSE
facets	Kind  Value  Annotation enumeration  LINEAR appinfo <xs:attribute name="alias" type="xs:string" default="linear"/>                         X3D version of "linear" in Web Audio API.                     enumeration  INVERSE appinfo <xs:attribute name="alias" type="xs:string" default="inverse"/>                         X3D version of "inverse" in Web Audio API.                     enumeration  EXPONENTIAL appinfo <xs:attribute name="alias" type="xs:string" default="exponential"/>                         X3D version of "exponential" in Web Audio API.
source	<xs:attribute name="distanceModel" type="distanceModelChoices" default="INVERSE"/>

attribute SpatialSound/@dopplerEnabled

type	SFBool
properties	default  false
source	<xs:attribute name="dopplerEnabled" type="SFBool" default="false"/>

attribute SpatialSound/@enableHRTF

type	SFBool
properties	default  false
source	<xs:attribute name="enableHRTF" type="SFBool" default="false"/>

attribute SpatialSound/@gain

type	SFFloat
properties	default  1
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="gain" type="SFFloat" default="1"/>

attribute SpatialSound/@intensity

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="intensity" type="unitIntervalType" default="1"/>

attribute SpatialSound/@location

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="location" type="SFVec3f" default="0 0 0"/>

attribute SpatialSound/@maxDistance

type	restriction of SFFloat
properties	default  10000
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="maxDistance" default="10000">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpatialSound/@priority

type	unitIntervalType
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="priority" type="unitIntervalType" default="0"/>

attribute SpatialSound/@referenceDistance

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="referenceDistance" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpatialSound/@rolloffFactor

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="rolloffFactor" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpatialSound/@spatialize

type	SFBool
properties	default  true
source	<xs:attribute name="spatialize" type="SFBool" default="true"/>

attribute SpatialSound/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
