element IsoSurfaceVolumeData

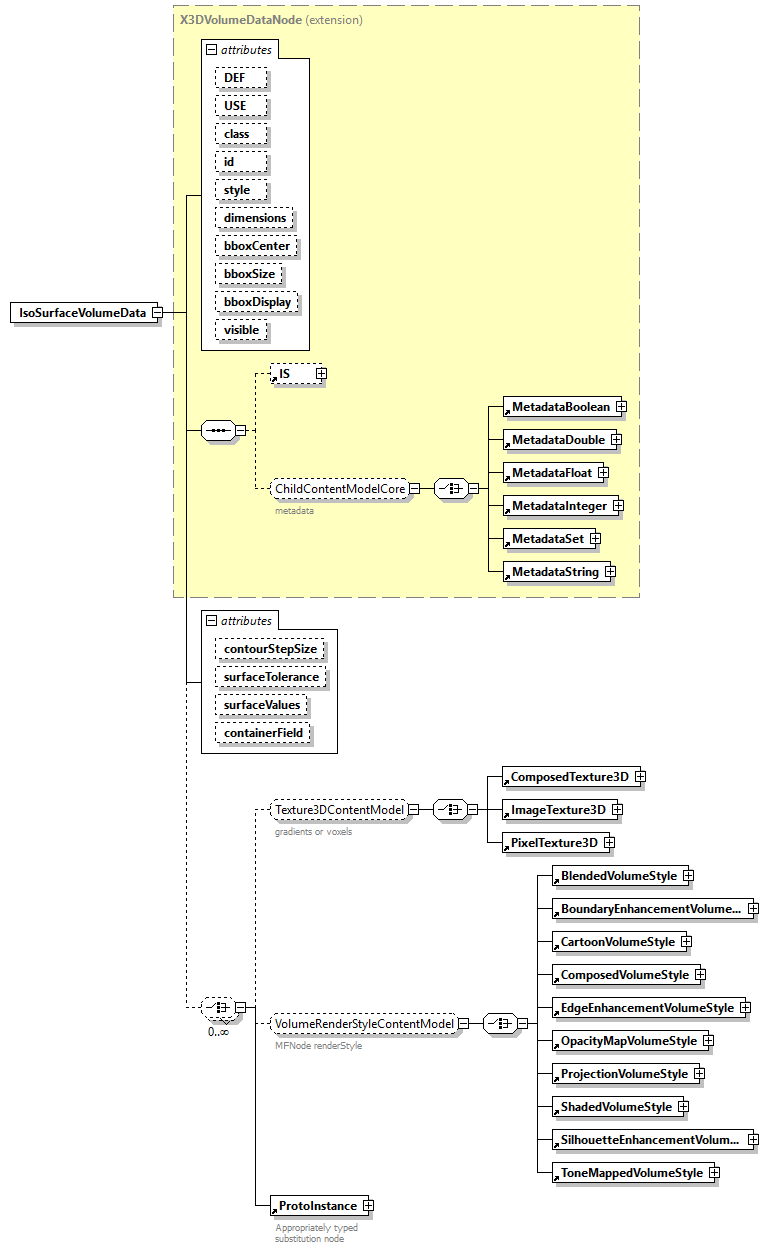

diagram x3d-4.0_diagrams/x3d-4.0_p121.png
type extension of X3DVolumeDataNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ComposedTexture3D ImageTexture3D PixelTexture3D BlendedVolumeStyle BoundaryEnhancementVolumeStyle CartoonVolumeStyle ComposedVolumeStyle EdgeEnhancementVolumeStyle OpacityMapVolumeStyle ProjectionVolumeStyle ShadedVolumeStyle SilhouetteEnhancementVolumeStyle ToneMappedVolumeStyle ProtoInstance
used by
group ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

dimensions  SFVec3f    1 1 1
appinfo
<xs:minExclusive value="0"/>
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
bboxDisplay  SFBool    false
visible  SFBool    true
contourStepSize  SFFloat    0
surfaceTolerance  derived by: SFFloat    0
surfaceValues  MFFloat
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:element name="gradients" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>
<xs:element name="renderStyle" type="MFNode" fixed="inputOutputField" default="X3DVolumeRenderStyleNode"/>
<xs:element name="voxels" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="IsoSurfaceVolumeData">

<xs:annotation>

<xs:appinfo>

<xs:element name="gradients" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>

<xs:element name="renderStyle" type="MFNode" fixed="inputOutputField" default="X3DVolumeRenderStyleNode"/>

<xs:element name="voxels" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/volume.html#IsoSurfaceVolumeData"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DVolumeDataNode">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:group ref="Texture3DContentModel" minOccurs="0">

<xs:annotation>

<xs:documentation>gradients or voxels</xs:documentation>

</xs:annotation>

</xs:group>

<xs:group ref="VolumeRenderStyleContentModel" minOccurs="0">

<xs:annotation>

<xs:documentation>MFNode renderStyle</xs:documentation>

</xs:annotation>

</xs:group>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="contourStepSize" type="SFFloat" default="0"/>

<xs:attribute name="surfaceTolerance" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="surfaceValues" type="MFFloat"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute IsoSurfaceVolumeData/@contourStepSize
type SFFloat
properties
default 0
facets
Kind Value Annotation
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="contourStepSize" type="SFFloat" default="0"/>

attribute IsoSurfaceVolumeData/@surfaceTolerance
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="surfaceTolerance" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute IsoSurfaceVolumeData/@surfaceValues
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="surfaceValues" type="MFFloat"/>

attribute IsoSurfaceVolumeData/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
