element CoordinateDouble

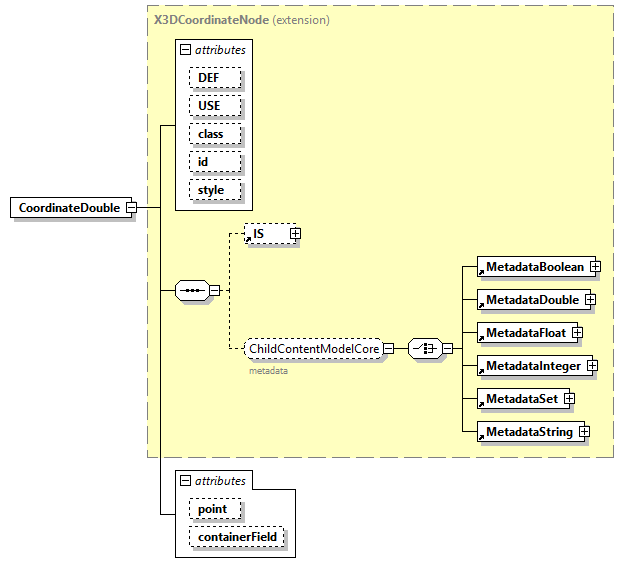

diagram x3d-4.0_diagrams/x3d-4.0_p58.png
type extension of X3DCoordinateNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements HAnimHumanoid NurbsCurve NurbsOrientationInterpolator NurbsPatchSurface NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsTrimmedSurface PolylineEmitter VolumeEmitter
groups ColorCoordinateContentModel ColorCoordinateNormalTexCoordContentModel ComposedGeometryContentModel SceneGraphFragmentContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

point  MFVec3d
containerField  containerFieldChoicesX3DCoordinateNode    coord
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="CoordinateDouble">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/nurbs.html#CoordinateDouble"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DCoordinateNode">

<xs:attribute name="point" type="MFVec3d"/>

<xs:attribute name="containerField" type="containerFieldChoicesX3DCoordinateNode" default="coord"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute CoordinateDouble/@point
type MFVec3d
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="point" type="MFVec3d"/>

attribute CoordinateDouble/@containerField
type containerFieldChoicesX3DCoordinateNode
properties
default coord
facets
Kind Value Annotation
enumeration coord
appinfo
parent node is a geometry node
enumeration controlPoint
appinfo
parent node is a Nurbs node
enumeration skinCoord
appinfo
parent node is HAnimHumanoid
enumeration skinBindingCoords
appinfo
parent node is HAnimHumanoid, added in X3D version 4
source <xs:attribute name="containerField" type="containerFieldChoicesX3DCoordinateNode" default="coord"/>
