element ScreenFontStyle

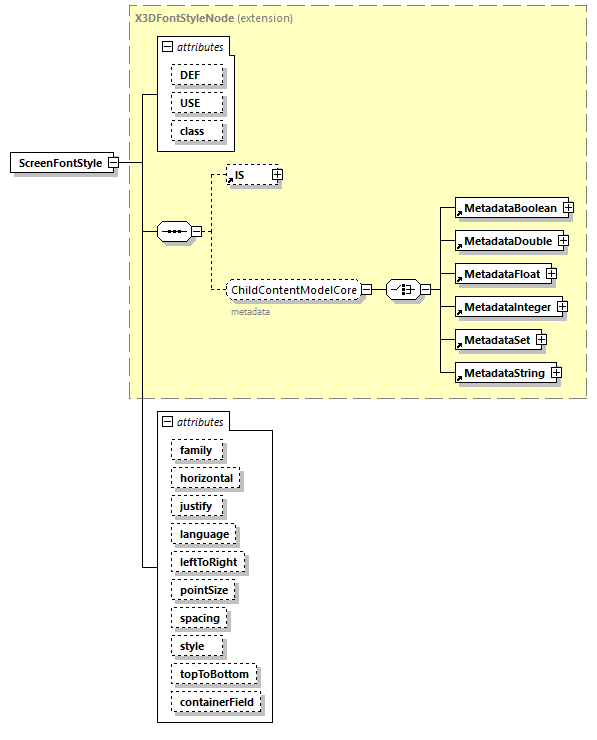

diagram
type	extension of X3DFontStyleNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	groups  SceneGraphFragmentContentModel TextChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 family   MFString      "SERIF"      horizontal   SFBool      true      justify   justifyChoices      "BEGIN"      language   SFString            leftToRight   SFBool      true      pointSize   derived by: SFFloat      12.0      spacing   derived by: SFFloat      1.0      style   fontStyleChoices      PLAIN      appinfo                                 The style field can also be used for Cascading Style Sheets (CSS) style values.                             topToBottom   SFBool      true      containerField   xs:NMTOKEN      fontStyle
annotation	appinfo <!-- optional values, can be extended --> <xs:attribute name="family" type="fontFamilyValues" fixed="inputOutputField"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Layout"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="ScreenFontStyle">   <xs:annotation>     <xs:appinfo>       <!-- optional values, can be extended -->       <xs:attribute name="family" type="fontFamilyValues" fixed="inputOutputField"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Layout"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/layout.html#ScreenFontStyle"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DFontStyleNode">         <xs:attribute name="family" type="MFString" default='"SERIF"'/>         <xs:attribute name="horizontal" type="SFBool" default="true"/>         <xs:attribute name="justify" type="justifyChoices" default='"BEGIN"'/>         <xs:attribute name="language" type="SFString"/>         <xs:attribute name="leftToRight" type="SFBool" default="true"/>         <xs:attribute name="pointSize" default="12.0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="spacing" default="1.0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="style" type="fontStyleChoices" default="PLAIN">           <xs:annotation>             <xs:appinfo>                                 The style field can also be used for Cascading Style Sheets (CSS) style values.                             </xs:appinfo>             <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/htmlGuidelines.html#CSS"/>           </xs:annotation>         </xs:attribute>         <xs:attribute name="topToBottom" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="fontStyle"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ScreenFontStyle/@family

type	MFString
properties	default  "SERIF"
source	<xs:attribute name="family" type="MFString" default='"SERIF"'/>

attribute ScreenFontStyle/@horizontal

type	SFBool
properties	default  true
source	<xs:attribute name="horizontal" type="SFBool" default="true"/>

attribute ScreenFontStyle/@justify

type	justifyChoices
properties	default  "BEGIN"
facets	Kind  Value  Annotation enumeration  "MIDDLE" enumeration  "MIDDLE" "BEGIN" enumeration  "MIDDLE" "END" enumeration  "MIDDLE" "FIRST" enumeration  "MIDDLE" "MIDDLE" enumeration  "BEGIN" enumeration  "BEGIN" "BEGIN" enumeration  "BEGIN" "END" enumeration  "BEGIN" "FIRST" enumeration  "BEGIN" "MIDDLE" enumeration  "END" enumeration  "END" "BEGIN" enumeration  "END" "END" enumeration  "END" "FIRST" enumeration  "END" "MIDDLE" enumeration  "FIRST" enumeration  "FIRST" "BEGIN" enumeration  "FIRST" "END" enumeration  "FIRST" "FIRST" enumeration  "FIRST" "MIDDLE"
source	<xs:attribute name="justify" type="justifyChoices" default='"BEGIN"'/>

attribute ScreenFontStyle/@language

type	SFString
source	<xs:attribute name="language" type="SFString"/>

attribute ScreenFontStyle/@leftToRight

type	SFBool
properties	default  true
source	<xs:attribute name="leftToRight" type="SFBool" default="true"/>

attribute ScreenFontStyle/@pointSize

type	restriction of SFFloat
properties	default  12.0
facets	Kind  Value  Annotation minExclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="pointSize" default="12.0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute ScreenFontStyle/@spacing

type	restriction of SFFloat
properties	default  1.0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="spacing" default="1.0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute ScreenFontStyle/@style

type	fontStyleChoices
properties	default  PLAIN
facets	Kind  Value  Annotation enumeration  PLAIN appinfo default plain type enumeration  BOLD appinfo boldface type enumeration  ITALIC appinfo italic type enumeration  BOLDITALIC appinfo bold and italic type
annotation	appinfo                                 The style field can also be used for Cascading Style Sheets (CSS) style values.
source	<xs:attribute name="style" type="fontStyleChoices" default="PLAIN">   <xs:annotation>     <xs:appinfo>                                 The style field can also be used for Cascading Style Sheets (CSS) style values.                             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/htmlGuidelines.html#CSS"/>   </xs:annotation> </xs:attribute>

attribute ScreenFontStyle/@topToBottom

type	SFBool
properties	default  true
source	<xs:attribute name="topToBottom" type="SFBool" default="true"/>

attribute ScreenFontStyle/@containerField

type	xs:NMTOKEN
properties	default  fontStyle
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="fontStyle"/>
