complexType SignatureType

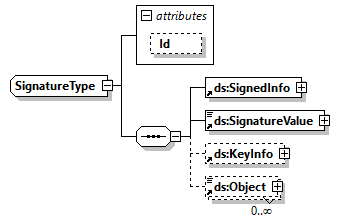

diagram x3d-4.0_diagrams/x3d-4.0_p454.png
namespace http://www.w3.org/2000/09/xmldsig#
children ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by
element Signature
attributes
Name  Type  Use  Default  Fixed  Annotation
Id  xs:ID  optional
source <xs:complexType name="SignatureType">

<xs:sequence>

<xs:element ref="ds:SignedInfo"/>

<xs:element ref="ds:SignatureValue"/>

<xs:element ref="ds:KeyInfo" minOccurs="0"/>

<xs:element ref="ds:Object" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="Id" type="ID" use="optional"/>
</xs:complexType>

attribute SignatureType/@Id
type xs:ID
properties
use optional
source <xs:attribute name="Id" type="ID" use="optional"/>
