complexType X3DGroupingNode

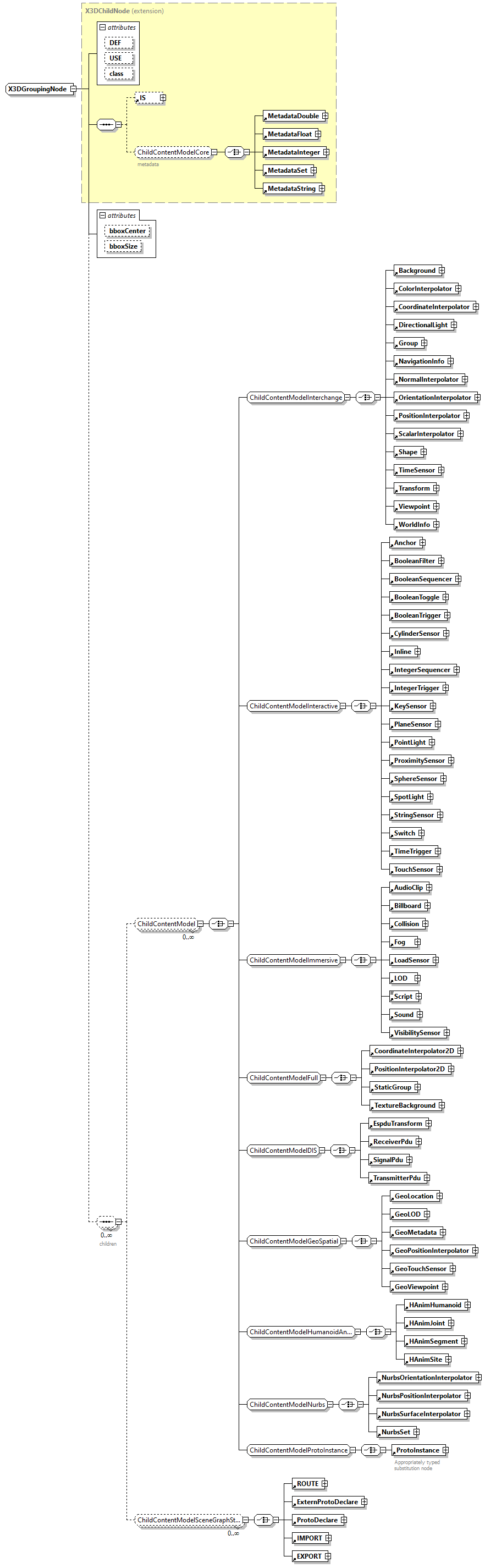

diagram x3d-3.0_diagrams/x3d-3.0_p194.png
type extension of X3DChildNode
properties
base X3DChildNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by
elements Anchor Billboard Collision EspduTransform GeoLocation Group HAnimSegment HAnimSite LOD Switch Transform
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
annotation
appinfo
<xs:element name="addChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="removeChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="children" type="MFNode" fixed="inputOutputField" default="X3DChildNode"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Grouping nodes can contain other nodes as children, thus making up the backbone of a scene graph.
source <xs:complexType name="X3DGroupingNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:element name="addChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="removeChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="children" type="MFNode" fixed="inputOutputField" default="X3DChildNode"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Grouping nodes can contain other nodes as children, thus making up the backbone of a scene graph.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/group.html#X3DGroupingNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>children</xs:documentation>

</xs:annotation>

<xs:group ref="ChildContentModel" minOccurs="0" maxOccurs="unbounded"/>

<xs:group ref="ChildContentModelSceneGraphStructure" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

</xs:extension>

<!-- bboxDisplay, visible added in X3D version 4.0 -->

</xs:complexContent>
</xs:complexType>

attribute X3DGroupingNode/@bboxCenter
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute X3DGroupingNode/@bboxSize
type bboxSizeType
properties
default -1 -1 -1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>
