element ProximitySensor

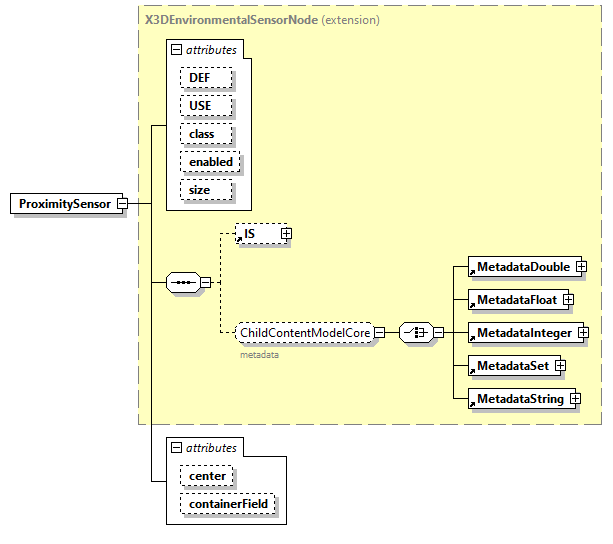

diagram x3d-3.0_diagrams/x3d-3.0_p111.png
type extension of X3DEnvironmentalSensorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInteractive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
enabled  SFBool    true
size  SFVec3f    0 0 0
appinfo
<xs:minInclusive value="0"/>
center  SFVec3f    0 0 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="enterTime" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="exitTime" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="centerOfRotation_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="orientation_changed" type="SFRotation" fixed="outputOnlyField">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:attribute>
<xs:attribute name="position_changed" type="SFVec3f" fixed="outputOnlyField">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:attribute>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="ProximitySensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="enterTime" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="exitTime" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="centerOfRotation_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="orientation_changed" type="SFRotation" fixed="outputOnlyField">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="position_changed" type="SFVec3f" fixed="outputOnlyField">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/envsensor.html#ProximitySensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DEnvironmentalSensorNode">

<xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ProximitySensor/@center
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

attribute ProximitySensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
