element Script

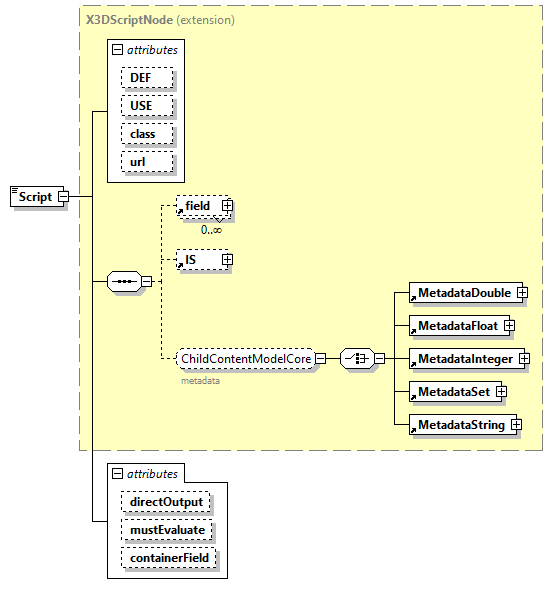

diagram x3d-3.0_diagrams/x3d-3.0_p117.png
type extension of X3DScriptNode
properties
content complex
mixed true
children field IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
groups ChildContentModelImmersive LoadSensorChildContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
directOutput  SFBool    false
mustEvaluate  SFBool    false
containerField  containerFieldChoicesX3DUrlObject    children
annotation
appinfo
<xs:element name="field" type="MFNode" default="field"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Scripting"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Script">

<xs:annotation>

<xs:appinfo>

<xs:element name="field" type="MFNode" default="field"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Scripting"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/scripting.html#Script"/>

</xs:annotation>

<xs:complexType mixed="true">

<xs:complexContent>

<xs:extension base="X3DScriptNode">

<xs:attribute name="directOutput" type="SFBool" default="false"/>

<xs:attribute name="mustEvaluate" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="containerFieldChoicesX3DUrlObject" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Script/@directOutput
type SFBool
properties
default false
source <xs:attribute name="directOutput" type="SFBool" default="false"/>

attribute Script/@mustEvaluate
type SFBool
properties
default false
source <xs:attribute name="mustEvaluate" type="SFBool" default="false"/>

attribute Script/@containerField
type containerFieldChoicesX3DUrlObject
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
parent node has abstract type X3DGroupingNode
enumeration watchList
appinfo
parent node is LoadSensor
source <xs:attribute name="containerField" type="containerFieldChoicesX3DUrlObject" default="children"/>
