element ExternProtoDeclare

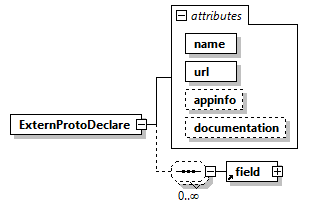

diagram x3d-3.0_diagrams/x3d-3.0_p34.png
type extension of SceneGraphStructureStatement
properties
content complex
children field
used by
group ChildContentModelSceneGraphStructure
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:NMTOKEN  required
url  MFString  required
appinfo  SFString
documentation  SFString
annotation
appinfo
<xs:element name="field" type="MFNode" default="field"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DChildNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
ExternProtoDeclare refers to a ProtoDeclare node declaration provided in another file.
ExternProtoDeclare interfaces are defined by field statements (and without IS/connect statements).
source <xs:element name="ExternProtoDeclare">

<xs:annotation>

<xs:appinfo>

<xs:element name="field" type="MFNode" default="field"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DChildNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
ExternProtoDeclare refers to a ProtoDeclare node declaration provided in another file.
ExternProtoDeclare interfaces are defined by field statements (and without IS/connect statements).
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/concepts.html#Externalprototypesemantics"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="SceneGraphStructureStatement">

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element ref="field"/>

</xs:sequence>

<xs:attribute name="name" type="xs:NMTOKEN" use="required">

<xs:annotation>

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>

</xs:attribute>

<xs:attribute name="url" type="MFString" use="required"/>

<xs:attribute name="appinfo" type="SFString"/>

<xs:attribute name="documentation" type="SFString"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ExternProtoDeclare/@name
type xs:NMTOKEN
properties
use required
source <xs:attribute name="name" type="xs:NMTOKEN" use="required">

<xs:annotation>

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>
</xs:attribute>

attribute ExternProtoDeclare/@url
type MFString
properties
use required
source <xs:attribute name="url" type="MFString" use="required"/>

attribute ExternProtoDeclare/@appinfo
type SFString
source <xs:attribute name="appinfo" type="SFString"/>

attribute ExternProtoDeclare/@documentation
type SFString
source <xs:attribute name="documentation" type="SFString"/>
