element WorldInfo

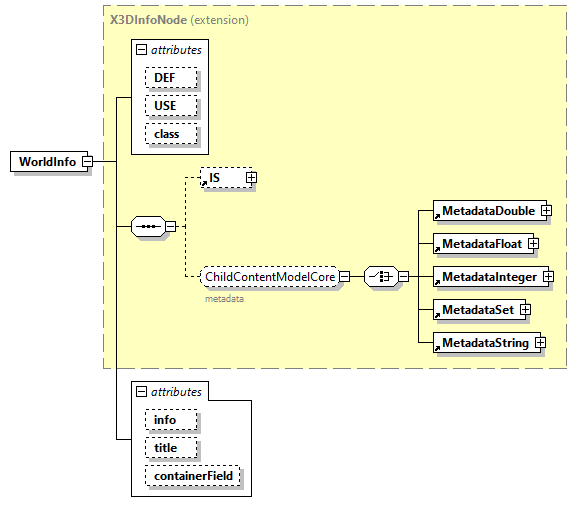

diagram x3d-3.0_diagrams/x3d-3.0_p143.png
type extension of X3DInfoNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
info  MFString
title  SFString
containerField  xs:NMTOKEN    children
annotation
appinfo

WorldInfo contains a title and simple persistent metadata information about an X3D scene.
This node is strictly for documentation purposes and has no effect on the visual appearance or behaviour of the world.
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="WorldInfo">

<xs:annotation>

<xs:appinfo>
WorldInfo contains a title and simple persistent metadata information about an X3D scene.
This node is strictly for documentation purposes and has no effect on the visual appearance or behaviour of the world.
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/core.html#WorldInfo"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DInfoNode">

<xs:attribute name="info" type="MFString"/>

<xs:attribute name="title" type="SFString"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute WorldInfo/@info
type MFString
source <xs:attribute name="info" type="MFString"/>

attribute WorldInfo/@title
type SFString
source <xs:attribute name="title" type="SFString"/>

attribute WorldInfo/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
