element LOD

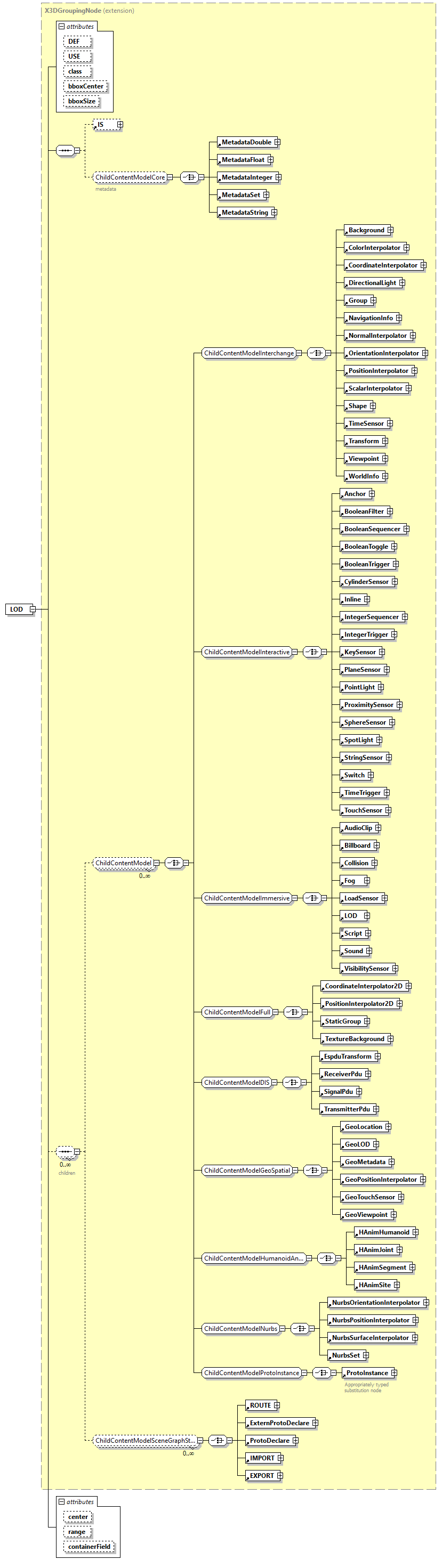

diagram x3d-3.0_diagrams/x3d-3.0_p72.png
type extension of X3DGroupingNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by
group ChildContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
center  SFVec3f    0 0 0
range  MFFloat
containerField  containerFieldChoicesGroupLODShapeTransform    children
annotation
appinfo
<xs:attribute name="center" type="SFVec3f" default="0 0 0" fixed="initializeOnlyField"/>
<!-- level_changed added in X3D version 3.1 -->
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="LOD">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="center" type="SFVec3f" default="0 0 0" fixed="initializeOnlyField"/>

<!-- level_changed added in X3D version 3.1 -->

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/navigation.html#LOD"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGroupingNode">

<xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="range" type="MFFloat"/>

<xs:attribute name="containerField" type="containerFieldChoicesGroupLODShapeTransform" default="children"/>

</xs:extension>

<!-- forceTransitions added in X3D version 3.1 -->

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute LOD/@center
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

attribute LOD/@range
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="range" type="MFFloat"/>

attribute LOD/@containerField
type containerFieldChoicesGroupLODShapeTransform
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
parent node has abstract type X3DGroupingNode
enumeration proxy
appinfo
parent node is Collision
enumeration rootNode
appinfo
parent node is GeoLOD
enumeration shape
appinfo
parent node is CADFace or CollidableShape
enumeration skin
appinfo
parent node is HAnimHumanoid
source <xs:attribute name="containerField" type="containerFieldChoicesGroupLODShapeTransform" default="children"/>
