element DirectionalLight

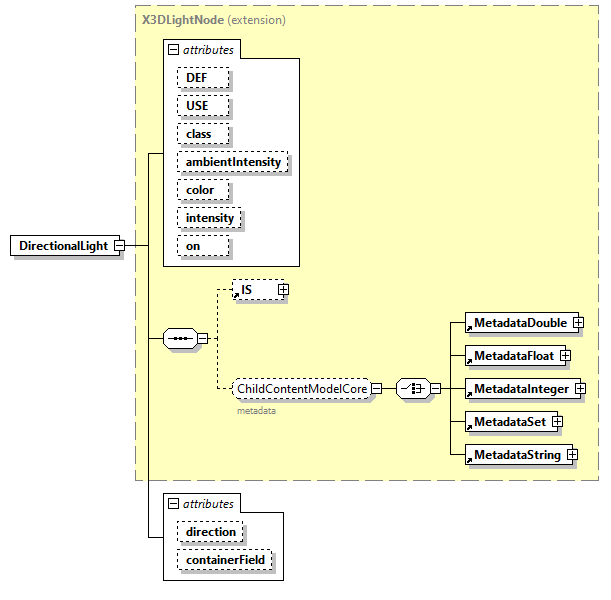

diagram
type	extension of X3DLightNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelInterchange
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. ambientIntensity   unitIntervalType      0      color   SFColor      1 1 1      intensity   unitIntervalType      1      on   SFBool      true      direction   SFVec3f      0 0 -1      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> DirectionalLight might not be scoped by parent Group or Transform at levels 1 or 2.
source	<xs:element name="DirectionalLight">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> DirectionalLight might not be scoped by parent Group or Transform at levels 1 or 2. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/lighting.html#DirectionalLight"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DLightNode">         <xs:attribute name="direction" type="SFVec3f" default="0 0 -1"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- global field in X3D version 3.1 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute DirectionalLight/@direction

type	SFVec3f
properties	default  0 0 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="direction" type="SFVec3f" default="0 0 -1"/>

attribute DirectionalLight/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
