element LoadSensor

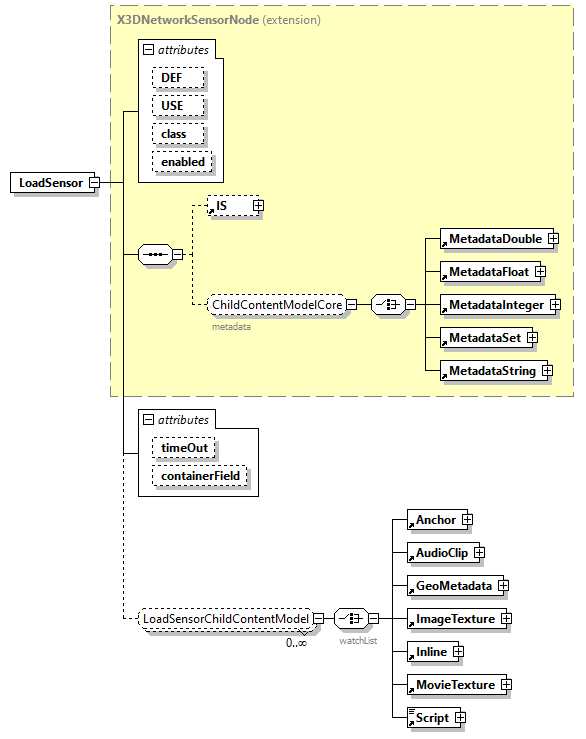

diagram x3d-3.0_diagrams/x3d-3.0_p71.png
type extension of X3DNetworkSensorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Anchor AudioClip GeoMetadata ImageTexture Inline MovieTexture Script
used by
group ChildContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
enabled  SFBool    true
timeOut  derived by: SFTime    0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="isLoaded" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="loadTime" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="progress" type="SFFloat" fixed="outputOnlyField"/>
<xs:element name="watchList" type="MFNode" fixed="inputOutputField" default="X3DUrlObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="LoadSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="isLoaded" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="loadTime" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="progress" type="SFFloat" fixed="outputOnlyField"/>

<xs:element name="watchList" type="MFNode" fixed="inputOutputField" default="X3DUrlObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/networking.html#LoadSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DNetworkSensorNode">

<xs:group ref="LoadSensorChildContentModel" minOccurs="0" maxOccurs="unbounded"/>

<xs:attribute name="timeOut" default="0">

<!-- specification comment submitted -->

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute LoadSensor/@timeOut
type restriction of SFTime
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="timeOut" default="0">

<!-- specification comment submitted -->

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute LoadSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
