element HAnimSite

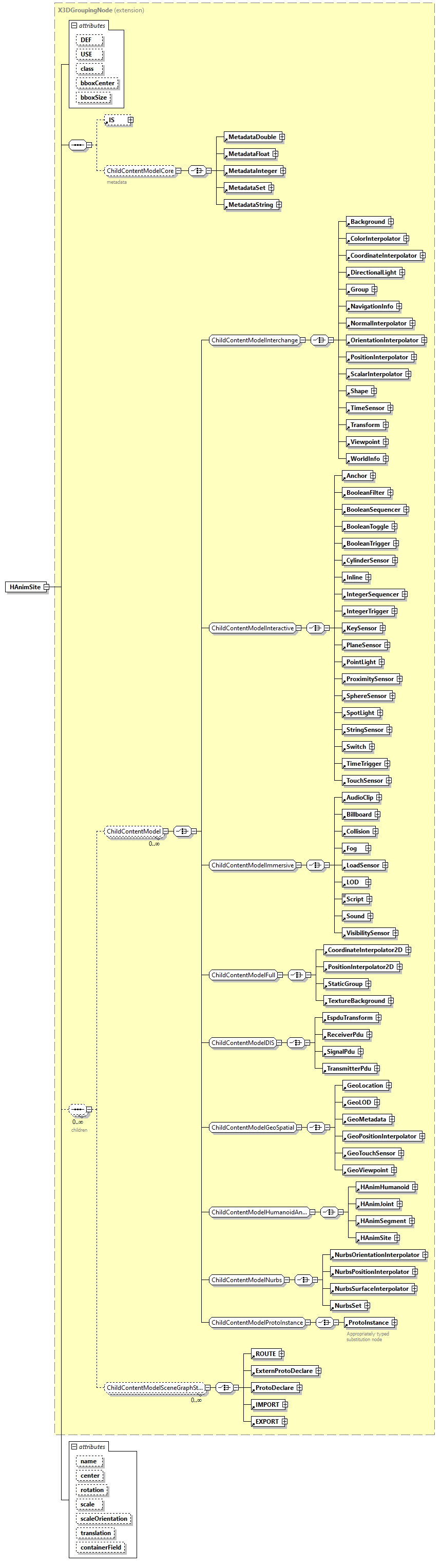

diagram x3d-3.0_diagrams/x3d-3.0_p55.png
type extension of X3DGroupingNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by
element HAnimHumanoid
group ChildContentModelHumanoidAnimation
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
name  xs:NMTOKEN
appinfo
name attribute is ordinarily required, unless this is a USE node
center  SFVec3f    0 0 0
rotation  SFRotation    0 0 1 0
scale  SFVec3f    1 1 1
appinfo
<xs:minExclusive value="0"/>
scaleOrientation  SFRotation    0 0 1 0
translation  SFVec3f    0 0 0
containerField  containerFieldChoicesHAnimSite    children
annotation
appinfo
<xs:attribute name="name" type="hanimFeaturePointNameValues">
<!-- TODO regex pattern -->
<xs:annotation>
<xs:appinfo>
                            HAnimSite/HAnimDisplacer name fields must append suffix (_view _tip _pt) based on functional purpose, thus strict hanimFeaturePointNameValues validation is turned off by default.
                        </xs:appinfo>
<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>
</xs:annotation>
</xs:attribute>
<xs:attribute name="componentName" type="componentNameChoices" fixed="H-Anim"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="HAnimSite">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="name" type="hanimFeaturePointNameValues">

<!-- TODO regex pattern -->

<xs:annotation>

<xs:appinfo>
                            HAnimSite/HAnimDisplacer name fields must append suffix (_view _tip _pt) based on functional purpose, thus strict hanimFeaturePointNameValues validation is turned off by default.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>

</xs:attribute>

<xs:attribute name="componentName" type="componentNameChoices" fixed="H-Anim"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/hanim.html#HAnimSite"/>

<!-- HAnim specification https://www.web3d.org/documents/specifications/19774/V1.0/HAnim/ObjectInterfaces.html#Site -->

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGroupingNode">

<xs:attribute name="name" type="xs:NMTOKEN">

<xs:annotation>

<xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>

</xs:attribute>

<xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

<xs:attribute name="scale" type="SFVec3f" default="1 1 1">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="scaleOrientation" type="SFRotation" default="0 0 1 0"/>

<xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="containerFieldChoicesHAnimSite" default="children"/>

</xs:extension>

<!-- description added in X3D version 4.0 -->

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute HAnimSite/@name
type xs:NMTOKEN
annotation
appinfo
name attribute is ordinarily required, unless this is a USE node
source <xs:attribute name="name" type="xs:NMTOKEN">

<xs:annotation>

<xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>
</xs:attribute>

attribute HAnimSite/@center
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

attribute HAnimSite/@rotation
type SFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

attribute HAnimSite/@scale
type SFVec3f
properties
default 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation
appinfo
<xs:minExclusive value="0"/>
source <xs:attribute name="scale" type="SFVec3f" default="1 1 1">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute HAnimSite/@scaleOrientation
type SFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="scaleOrientation" type="SFRotation" default="0 0 1 0"/>

attribute HAnimSite/@translation
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

attribute HAnimSite/@containerField
type containerFieldChoicesHAnimSite
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
parent node is HAnimSegment
enumeration sites
appinfo
parent node is HAnimHumanoid, typically as a USE node
enumeration skeleton
appinfo
parent node is HAnimHumanoid
enumeration viewpoints
appinfo
parent node is HAnimHumanoid
source <xs:attribute name="containerField" type="containerFieldChoicesHAnimSite" default="children"/>
