element NurbsSurfaceInterpolator

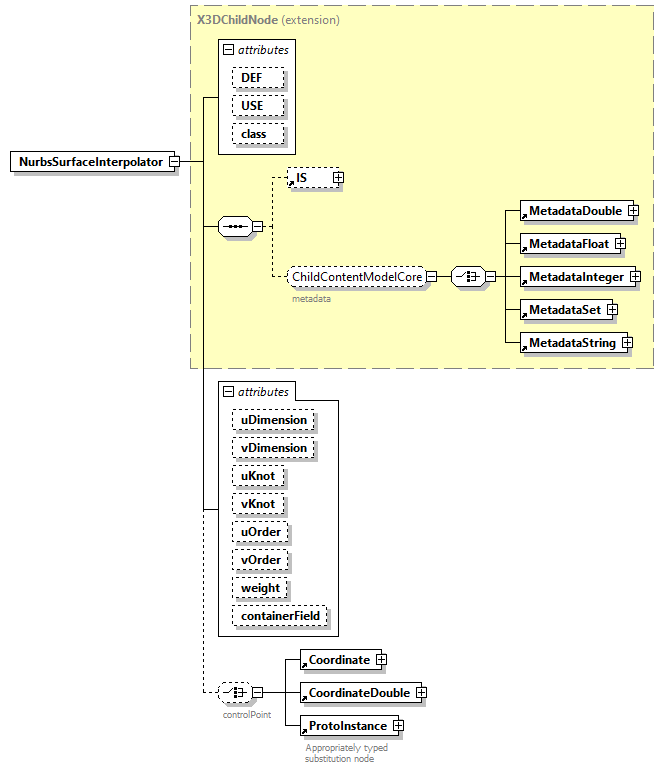

diagram x3d-3.0_diagrams/x3d-3.0_p93.png
type extension of X3DChildNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Coordinate CoordinateDouble ProtoInstance
used by
group ChildContentModelNurbs
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
uDimension  derived by: SFInt32    0
vDimension  derived by: SFInt32    0
uKnot  MFDouble
vKnot  MFDouble
uOrder  derived by: SFInt32    3
vOrder  derived by: SFInt32    3
weight  MFDouble
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="set_fraction" type="SFVec2f" fixed="inputOnlyField"/>
<xs:attribute name="position_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="normal_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="NurbsSurfaceInterpolator">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="set_fraction" type="SFVec2f" fixed="inputOnlyField"/>

<xs:attribute name="position_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="normal_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsSurfaceInterpolator"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:choice minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>controlPoint</xs:documentation>

</xs:annotation>

<xs:element ref="Coordinate"/>

<xs:element ref="CoordinateDouble"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="uDimension" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="vDimension" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="uKnot" type="MFDouble"/>

<xs:attribute name="vKnot" type="MFDouble"/>

<xs:attribute name="uOrder" default="3">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="2"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="vOrder" default="3">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="2"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="weight" type="MFDouble"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NurbsSurfaceInterpolator/@uDimension
type restriction of SFInt32
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="uDimension" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NurbsSurfaceInterpolator/@vDimension
type restriction of SFInt32
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="vDimension" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NurbsSurfaceInterpolator/@uKnot
type MFDouble
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="uKnot" type="MFDouble"/>

attribute NurbsSurfaceInterpolator/@vKnot
type MFDouble
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="vKnot" type="MFDouble"/>

attribute NurbsSurfaceInterpolator/@uOrder
type restriction of SFInt32
properties
default 3
facets
Kind Value Annotation
minInclusive 2
source <xs:attribute name="uOrder" default="3">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="2"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NurbsSurfaceInterpolator/@vOrder
type restriction of SFInt32
properties
default 3
facets
Kind Value Annotation
minInclusive 2
source <xs:attribute name="vOrder" default="3">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="2"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NurbsSurfaceInterpolator/@weight
type MFDouble
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="weight" type="MFDouble"/>

attribute NurbsSurfaceInterpolator/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
