element TextureBackground

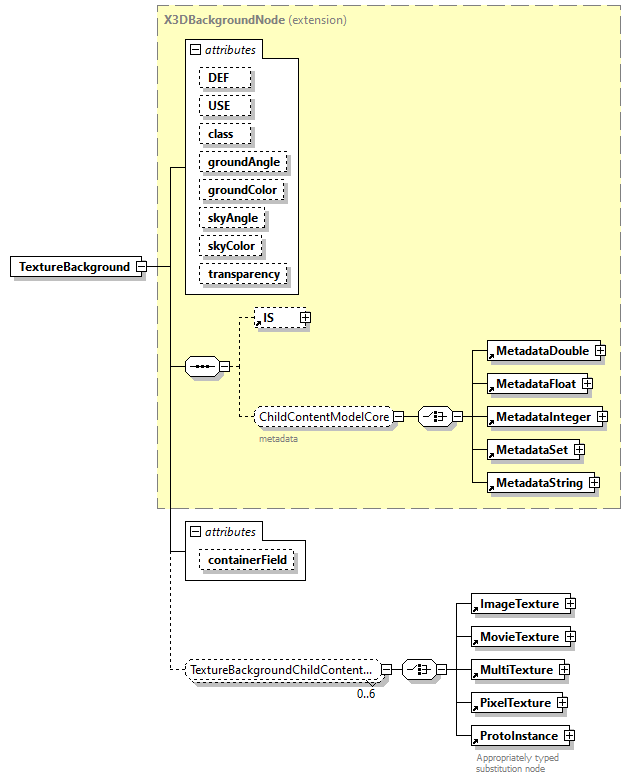

diagram x3d-3.0_diagrams/x3d-3.0_p128.png
type extension of X3DBackgroundNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture MovieTexture MultiTexture PixelTexture ProtoInstance
used by
group ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
groundAngle  MFFloat
appinfo
<xs:minInclusive value="0"/>
<xs:maxInclusive value="1.5708"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
groundColor  MFColor
skyAngle  MFFloat
appinfo
<xs:minInclusive value="0"/>
<xs:maxInclusive value="3.1416"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
skyColor  MFColor    0 0 0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Only one skyColor is required at level 1.
transparency  unitIntervalType    0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:element name="backTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>
<xs:element name="bottomTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>
<xs:element name="frontTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>
<xs:element name="leftTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>
<xs:element name="rightTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>
<xs:element name="topTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="TextureBackground">

<xs:annotation>

<xs:appinfo>

<xs:element name="backTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>

<xs:element name="bottomTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>

<xs:element name="frontTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>

<xs:element name="leftTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>

<xs:element name="rightTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>

<xs:element name="topTexture" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|MultiTexture"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/enveffects.html#TextureBackground"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DBackgroundNode">

<xs:group ref="TextureBackgroundChildContentModel" minOccurs="0" maxOccurs="6"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TextureBackground/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
