Package X3dForWebAuthors.Chapter14Prototypes

Class X3dArchitectureConceptsPrototypeBodyValidationExample

java.lang.Object

X3dForWebAuthors.Chapter14Prototypes.X3dArchitectureConceptsPrototypeBodyValidationExample

public class X3dArchitectureConceptsPrototypeBodyValidationExample
extends Object

Prototype example to illustrate why additional non-rendering nodes might be needed after first node in ProtoBody.

Related links: Catalog page X3dArchitectureConceptsPrototypeBodyValidationExample, source X3dArchitectureConceptsPrototypeBodyValidationExample.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	X3dArchitectureConceptsPrototypeBodyValidationExample.x3d
description	Prototype example to illustrate why additional non-rendering nodes might be needed after first node in ProtoBody
creator	*Don Brutzman
created	10 September 2021
version	19 September 2021

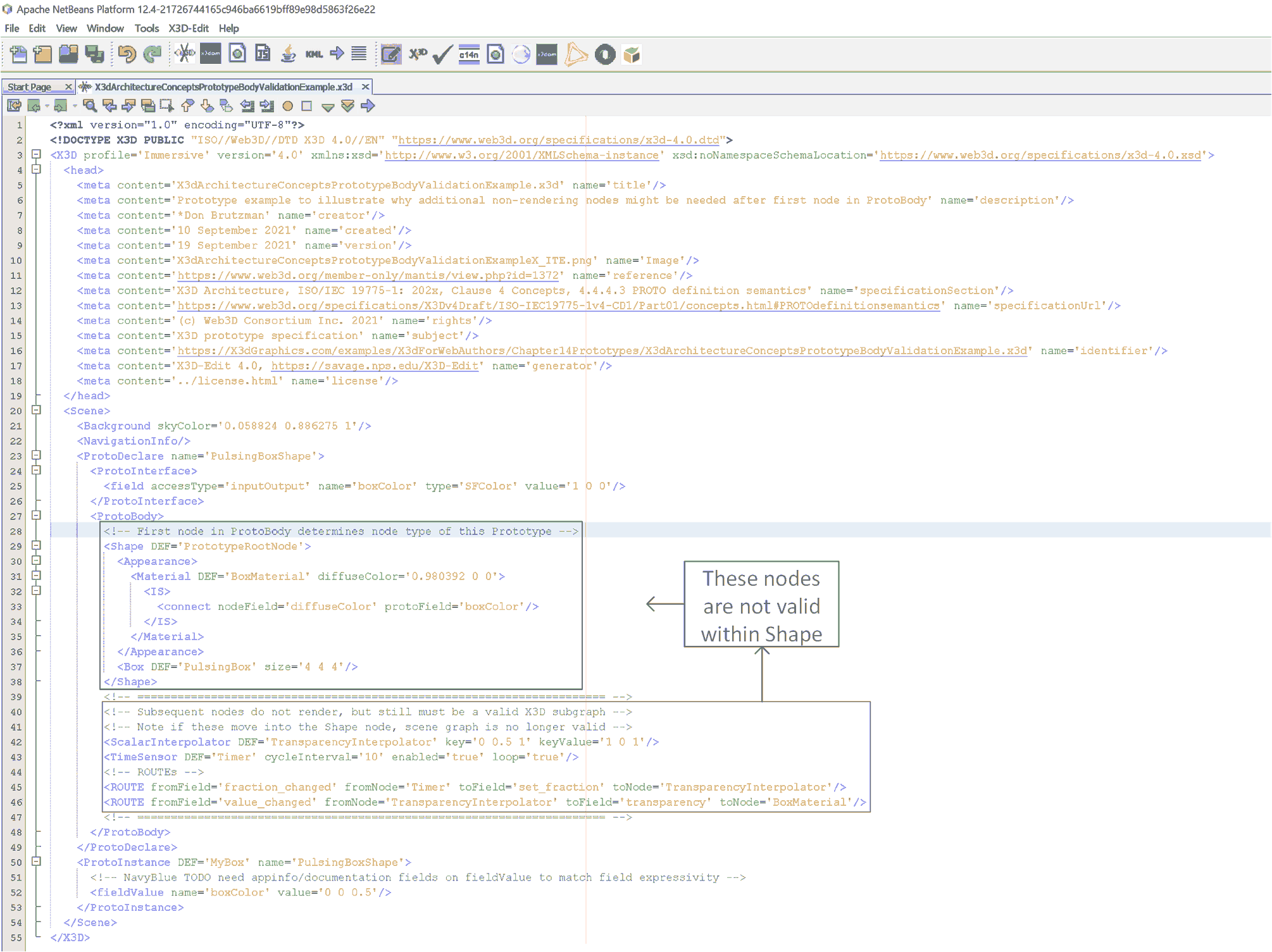

drawing	X3dArchitectureConceptsPrototypeBodyValidationDiagram.png
drawing	X3dArchitectureConceptsPrototypeBodyValidationDiagram.vsdx
Image	X3dArchitectureConceptsPrototypeBodyValidationExampleX_ITE.png
reference	https://www.web3d.org/member-only/mantis/view.php?id=1372
specificationSection	X3D Architecture, ISO/IEC 19775-1: 202x, Clause 4 Concepts, 4.4.4.3 PROTO definition semantics
specificationUrl	https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/concepts.html#PROTOdefinitionsemantics
rights	(c) Web3D Consortium Inc. 2021
subject	X3D prototype specification
identifier	https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter14Prototypes/X3dArchitectureConceptsPrototypeBodyValidationExample.x3d
generator	X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
X3dArchitectureConceptsPrototypeBodyValidationExample()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

X3dArchitectureConceptsPrototypeBodyValidationExample

public X3dArchitectureConceptsPrototypeBodyValidationExample()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

X3dArchitectureConceptsPrototypeBodyValidationExample model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
