Class Geometry2dComponentExamples

java.lang.Object
Basic.development.Geometry2dComponentExamples

public class Geometry2dComponentExamples
extends java.lang.Object

Examples showing native use of X3D Geometry2D component nodes (Arc2D ArcClose2D Circle2D Disk2D Polyline2D Polypoint2D Rectangle2D TriangleSet2D), implemented as prototypes for backwards compatibility with VRML 97. Also provides Unfilled ProtoInstance versions of some nodes since FillProperties not possible in VRML 97. 2D nodes are considered particularly helpful for CADPart geometry and building user interfaces such as Heads-Up Displays (HUDs).

Related links: Geometry2dComponentExamples.java source, Geometry2dComponentExamples catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title Geometry2dComponentExamples.x3d
description Examples showing native use of X3D Geometry2D component nodes (Arc2D ArcClose2D Circle2D Disk2D Polyline2D Polypoint2D Rectangle2D TriangleSet2D), implemented as prototypes for backwards compatibility with VRML 97. Also provides Unfilled ProtoInstance versions of some nodes since FillProperties not possible in VRML 97. 2D nodes are considered particularly helpful for CADPart geometry and building user interfaces such as Heads-Up Displays (HUDs).
creator Christos Kalogrias, Don Brutzman, Ken Curtin, Duane Davis
created 16 November 2003
modified 20 October 2019

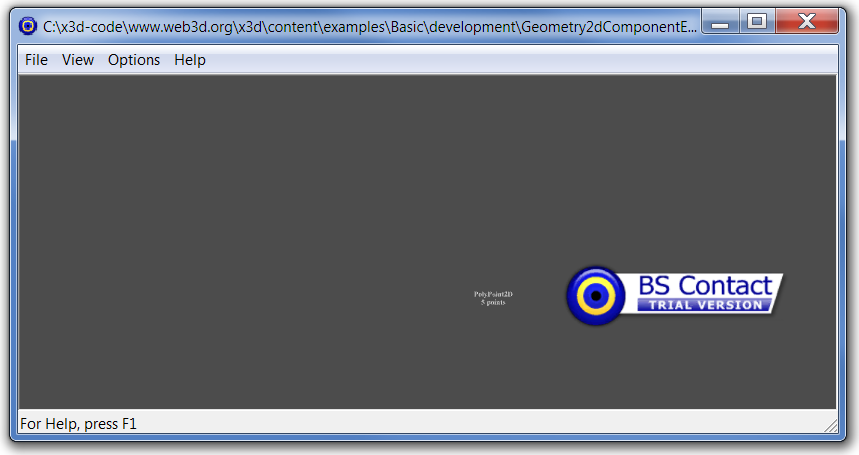

Image Geometry2dComponentExamplesBsContact.png

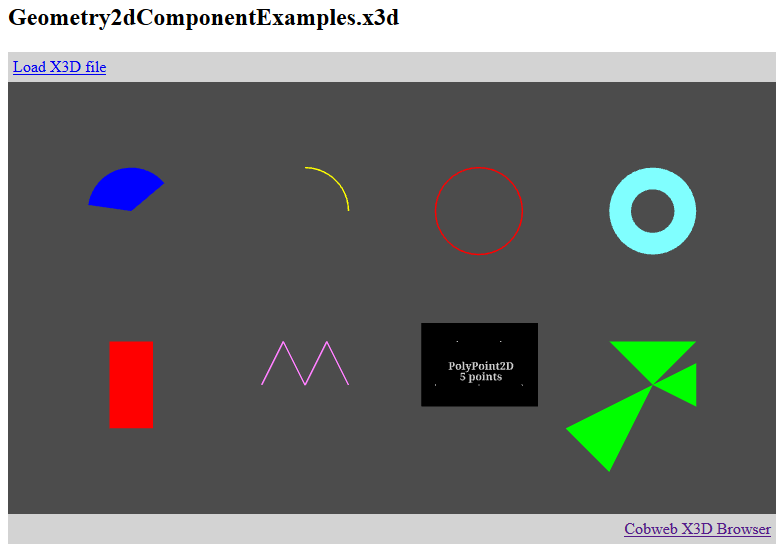

Image Geometry2dComponentExamplesCobweb.png

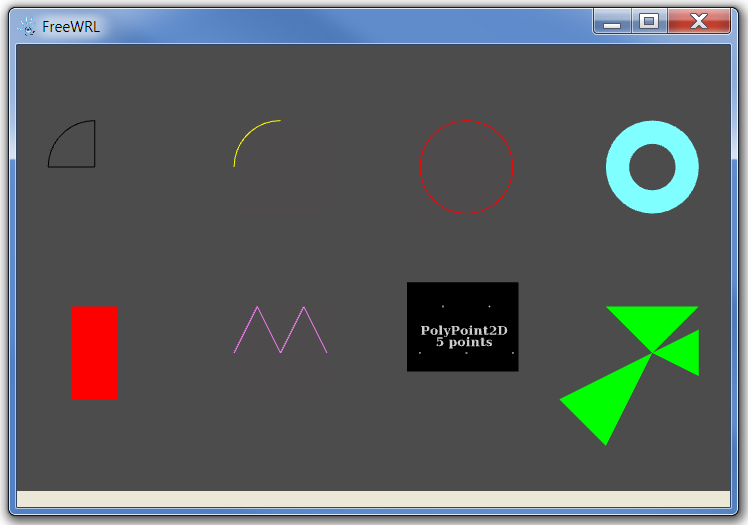

Image Geometry2dComponentExamplesFreeWRL.png

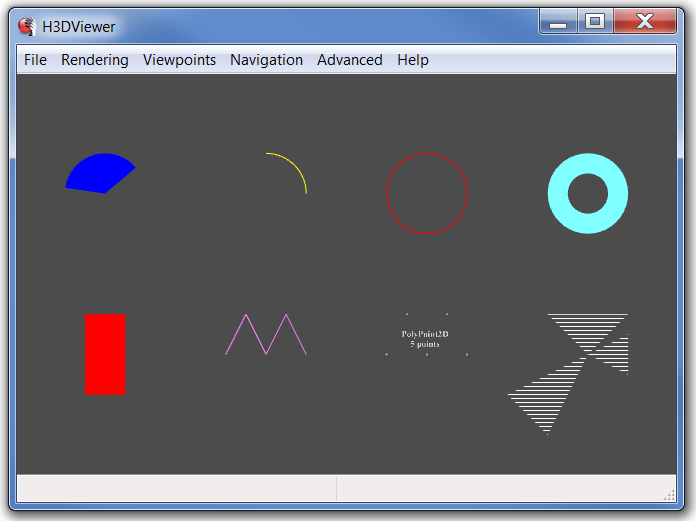

Image Geometry2dComponentExamplesH3dViewer.png

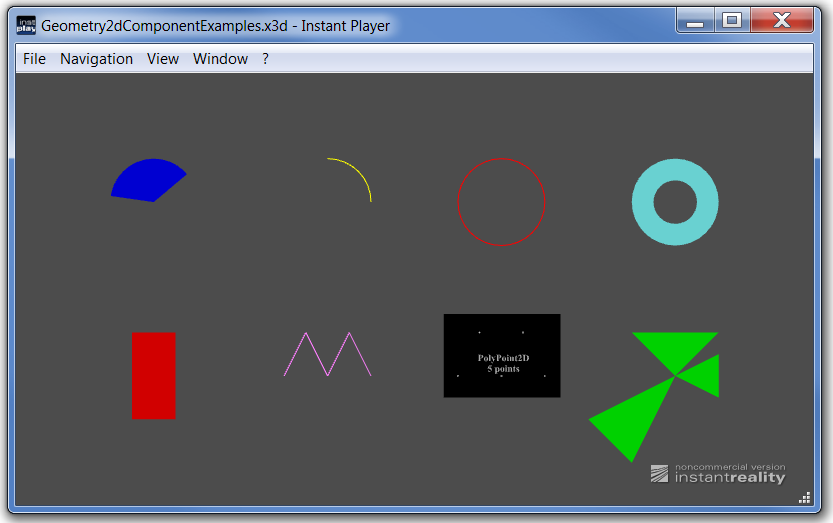

Image Geometry2dComponentExamplesInstantReality.png

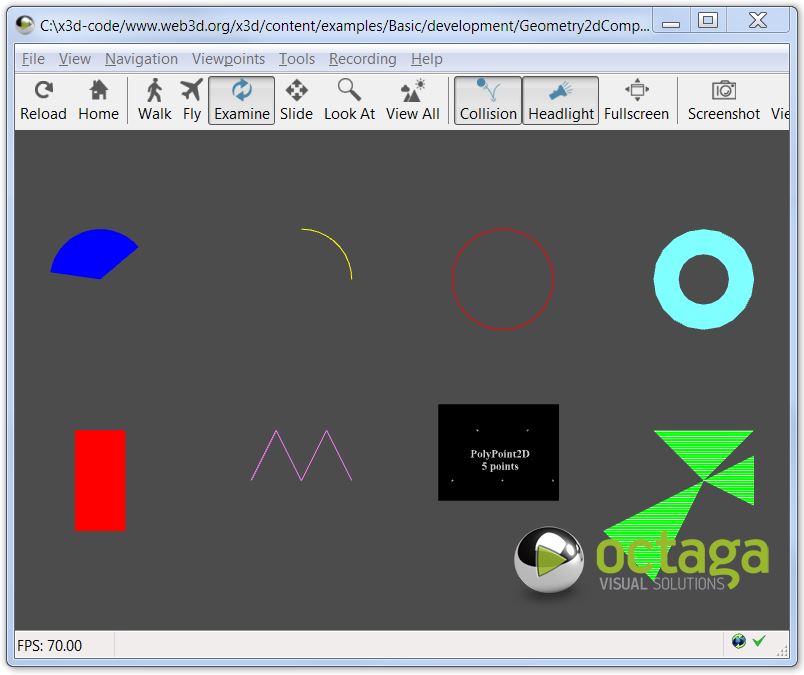

Image Geometry2dComponentExamplesOctagaVS.png
Image Geometry2dComponentExamplesView3dScene.png

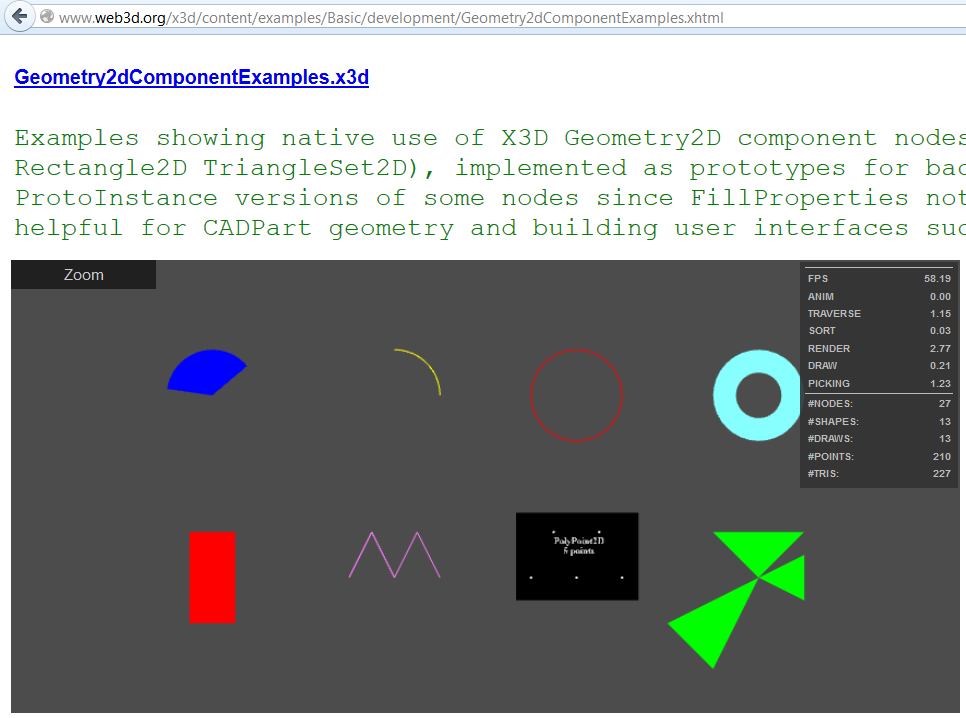

Image Geometry2dComponentExamplesX3DOM.png
reference Geometry2dComponentExternProtos.x3d
reference Geometry2dComponentPrototypes.x3d
reference https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geometry2D.html
subject Geometry2D component nodes (Arc2D ArcClose2D Circle2D Disk2D Polyline2D Polypoint2D Rectangle2D TriangleSet2D)
identifier https://www.web3d.org/x3d/content/examples/Basic/development/Geometry2dComponentExamples.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet to create Java source code from an .x3d model.

  • Constructor Summary

    Constructors
    Constructor Description
    Geometry2dComponentExamples()
    Default constructor to create this object.
  • Method Summary

    Modifier and Type Method Description
    org.web3d.x3d.jsail.Core.X3DObject getX3dModel()
    Provide a shallow copy of the X3D model.
    void initialize()
    Create and initialize the X3D model for this object.
    static void main​(java.lang.String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait
