element Rectangle2D

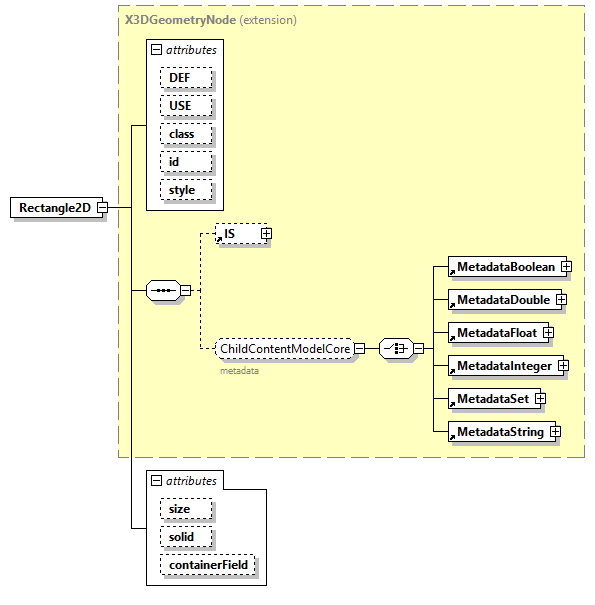

diagram x3d-4.0_p184.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group GeometryContentModel2DImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
size  SFVec2f    2 2
appinfo
<xs:minExclusive value="0"/>
solid  SFBool    false
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Geometry2D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Rectangle2D">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Geometry2D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geometry2D.html#Rectangle2D"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:attribute name="size" type="SFVec2f" default="2 2">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="solid" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Rectangle2D/@size
type SFVec2f
properties
default 2 2
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
annotation
appinfo
<xs:minExclusive value="0"/>
source <xs:attribute name="size" type="SFVec2f" default="2 2">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Rectangle2D/@solid
type SFBool
properties
default false
source <xs:attribute name="solid" type="SFBool" default="false"/>

attribute Rectangle2D/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
