element MetadataSet

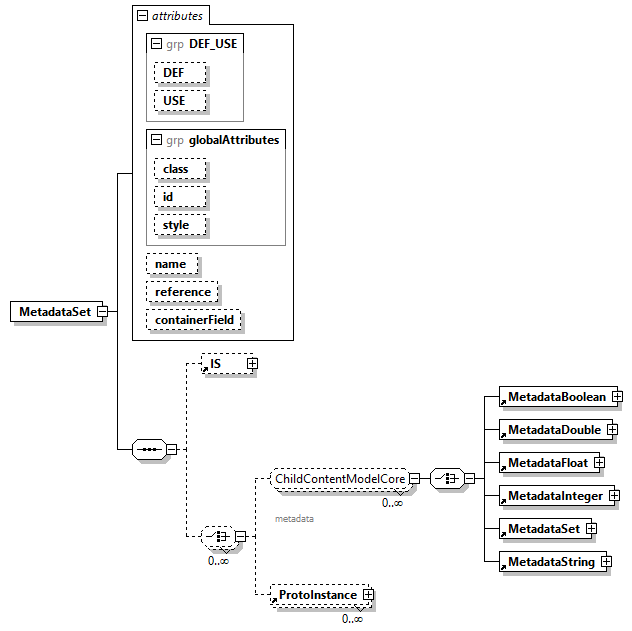

diagram x3d-4.0_p129.png
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ProtoInstance
used by
element XvlShell
group ChildContentModelCore
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
name  SFString
appinfo
name attribute is required, unless this is a USE node
reference  SFString
containerField  xs:NMTOKEN    metadata
appinfo
Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.
annotation
appinfo

The metadata provided by this node is contained in the metadata nodes of the value field.
<xs:element name="value" type="MFNode" fixed="inputOutputField" default="X3DMetadataObject"/>
<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DNode"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DMetadataObject"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="MetadataSet">

<xs:annotation>

<xs:appinfo>
The metadata provided by this node is contained in the metadata nodes of the value field.
<xs:element name="value" type="MFNode" fixed="inputOutputField" default="X3DMetadataObject"/>

<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DNode"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DMetadataObject"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/core.html#MetadataSet"/>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="IS" minOccurs="0"/>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:group ref="ChildContentModelCore" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="ProtoInstance" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

</xs:sequence>

<xs:attributeGroup ref="DEF_USE"/>

<xs:attributeGroup ref="globalAttributes"/>

<xs:attribute name="name" type="SFString">

<xs:annotation>

<xs:appinfo>name attribute is required, unless this is a USE node </xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes fail to validate -->

</xs:annotation>

</xs:attribute>

<xs:attribute name="reference" type="SFString"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="metadata">

<xs:annotation>

<xs:appinfo>Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.</xs:appinfo>

</xs:annotation>

</xs:attribute>

<!-- TODO: both X3DMetadataObject and MetadataSet need to allow optional child Metadata nodes, so child model content has to be combined to avoid collisions. -->

<!-- TODO:  see X3DMetadataObject definition for potential change to X3DMetadataNode. -->

</xs:complexType>
</xs:element>

attribute MetadataSet/@name
type SFString
annotation
appinfo
name attribute is required, unless this is a USE node
source <xs:attribute name="name" type="SFString">

<xs:annotation>

<xs:appinfo>name attribute is required, unless this is a USE node </xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes fail to validate -->

</xs:annotation>
</xs:attribute>

attribute MetadataSet/@reference
type SFString
source <xs:attribute name="reference" type="SFString"/>

attribute MetadataSet/@containerField
type xs:NMTOKEN
properties
default metadata
annotation
appinfo
Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="metadata">

<xs:annotation>

<xs:appinfo>Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.</xs:appinfo>

</xs:annotation>
</xs:attribute>
