element PointProperties

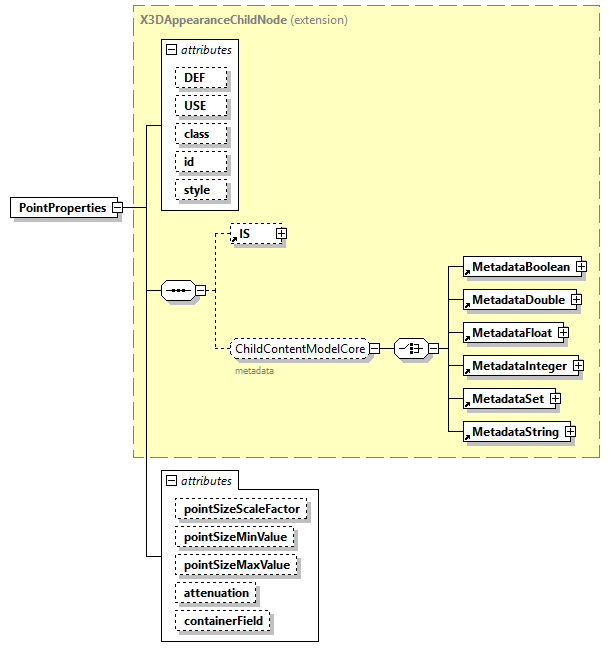

diagram x3d-4.0_diagrams/x3d-4.0_p182.png
type extension of X3DAppearanceChildNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group AppearanceChildContentModelNoProtoInstance
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

pointSizeScaleFactor  derived by: SFFloat    1
pointSizeMinValue  derived by: SFFloat    1
pointSizeMaxValue  derived by: SFFloat    1
attenuation  derived by: SFVec3f    1 0 0
containerField  xs:NMTOKEN    pointProperties
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>
source <xs:element name="PointProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>

</xs:appinfo>

<xs:documentation source="https://github.com/Web3DConsortium/X3D/blob/master/ISO-IEC19775/ISO-IEC19775-1/ISO-IEC19775-1v4.0/ISO-IEC19775-1v4-WD1/Part01/components/shape.html"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DAppearanceChildNode">

<xs:attribute name="pointSizeScaleFactor" default="1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="pointSizeMinValue" default="1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="pointSizeMaxValue" default="1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="attenuation" default="1 0 0">

<xs:simpleType>

<xs:annotation>

<xs:appinfo>3-tuple with non-negative values</xs:appinfo>

</xs:annotation>

<xs:restriction base="SFVec3f">

<xs:whiteSpace value="collapse"/>

<xs:pattern value="\s*(([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="pointProperties"/>

</xs:extension>

<!-- Mantis 1393, remove PointProperties markertype, deferred to X3D4.1

<xs:attribute name="markerType" type="markerTypeValues" default="1"/> -->

<!--<xs:attribute name="colorMode" type="colorModeChoices" default="TEXTURE_AND_POINT_COLOR"/> -->

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute PointProperties/@pointSizeScaleFactor
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minInclusive 1
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="pointSizeScaleFactor" default="1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute PointProperties/@pointSizeMinValue
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minInclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="pointSizeMinValue" default="1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute PointProperties/@pointSizeMaxValue
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minInclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="pointSizeMaxValue" default="1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute PointProperties/@attenuation
type restriction of SFVec3f
properties
default 1 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="attenuation" default="1 0 0">

<xs:simpleType>

<xs:annotation>

<xs:appinfo>3-tuple with non-negative values</xs:appinfo>

</xs:annotation>

<xs:restriction base="SFVec3f">

<xs:whiteSpace value="collapse"/>

<xs:pattern value="\s*(([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute PointProperties/@containerField
type xs:NMTOKEN
properties
default pointProperties
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="pointProperties"/>
