element PointSet

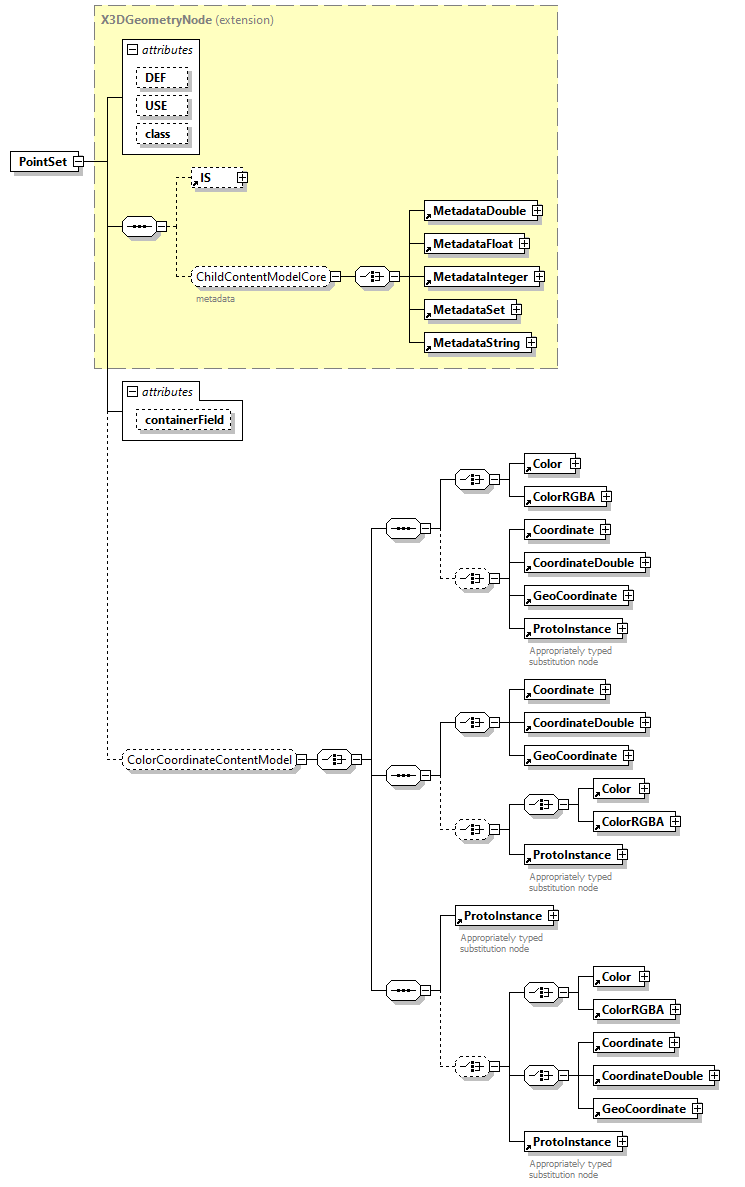

diagram x3d-3.0_diagrams/x3d-3.0_p102.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Color ColorRGBA Coordinate CoordinateDouble GeoCoordinate ProtoInstance
used by
group GeometryContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<!-- attrib attribute appears in X3D version 3.1 -->
<xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>
<xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>
<!-- fogCoord attribute added in X3D version 3.1 -->
<!-- normal added in X3D version 4.0 -->
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="PointSet">

<xs:annotation>

<xs:appinfo>

<!-- attrib attribute appears in X3D version 3.1 -->

<xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>

<xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>

<!-- fogCoord attribute added in X3D version 3.1 -->

<!-- normal added in X3D version 4.0 -->

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#PointSet"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:group ref="ColorCoordinateContentModel" minOccurs="0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute PointSet/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
