element Color

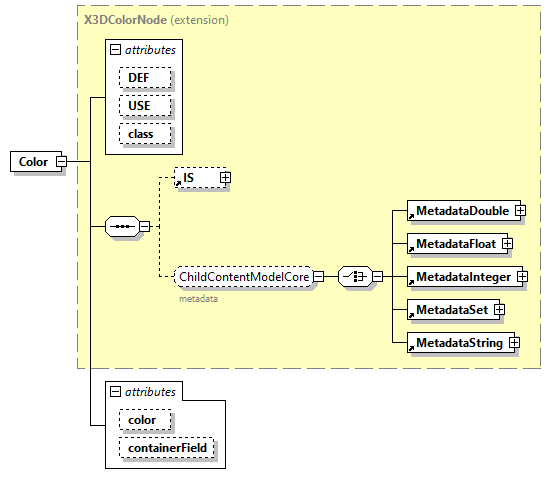

diagram x3d-3.0_diagrams/x3d-3.0_p15.png
type extension of X3DColorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
groups ColorCoordinateContentModel ColorCoordinateNormalTexCoordContentModel ColorNormalTexCoordContentModel SceneGraphFragmentContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
color  MFColor
containerField  containerFieldChoicesColor    color
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Color">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#Color"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DColorNode">

<xs:attribute name="color" type="MFColor"/>

<xs:attribute name="containerField" type="containerFieldChoicesColor" default="color"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Color/@color
type MFColor
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*((([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)+){2}([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="color" type="MFColor"/>

attribute Color/@containerField
type containerFieldChoicesColor
properties
default color
facets
Kind Value Annotation
enumeration color
appinfo
parent node is a geometry node
enumeration colorRamp
appinfo
parent node is ParticleSystem
source <xs:attribute name="containerField" type="containerFieldChoicesColor" default="color"/>
