Class InlineExport

java.lang.Object
Basic.X3dSpecifications.InlineExport
public class InlineExport extends Object

X3D encodings example: demonstrate reuse and adaptation of content instances through Inline IMPORT, EXPORT statements. This scene does not animate, see InlineImport.x3d for selective animation of scene subgraph EXPORT localDEF=T1 AS=RootTransform.

Related links: Catalog page InlineExport, source InlineExport.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title InlineExport.x3d
description X3D encodings example: demonstrate reuse and adaptation of content instances through Inline IMPORT, EXPORT statements. This scene does not animate, see InlineImport.x3d for selective animation of scene subgraph EXPORT localDEF=T1 AS=RootTransform
creator Don Brutzman
created 27 May 2024
modified 19 January 2025
Image InlineImportInlineExportAnimation.png
drawing InlineImportInlineExportAnimation.vsdx

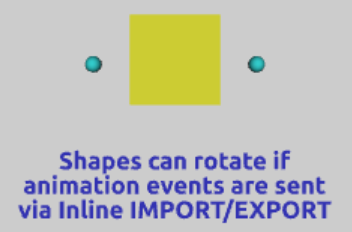

Image InlineExport.png
reference InlineImport.x3d
specificationSection X3D Architecture version 4.0 ISO/IEC 19775-1, clause 4 Concepts, 4.4.6 Import/Export semantics
specificationUrl https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/concepts.html#ImportExportsemantics
specificationSection X3D encodings, ISO/IEC 19776-1, Part 1: XML encoding, clause 4.3.2.6 EXPORT/IMPORT statement syntax
specificationUrl https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19776-1v4.0-WD1/Part01/concepts.html#EXPORT_IMPORT_StatementSyntax
specificationSection X3D encodings, ISO/IEC 19776-2, Part 1: ClassicVRML encoding, clause 4.3.2.6 EXPORT/IMPORT statement syntax
specificationUrl https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19776-2v4.0-WD1/Part02/concepts.html#EXPORT_IMPORT_StatementSyntax
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
identifier https://www.web3d.org/x3d/content/examples/Basic/X3dSpecifications/InlineExport.x3d
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Summary

    Constructors
    Constructor
    Description
    InlineExport()
    Default constructor to create this object.

  • Method Summary

    Modifier and Type
    Method
    Description
    org.web3d.x3d.jsail.Core.X3D
    getX3dModel()
    Provide a shallow copy of the X3D model.
    final void
    initialize()
    Create and initialize the X3D model for this object.
    static void
    main(String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Constructor Details

    • InlineExport

      public InlineExport()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      InlineExport model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
