VRML 2 Sourcebook X3D Examples Archive, Chapter 16 Color

X3D Example Archives: VRML 2 Sourcebook, Chapter 16 Color

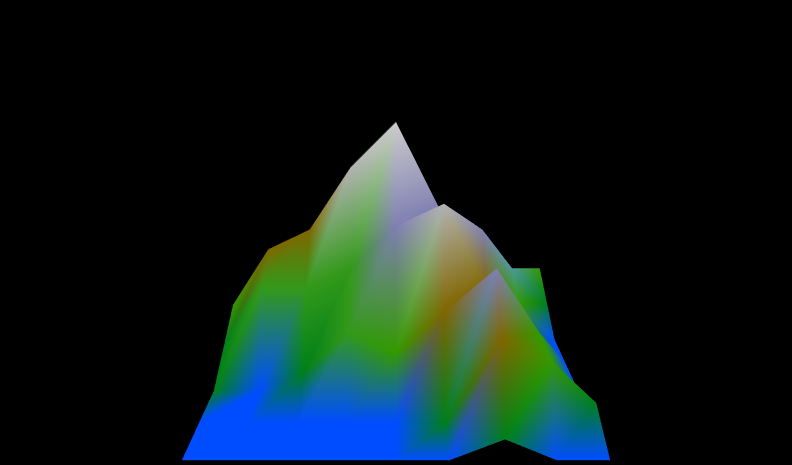

Figure 16.7 Vertex Colored Elevation Grid Mountain

The Color node lists Red-Green-Blue (RGB) colors to use for rendering points in a geometric shape.

Color indexes select colors to use at each vertex. Colors override any accompanying Material node. The colorPerVertex field selects color per line/face/grid square or else color per coordinate.

These X3D scenes are adapted directly from the original VRML 2.0 Sourcebook chapter examples. Also available: Introduction to VRML97 SIGGRAPH98 course notes.

10 X3D Models		X3D Model Descriptions
	Figure 16 1 Colored Point Set Scatter Plot	A scatter plot with the points colored using colors from a Color node.
	Figure 16 2 Colored Lines Plot	A line plot with the polylines colored using colors from a Color node.
	Figure 16 3 Colored Lines Starburst	A star burst of lines colored using colors from a Color node, select second viewpoint for animation.
	Figure 16 3 Colored Lines Starburst With Axes	A line plot with the polylines colored using colors from a ColorNode.
	Figure 16 4 Colored Book Faces	A book with its faces individually colored using colors from a ColorNode.
	Figure 16 4 Colored Book Faces With Axes	A book with its faces individually colored using colors from a Color node.
	Figure 16 5 Log Fire Colored Faces	A log and fire using faces colored vertex-by-vertex with colors from a ColorNode.
	Figure 16 5 Log Fire Colored Faces With Axes	A log and fire using faces colored vertex-by-vertex with colors from a Color node.
	Figure 16 6 Colored Elevation Grid Checkerboard	A checkerboard built using elevation-grid squares and colored using colors from a Color node.
	Figure 16 7 Vertex Colored Elevation Grid Mountain	A mountain built using ElevationGrid points and colored vertex-by-vertex using colors from a Color node. Compare Figure14_2ElevationGridMountain.x3d, Figure16_7VertexColoredElevationGridMountain.x3d and Figure17_08bTexturedElevationGridMountain.x3d

The X3D Resources: Examples page and X3D Developers Guide provide more information about the production of this archive.
