Class rotation_primitives

java.lang.Object
ConformanceNist.Appearance.TextureTransform.rotation_primitives

public class rotation_primitives
extends java.lang.Object

Test rotation field for ImageTexture mapping to primitive geometry. Test browser ability to apply rotations of (left to right) -180, -90, +45, 90 and 180 degrees to an ImageTexture mapped to the faces of primitive geometry, mapping with mapping rules. The result is (for all geometry faces): the first column of geometry should show the VTS logo upside-down and spelling to the left for all faces. The second column of geometry should map the VTS logo with the positive horizontal direction pointing up, and the positive vertical axis pointing left. The third column should map the VTS logo right side up, on a downward 45 degree angle. The fourth column should map the VTS logo vertically downward, with the +T direction to the right. The fifth column should be identical to column #1.

Related links: rotation_primitives.java source, rotation_primitives catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title rotation_primitives.x3d

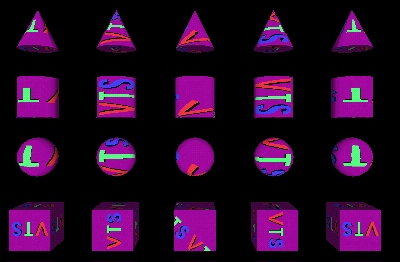

Image rotation_primitives-front.jpg

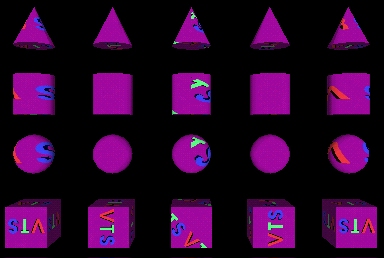

Image rotation_primitives-rear.jpg

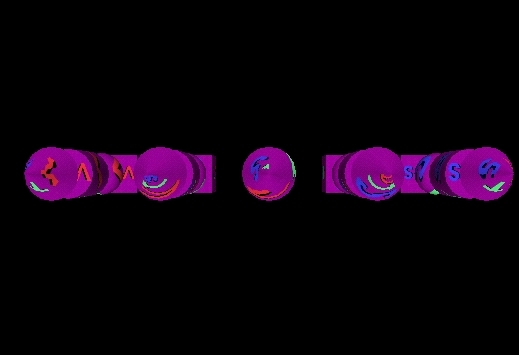

Image rotation_primitives-top.jpg
Image rotation_primitives-bottom.jpg

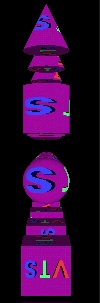

Image rotation_primitives-left.jpg
Image rotation_primitives-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 20 October 2019
description Test rotation field for ImageTexture mapping to primitive geometry. Test browser ability to apply rotations of (left to right) -180, -90, +45, 90 and 180 degrees to an ImageTexture mapped to the faces of primitive geometry, mapping with mapping rules. The result is (for all geometry faces): the first column of geometry should show the VTS logo upside-down and spelling to the left for all faces. The second column of geometry should map the VTS logo with the positive horizontal direction pointing up, and the positive vertical axis pointing left. The third column should map the VTS logo right side up, on a downward 45 degree angle. The fourth column should map the VTS logo vertically downward, with the +T direction to the right. The fifth column should be identical to column #1.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/rotation_primitives.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet to create Java source code from an .x3d model.

  • Constructor Summary

    Constructors
    Constructor Description
    rotation_primitives()
    Default constructor to create this object.
  • Method Summary

    Modifier and Type Method Description
    org.web3d.x3d.jsail.Core.X3D getX3dModel()
    Provide a shallow copy of the X3D model.
    void initialize()
    Create and initialize the X3D model for this object.
    static void main​(java.lang.String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait
