Package ConformanceNist.Appearance.FontStyle

Class default_fontstyle

java.lang.Object
ConformanceNist.Appearance.FontStyle.default_fontstyle
public class default_fontstyle extends Object

Test default FontStyle rendering. A FontStyle node with default values for all of its fields is used to render three lines of a Text geometry. Horizontal lines in this world are spaced 1 unit apart. The green lines represent the X and Y axes of the local coordinate system. With a default "family" value of SERIF, the text should be be a SERIF family font. With "horizontal" equal to true, the text should be parallel to the X axis, and advance in the positive X direction. With "justify" = [BEGIN,"FIRST"], the text should be justified at the left edge of the line. With "leftToRight" = true, text should advance in a "left to right" direction along the major (X) axis. With a default font "size" of 1, the nominal font "glyph" height should be 1 unit in the local coordinate system. This corresponds to the distance between successive horizontal lines in this world. With a default font "spacing" of 1, the distance between the base of two succesive Text lines should be 1 unit in the local coordinate system. With a default "style" of PLAIN, the text should not appear bold, or italic, or bold and italic. With a default "topToBottom" value of true, successive lines of text should advance from top to bottom along the minor (Y) axis.

Related links: default_fontstyle.java source, default_fontstyle catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title default_fontstyle.x3d
Image default-front.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023

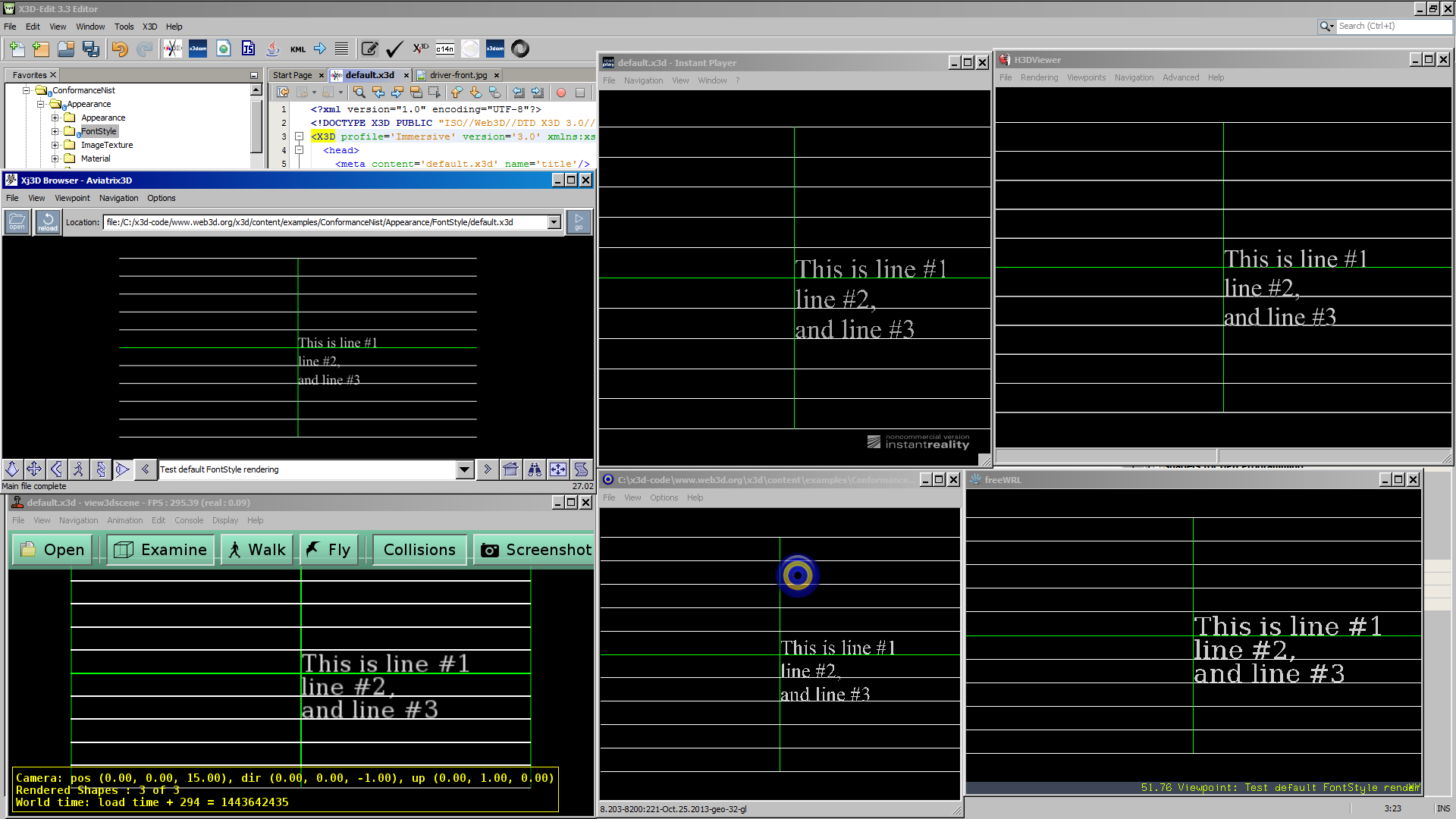

Image ConformanceNistAppearanceFontStyleDefaultDefaultMultipleBrowsers.png
description Test default FontStyle rendering. A FontStyle node with default values for all of its fields is used to render three lines of a Text geometry. Horizontal lines in this world are spaced 1 unit apart. The green lines represent the X and Y axes of the local coordinate system. With a default "family" value of SERIF, the text should be be a SERIF family font. With "horizontal" equal to true, the text should be parallel to the X axis, and advance in the positive X direction. With "justify" = [BEGIN,"FIRST"], the text should be justified at the left edge of the line. With "leftToRight" = true, text should advance in a "left to right" direction along the major (X) axis. With a default font "size" of 1, the nominal font "glyph" height should be 1 unit in the local coordinate system. This corresponds to the distance between successive horizontal lines in this world. With a default font "spacing" of 1, the distance between the base of two succesive Text lines should be 1 unit in the local coordinate system. With a default "style" of PLAIN, the text should not appear bold, or italic, or bold and italic. With a default "topToBottom" value of true, successive lines of text should advance from top to bottom along the minor (Y) axis.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/FontStyle/default_fontstyle.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Summary

    Constructors
    Constructor
    Description
    default_fontstyle()
    Default constructor to create this object.

  • Method Summary

    Modifier and Type
    Method
    Description
    org.web3d.x3d.jsail.Core.X3D
    getX3dModel()
    Provide a shallow copy of the X3D model.
    final void
    initialize()
    Create and initialize the X3D model for this object.
    static void
    main(String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Constructor Details

    • default_fontstyle

      public default_fontstyle()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      default_fontstyle model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
