Package Basic.course

Class ModelOrientation

java.lang.Object
Basic.course.ModelOrientation
public class ModelOrientation extends Object

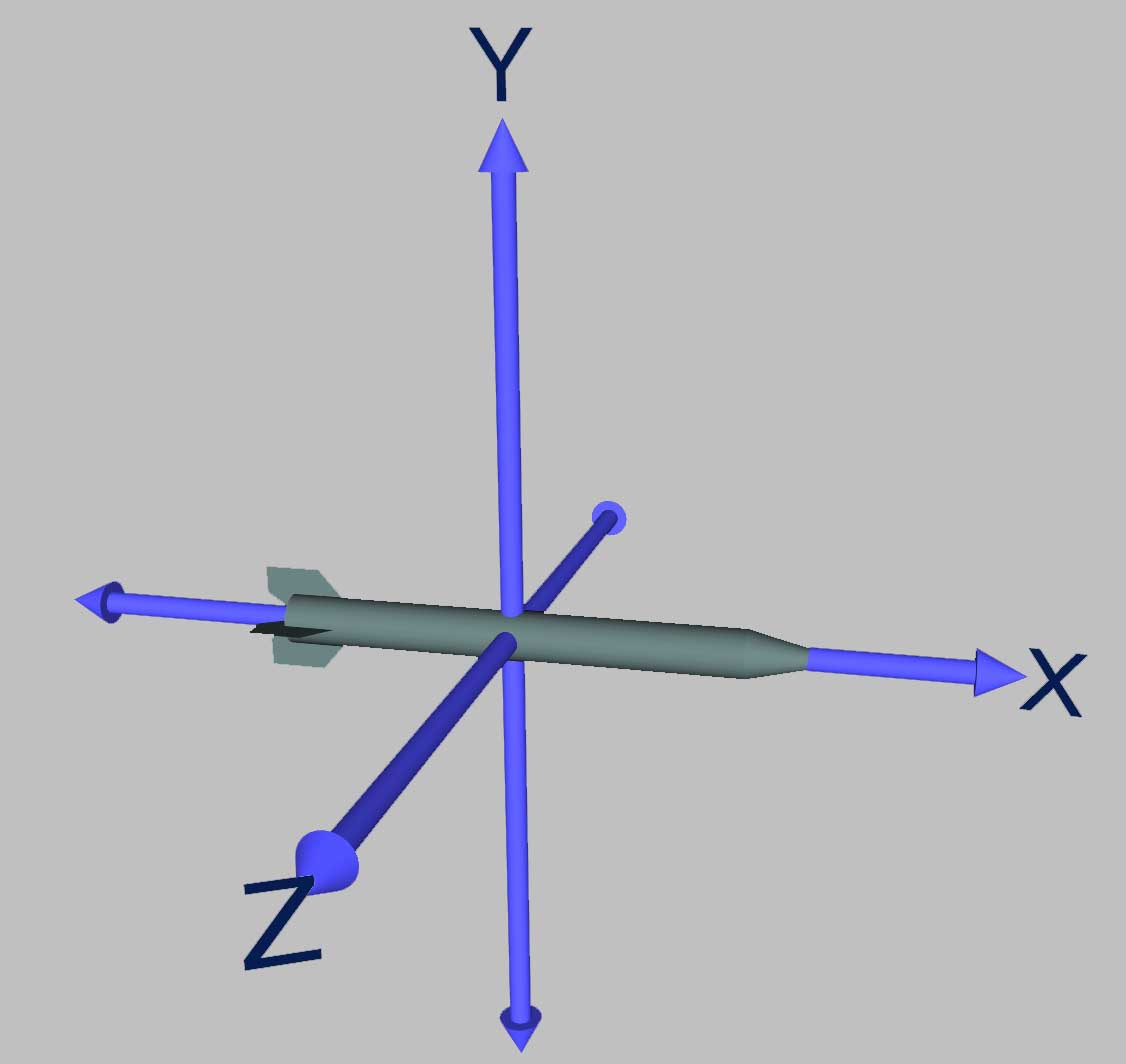

X Y Z axis arrows and labels of X3D coordinate system to illustrate default entity center of gravity at 0 0 0, with default nose orientation pointing along the +X-axis. Ground vehicles have their position raised to allow bottom to touch the ground.

Related links: ModelOrientation.java source, ModelOrientation catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title ModelOrientation.x3d
creator Jeffrey Weekley
created 15 July 2003
modified 20 October 2019
description X Y Z axis arrows and labels of X3D coordinate system to illustrate default entity center of gravity at 0 0 0, with default nose orientation pointing along the +X-axis. Ground vehicles have their position raised to allow bottom to touch the ground.
Image ModelOrientation.jpg
reference ../X3dSceneAuthoringHints.html#CoordinateSystems
identifier https://www.web3d.org/x3d/content/examples/Basic/course/ModelOrientation.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) is used to create Java source code from an original .x3d model.

  • Constructor Summary

    Constructors
    Constructor
    Description
    ModelOrientation()
    Default constructor to create this object.

  • Method Summary

    Modifier and Type
    Method
    Description
    org.web3d.x3d.jsail.Core.X3D
    getX3dModel()
    Provide a shallow copy of the X3D model.
    final void
    initialize()
    Create and initialize the X3D model for this object.
    static void
    main(String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Constructor Details

    • ModelOrientation

      public ModelOrientation()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      ModelOrientation model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
