Package Basic.NURBS

Class HoleSmallOffset

java.lang.Object
Basic.NURBS.HoleSmallOffset

public class HoleSmallOffset
extends java.lang.Object

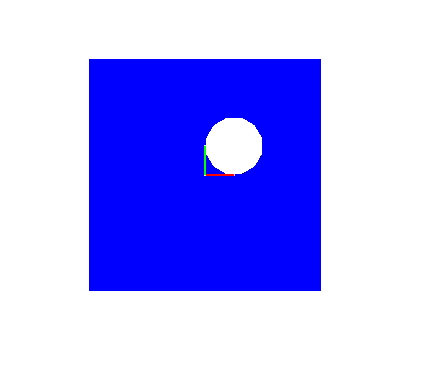

A NurbsTrimmedSurface node rendering a square centered on the origin in the x-y plane; with sides 8 units length. A trimming curve is used to cut out a circle of radius 1 unit centered at the point (x,y)=(1,1) . Red (x), Green (y) and Blue (z) line segments represent the x-y-z unit axes.

Related links: HoleSmallOffset.java source, HoleSmallOffset catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title HoleSmallOffset.x3d
description A NurbsTrimmedSurface node rendering a square centered on the origin in the x-y plane; with sides 8 units length. A trimming curve is used to cut out a circle of radius 1 unit centered at the point (x,y)=(1,1) . Red (x), Green (y) and Blue (z) line segments represent the x-y-z unit axes.
Image HoleSmallOffset.jpg
creator Vincent Marchetti
created 10 February 2012
modified 20 October 2019
Image images/HoleSmallOffsetInstantReality.png
Image images/HoleSmallOffsetXj3D.png
reference http://www.kshell.com/pages/trimmed_nurbs_demo
identifier https://www.web3d.org/x3d/content/examples/Basic/NURBS/HoleSmallOffset.x3d
generator Python language scripting
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet to create Java source code from an .x3d model.

  • Constructor Summary

    Constructors
    Constructor Description
    HoleSmallOffset()
    Default constructor to create this object.
  • Method Summary

    Modifier and Type Method Description
    org.web3d.x3d.jsail.Core.X3D getX3dModel()
    Provide a shallow copy of the X3D model.
    void initialize()
    Create and initialize the X3D model for this object.
    static void main​(java.lang.String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait
